D-100 Dual Network Interface Installation Guide 03/18 - 1015-2 / 35094 Page 11

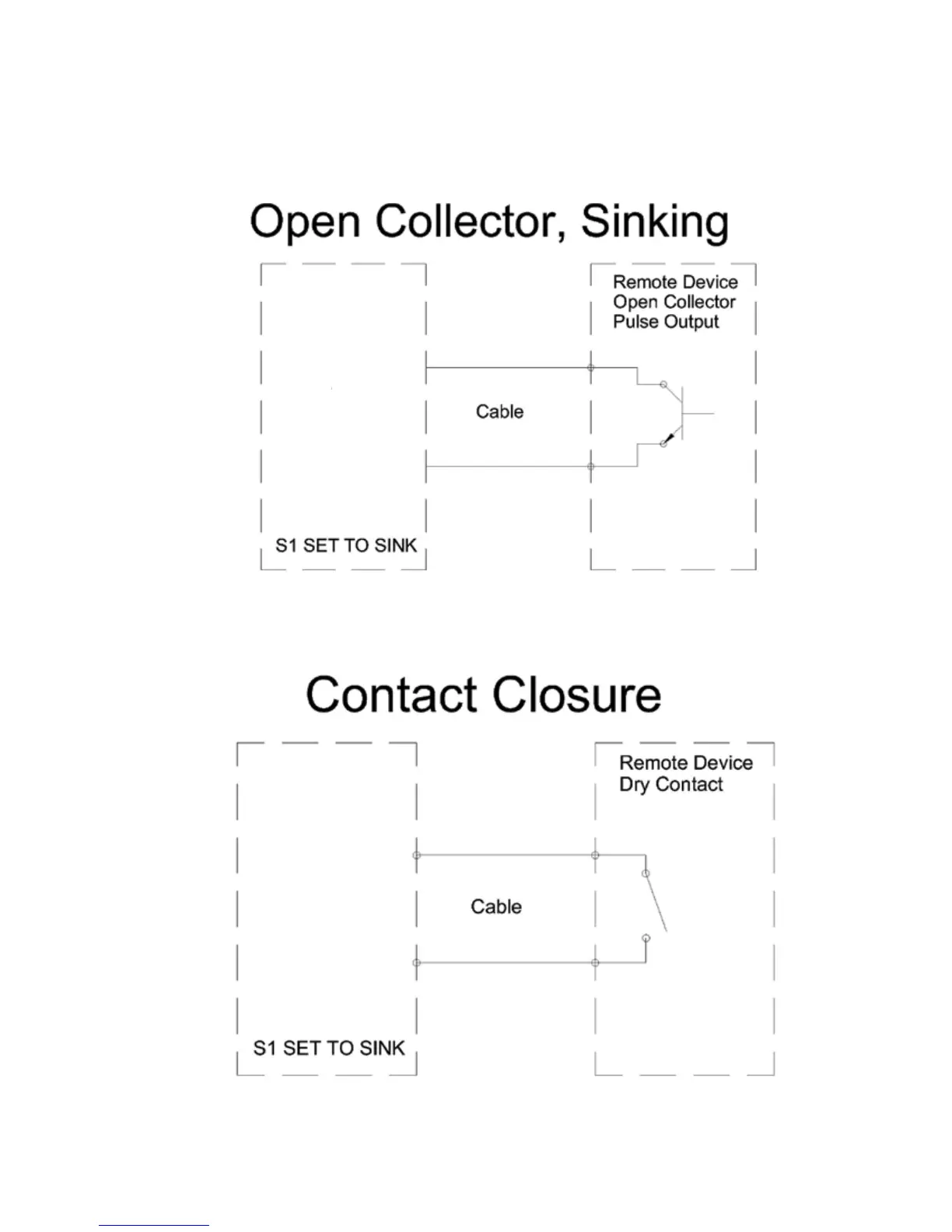

Open Collector Sinking or Dry Contact:
This type of output refers to an open collector switch congured in a current sinking
arrangement or a dry contact switch (see Fig. 4 and 5). Set the selector switch, S1 to Sink.
In either case, the switch must be rated for at least 20 mA at 20 VDC.
Fig. 4
Fig. 5
Di3 In (+)
Di3 In (-)
Di3 In (+)
Di3 In (-)
ONICON
Flow Display
ONICON
Flow Display
