D-100 Dual Network Interface Installation Guide 03/18 - 1015-2 / 35094 Page 6
1.4 PROTOCOL SELECTION
The D-100 Dual Network Flow Display is provided with an IP connection and a single RS485
connection. Both MODBUS TCP/IP and BACnet UDP/IP are always available from the IP
connection via a single IPv4 IP address. The RS485 connection can be congured for BACnet
MS/TP or MODBUS RTU. The protocol options are selected via dip switch settings. The table
below identies the dip switch settings for each protocol. The switch settings also control
which network is allowed to remotely reset totals on the network.

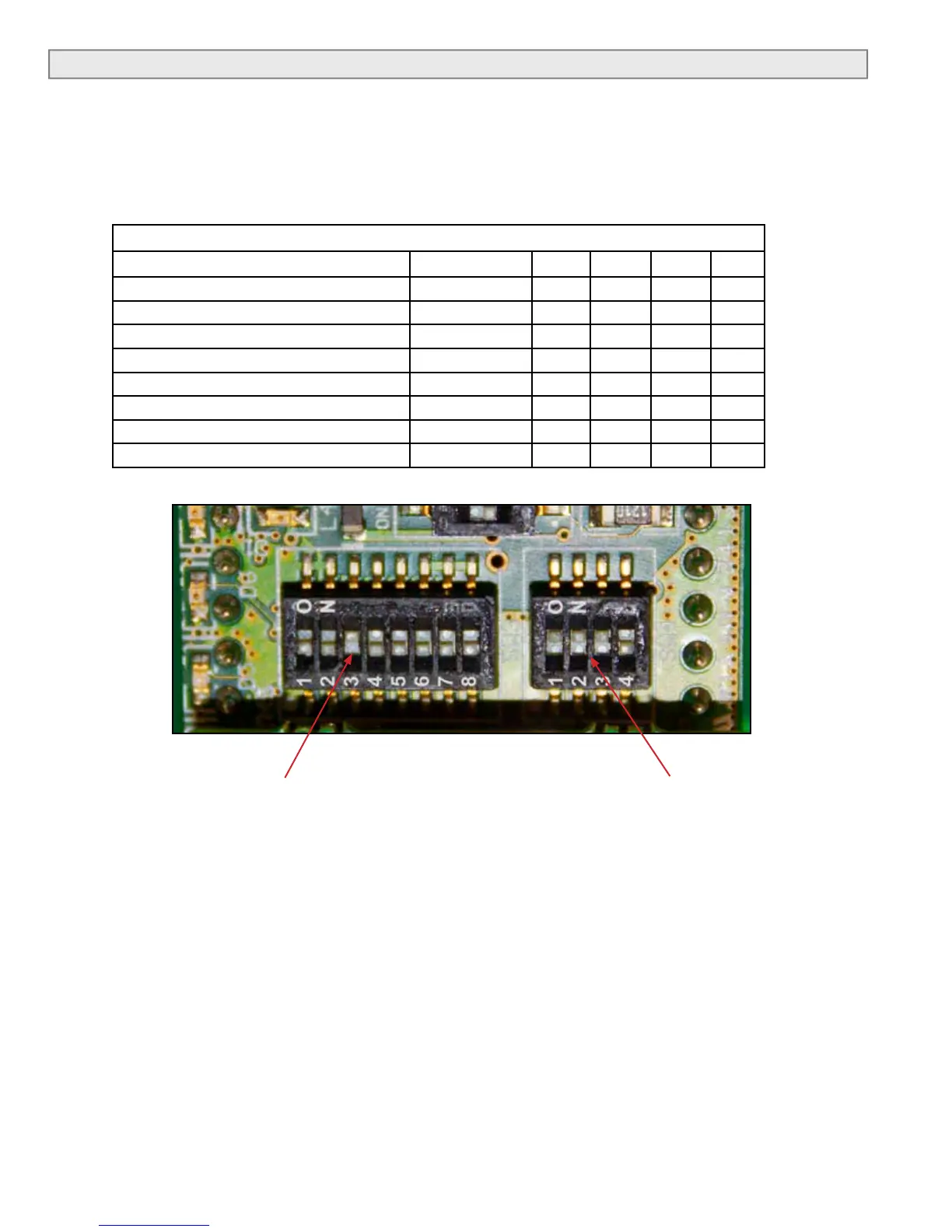

Dip switch SW3 Protocol selection and reset function settings
Protocols Reset 1 2 3 4
BACnet IP/Modbus TCP/Modbus RTU None O󰀨 O󰀨 O󰀨 O󰀨
BACnet IP/Modbus TCP/Modbus RTU BACnet IP On O󰀨 O󰀨 O󰀨
BACnet IP/Modbus TCP/Modbus RTU Modbus TCP O󰀨 On O󰀨 O󰀨
BACnet IP/Modbus TCP/Modbus RTU Modbus RTU On On O󰀨 O󰀨
BACnet IP/Modbus TCP/BACnet MSTP None O󰀨 O󰀨 On O󰀨
BACnet IP/Modbus TCP/BACnet MSTP BACnet IP On O󰀨 On O󰀨
BACnet IP/Modbus TCP/BACnet MSTP Modbus TCP O󰀨 On On O󰀨
BACnet IP/Modbus TCP/BACnet MSTP BACnet MS/TP On On On O󰀨
Baud Rate Dip
Switches
(See Section 1.6.1)
Protocol Selection
Switches
