Onicon FT-3500 User Manual

FT
-
3500 ELECTROMAGNETIC FLOW METER
ONICON Incorporated 727.447.6140 Page 7 onicon.com
NETWORK CONFIGURATION &
ADDRESSING
BACnet MS/TP BAUD RATES: 9600, 19200, 38400, 57600, or 76800
(Default: 38400)
Device Address Range: 1 – 127 (Default:017)
Device Instance Range: 1 – 4,194,302 (Default:57017)
Max master: 1-127
BACnet UDP/IP IPV4 Address: Programmable (Default:192.168.1.24)
Instance Number: 1 – 4,194,302 (Default: 57017)
Subnet Mask: Programmable (Default:255.255.255.0)
Gateway Address: Programmable
UDP port: Programmable (Default:47808)
DHCP Available
MODBUS RTU MODBUS Address Range: 1- 247 (Default: 017)
BAUD RATES: 9600, 19200, 38400, 57600, or 76800
(Default: 38400)
Data format: 8 bit
Stop bits: 1
Parity: None, Odd, or Even (Default: None)
Byte Order: ABCD
MODBUS TCP/IP IPV4 Address: Programmable (Default:192.168.1.24)
Subnet Mask: Programmable (Default:255.255.255.0)
Gateway Address: Programmable
Port: Programmable (Default:502)
DHCP available
APPROVALS CE IEC 61000-6-2 Power-Frequency Magnetic Field, Radiated
Immunity and Electrostatic Discharge
IEC 61000-6-4 Radiated Emissions
EN 301 489-17 Radiated Emission, RF Immunity, and Elec-
trostatic Discharge
EN 301 328 Wideband transmission systems
UL UL 50: Standard for Enclosures for Electrical Equipment
UL ANSI/NSF 61 & 372 Drinking Water Safety
(SENSOR ONLY)
UL 61010-1 Safety Requirements for Electrical Equipment
for Measurement, Control, and Laboratory Use
FCC: Part 15, Subpart B

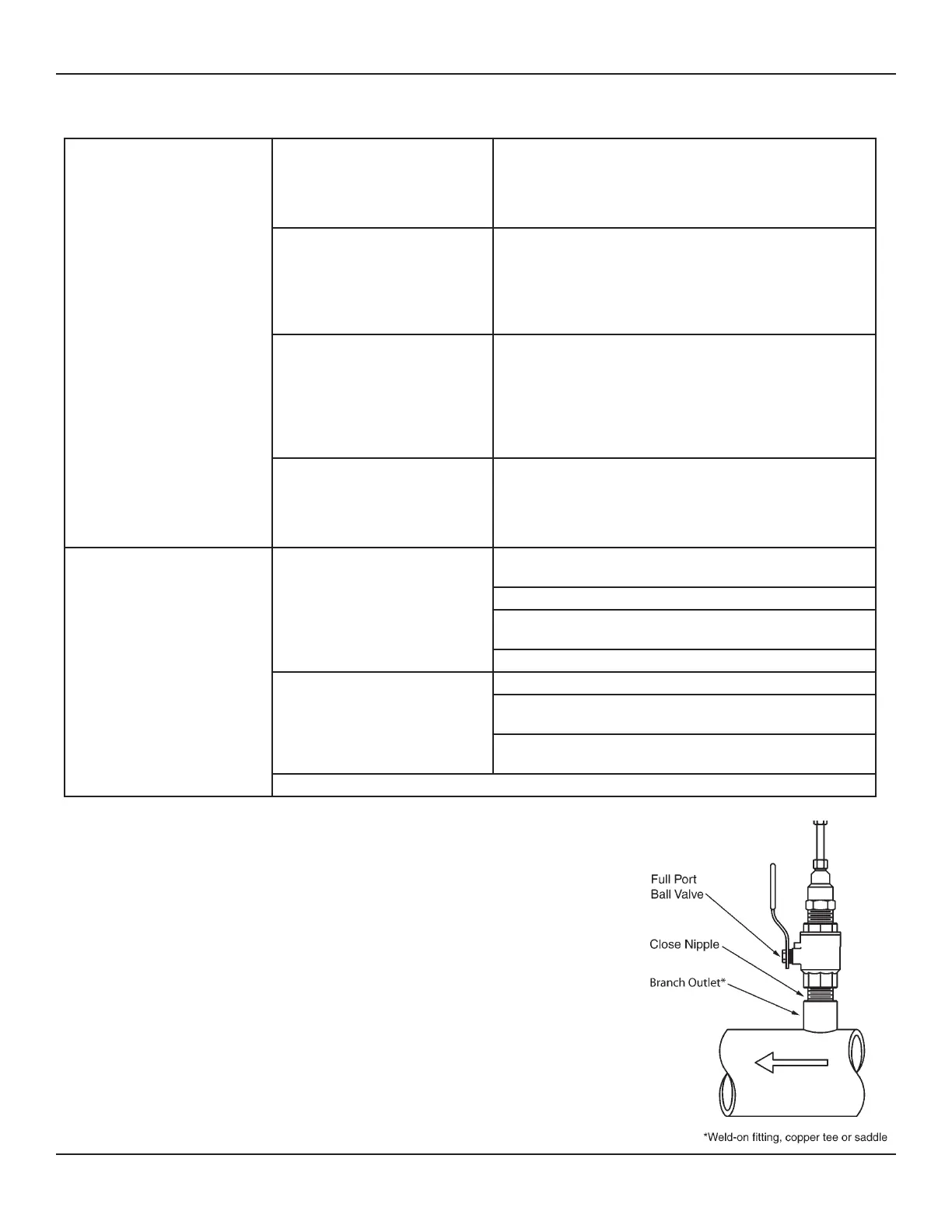

1.4 ADDITIONAL REQUIRED HARDWARE
All ONICON insertion type meters can be installed and removed via
a 1” or larger full port ball valve without system shutdown. The terms
“Standard” and “Hot Tap” refer to the installation method of the isolation
valve kit only.
Standard Installation Hardware: For new construction or scheduled shutdown; once
kit is installed, the ow meter can be installed or removed without system shutdown.
Hot Tap Installation Hardware: For applications which require the access hole in
the pipe to be drilled through the valve using a wet tap drilling machine while the
hydronic system is pressurized and operating.
NOTE: Installation hardware materials vary greatly based on pipe material, pipe size
and standard vs. hot tap versions.
1.3 STANDARD FEATURES AND SPECIFICATIONS (Continued)

Onicon FT-3500 Specifications
