Names and functions of parts

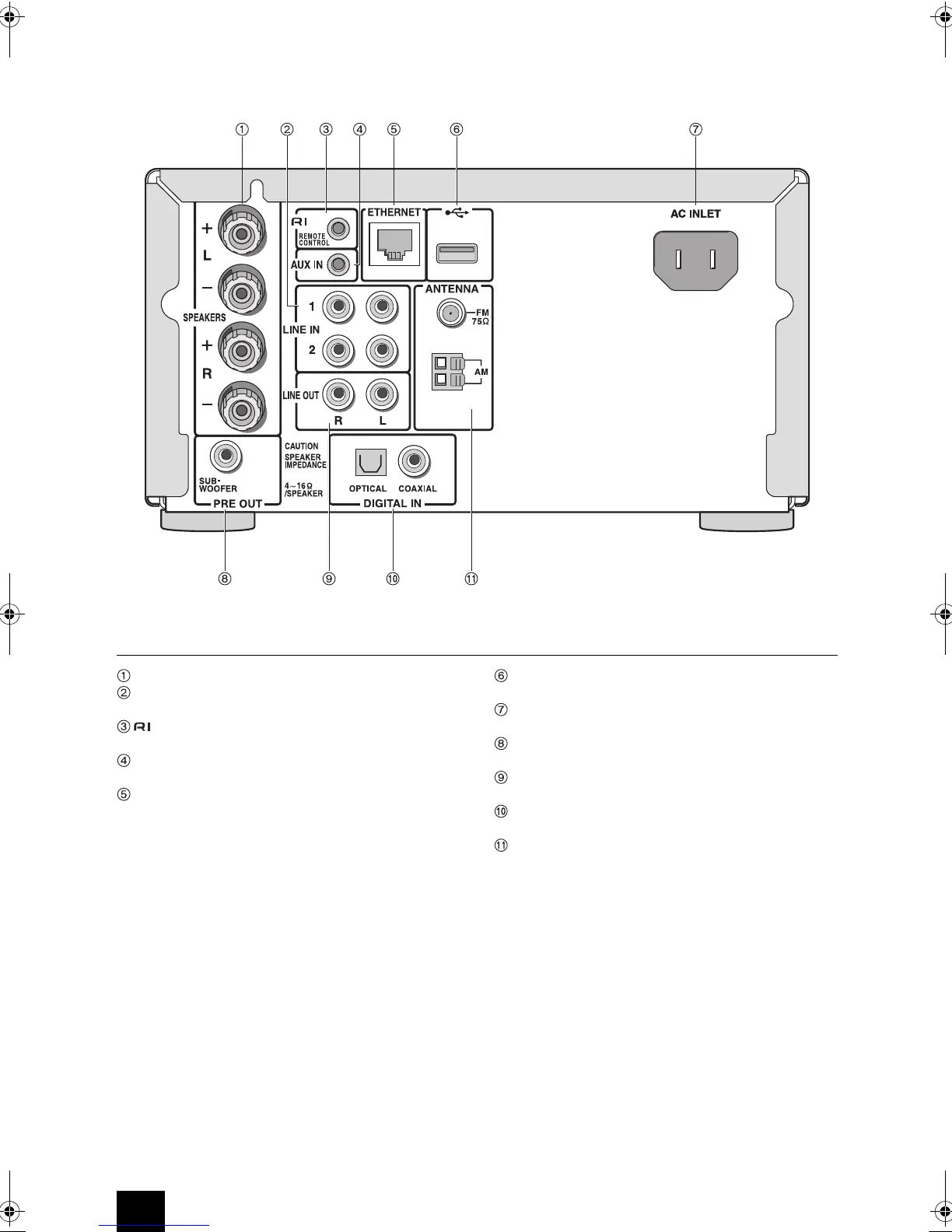

Rear
SPEAKERS terminals: Speakers are connected.
LINE IN terminals: These analog audio inputs are for
connecting Onkyo RI Dock and cassette deck, etc.
REMOTE CONTROL terminal: An Onkyo RI Dock
with RI jack can be connected.
AUX IN terminal: A stereo mini jack can be
connected.
ETHERNET port: A LAN cable can be connected.
USB terminal: Use to connect a USB storage device
to the unit.
AC INLET terminal: The supplied power cord is
connected.
SUBWOOFER PRE OUT terminal: A powered
subwoofer can be connected.
LINE OUT terminals: This analog audio output is for
connecting a recorder such as cassette deck.
DIGITAL IN OPTICAL/COAXIAL jacks: Digital audio
signals are input.
FM 75h and AM ANTENNA terminals: The supplied
antennas are connected.
