12
Getting started
1. Connecting speakers

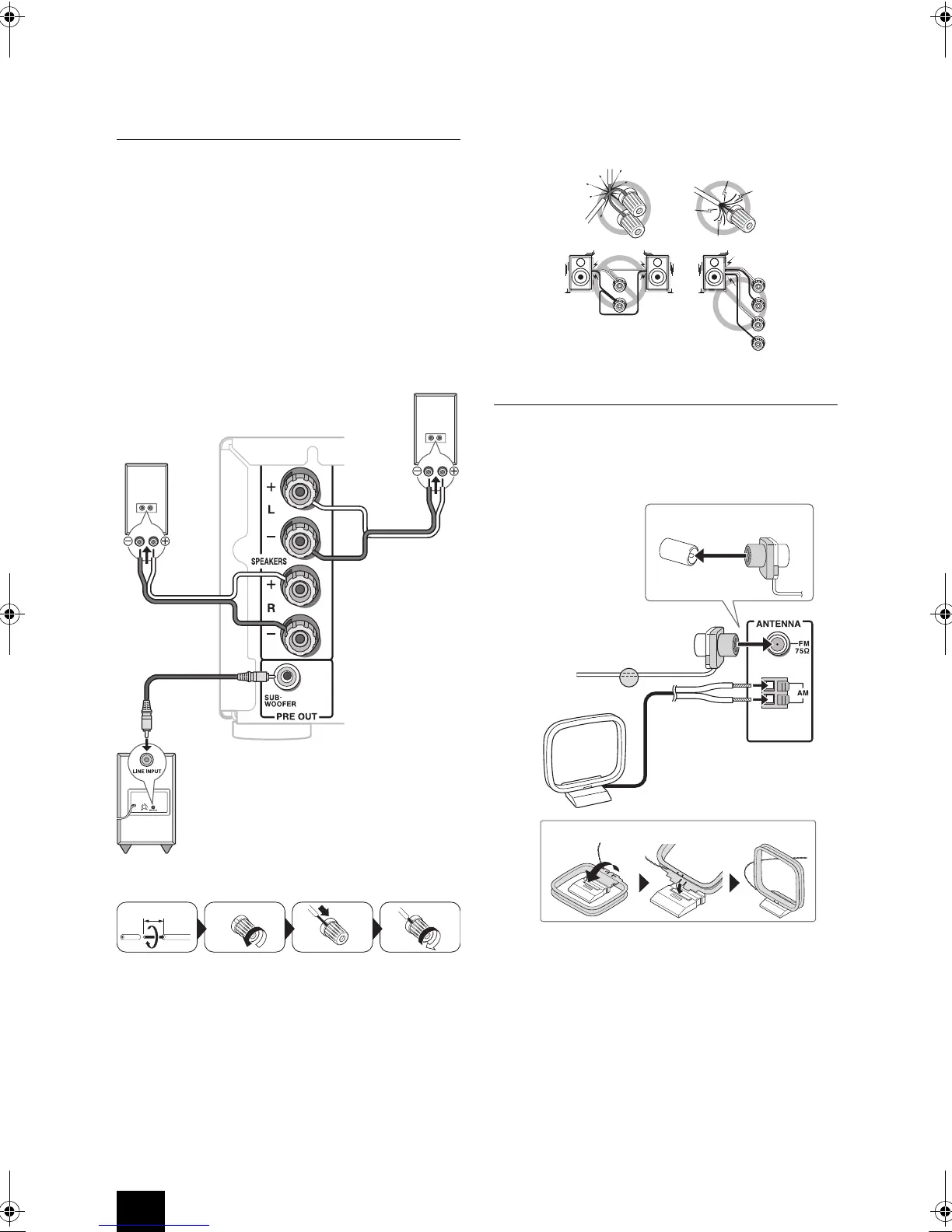

Refer to the illustration below to connect the unit and the
right and left speakers with the speaker cables. Connect
the speaker to be placed on the right hand side to the
SPEAKERS terminal (R), and connect the speaker to be
placed on the left hand side to the SPEAKERS terminal
(L). Since the unit is equipped with the SUBWOOFER
PRE OUT terminal, you can enhance bass sound
playback by connecting a subwoofer with a built-in power
amplifier.
Important: Connect speakers with 4 h to 16 h
impedance. Connecting a speaker with a lower
impedance may damage the speaker.
Cut and remove the plastic coating from the end of the
speaker cable, twist the core and connect it to the
terminal. Make correct connection between the unit’s
jacks and speaker’s jacks (i to i and j to j) for each
channel. If connection is wrong, a bass sound may
become poor due to reverse phase.
0 Short-circuiting the i cable and j cable or contacting
the cable core to the rear panel of the unit may cause
failure. Also do not connect two or more cables to one
speaker terminal or one speaker to several terminals.
2. AM/FM antenna connections
Connect the antennas to listen to AM/FM broadcast.
When listening to the broadcast for the first time, adjust
the antenna position and orientation to get the best
reception.
Left speaker
Right speaker
Powered subwoofer
Speaker cable
12-15 mm
Insert the plug fully into the
jack.
Indoor FM
antenna
(supplied)
Fix with a tack on
the wall.
AM loop antenna (supplied)
Assemble the AM loop antenna (supplied).
CR-N765_eng.book 12 ージ 2014年8月29日 金曜日 午後2時18

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo CR-N765 and is the answer not in the manual?

Onkyo CR-N765 Specifications

General IconGeneral
Impedance16 Ω
Receiver typestereo
Output impedance470 Ω
Input sensitivity150 mV
4Ω speaker supportYes
Audio output channels2.0 channels
Signal-to-Noise Ratio (SNR)100 dB
Power output per channel (20-20KHz@8 Ohm)22 W
HDMI in0
Audio (L/R) in2
Digital audio optical in1
Connectivity technologyWired
Speakers connectivity typeRCA
Audio formats supportedAAC, ALAC, FLAC, LPCM, MP3, WAV, WMA
Bluetooth version3.0+HS
Bluetooth profilesAPT-X
RDS featuresPS, RT
AM band range522 - 1611 kHz
FM band range87.5 - 108 MHz
Supported radio bandsAM, FM
Preset stations quantity40
Optical drive includedNo
Display-
Product colorSilver
Damping factor58
Package weight7 kg
Volume controlRotary
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connector contacts platingGold
Package depth309 mm
Package width487 mm
Package height232 mm
7000 gWeight of the packaged product in gram.
CertificationCE, EAC, EMC
AC input voltage220-230 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.2 W
Power consumption (typical)75 W
Weight and Dimensions IconWeight and Dimensions
Depth331 mm
Width215 mm
Height119 mm
Weight5000 g
