Names and functions of parts

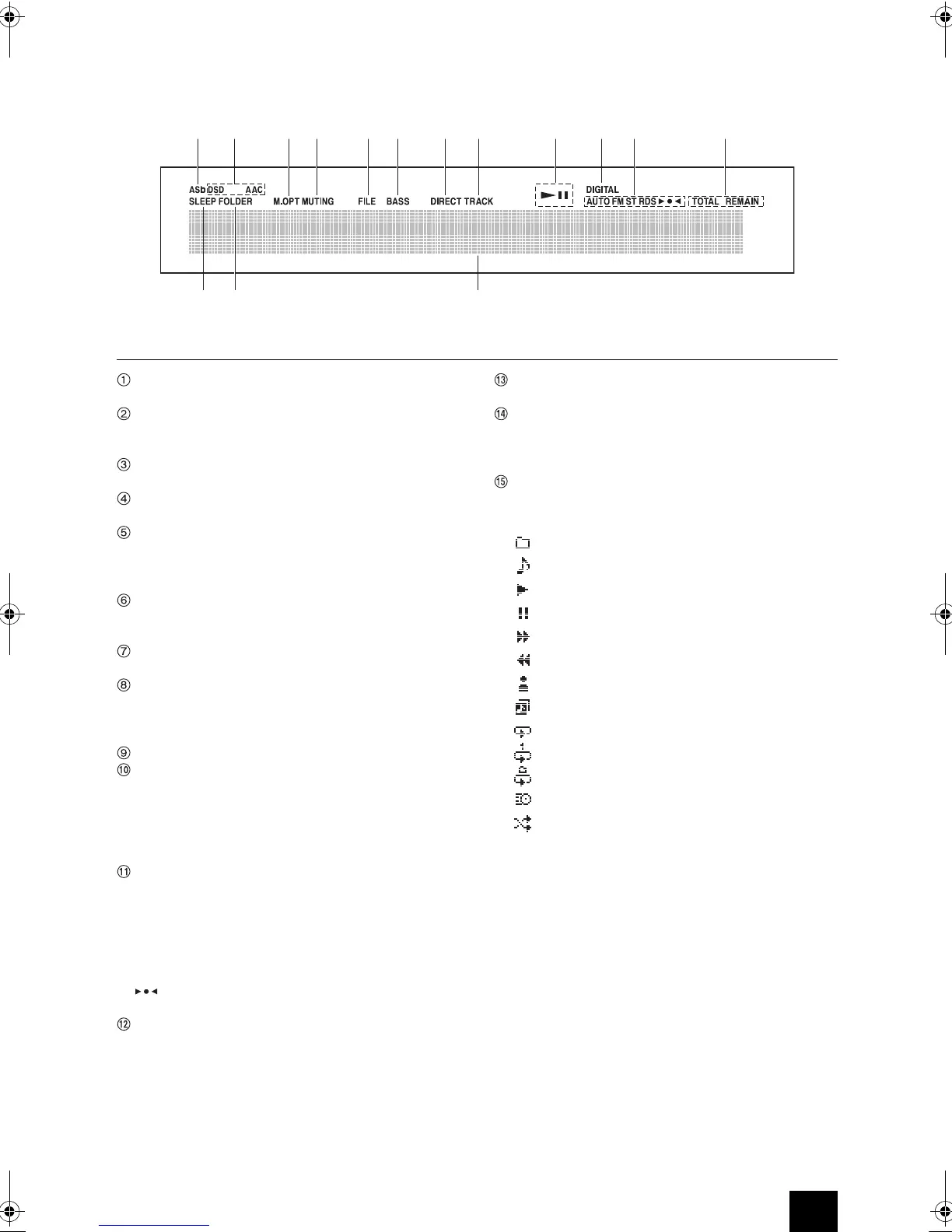

Display
Auto Standby (ASb) indicator: This indicator
appears when the Auto Standby function is on.
Format indicators: When a DSD or AAC audio file is
playing, the DSD or AAC indicator appears according
to the file format.
Music Optimizer (M.OPT) indicator: This indicator
appears when Music Optimizer (M.OPT) is on.
MUTING indicator: This indicator flashes when audio
is muted temporarily.
FILE indicator: When the source is set to CD and a
disc containing audio files is loaded, this indicator
appears. The number of files or a file number appears
below the indicator.
BASS indicator: This indicator appears when Phase
Matching Bass (PM.Bass) of the audio quality setup is
on.
DIRECT indicator: This indicator appears when Direct
of the audio quality setup is on.
TRACK indicator: When the source is set to CD and
a music CD is loaded, this indicator appears. The
number of tracks or a track number appears below the
indicator.
Play/pause (1/;) indicator
DIGITAL indicator: When the source is set to
OPTICAL/COAXIAL, the indicator status changes as
follows:
On: The unit is receiving digital audio input signals.
Flashing: The unit is not receiving digital audio input
signals.
AM/FM reception statuses
AUTO: This indicator appears when Auto Tuning Mode
is selected.
FM ST: This indicator appears when the unit is tuned
into a stereo FM broadcast.
RDS: This indicator appears when the unit receives
RDS information.
: This indicator appears when the unit is tuned into
a radio station.
TOTAL/REMAIN indicator: When the source is set to
CD, this indicator shows what information about the
disc is being displayed.
TOTAL: Total disc playback time
REMAIN: Remaining playback time of track being
played
TOTAL REMAIN: Remaining playback time of disc
being played
SLEEP indicator: This indicator appears when the
sleep timer is set.
FOLDER indicator: When the source is set to CD and
a disc containing audio files is loaded, this indicator
appears. The number of folders or a folder number
appears below the indicator.
Message display area: Track information and menus
appear here.
The following icons appear.
: Folder*
: Track/Broadcast station name
: Playing back*
: Paused*
: Searching forward*
: Searching backward*
: Artist name
: Album name
: Repeat mode
: Repeat one track
: Folder repeat*
: Memory**
: Random
* Does not appear when the source is CD.
**This only appears when the source is CD.
         

 
