Connecting the AV receiver—Continued
■ 7.2-channel Playback with Speakers A or Speakers B

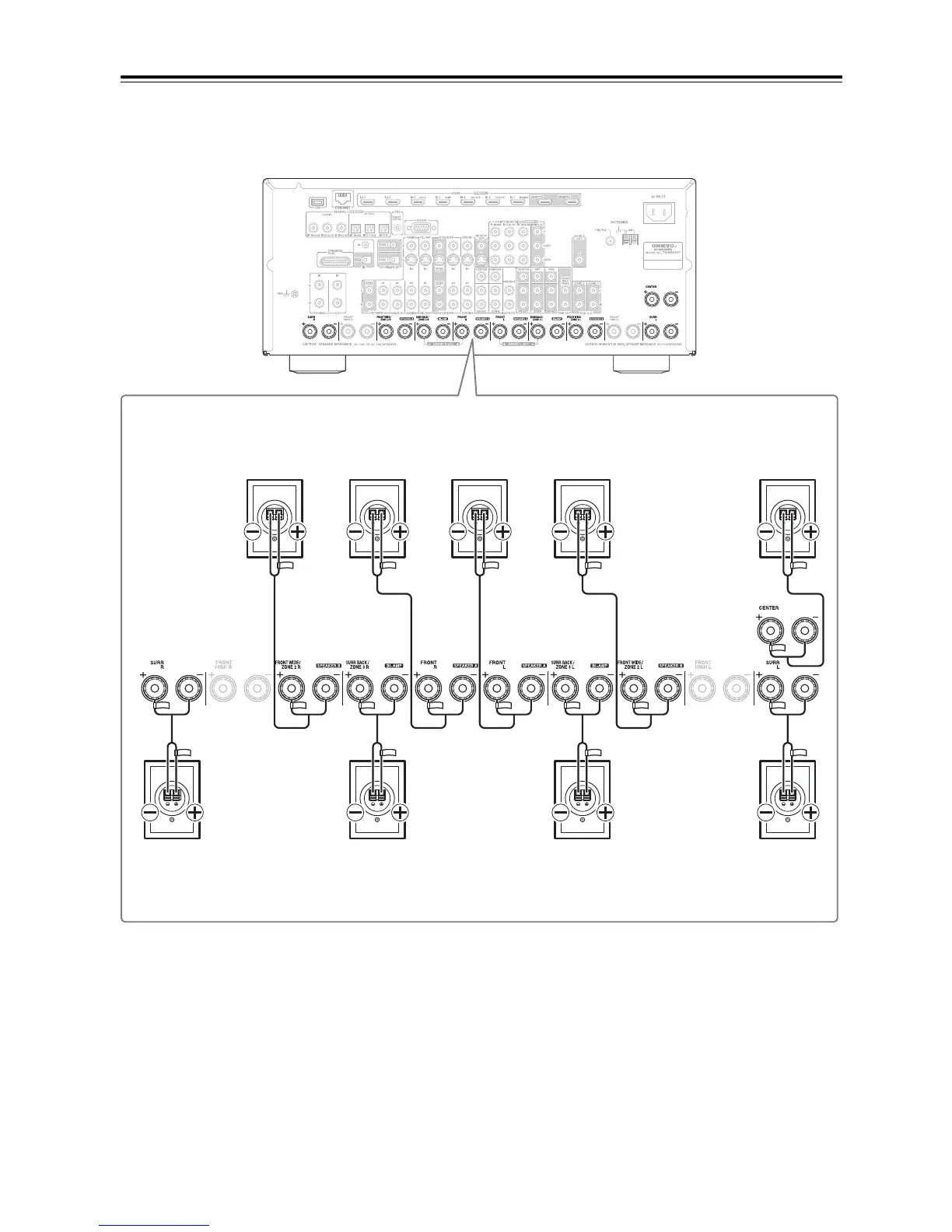

The following illustration shows which speaker should be connected to each pair of terminals for up to 7.2-channel
playback with Speakers A or Speakers B. If you’re using only one surround back speaker, connect it to the SURR
BACK/ZONE 3 L terminal.
Notes:
• When Speakers A is selected as the main front speakers, connect the front left speaker to FRONT L, front right
speaker to FRONT R. When Speakers B is selected as the main front speakers, connect the front left speaker to
FRONT WIDE/ZONE 2 L, front right speaker to FRONT WIDE/ZONE 2 R.
• The speakers are configured by using the “Speaker Settings” on page 57 and “Speaker Setup” on page 95.
• You can choose which of the spakers you want to use with the Speakers A or Speakers B configuration (see page 96).
• When you use the Speakers B configuration, front high speakers cannnot be used.
Surround
back left
speaker
Surround
back right
speaker
Surround
left
speaker
Surround
right
speaker
Front left
speaker A
Front right
speaker A
Center
speaker
Front right
speaker B
Front left
speaker B
