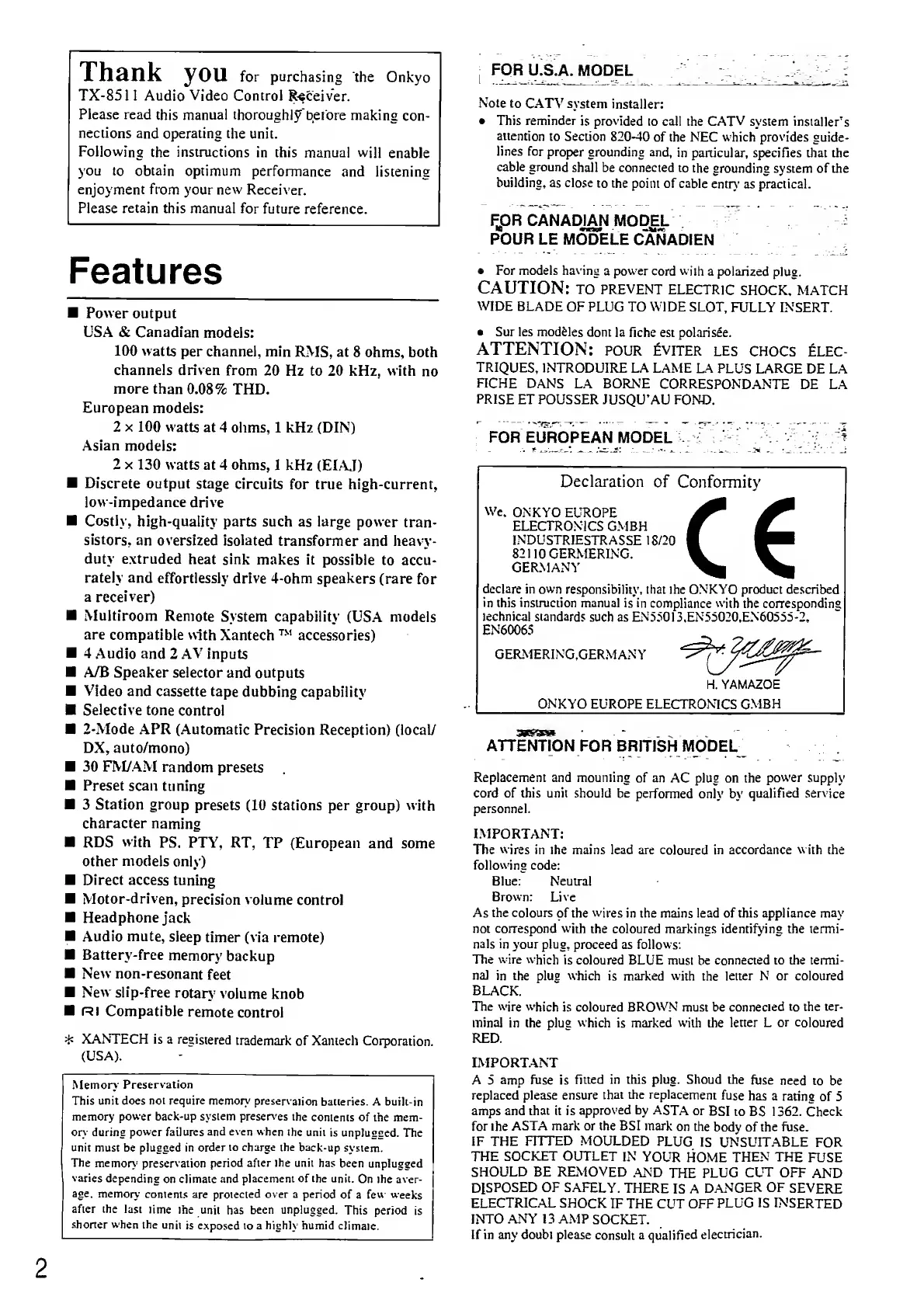

Onkyo TX-8511

Thank you for purchasing the Onkyo
TX-8511 Audio Video Control Receiver.
Please read this manual thoroughly betore making con¬
nections and operating the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new Receiver.
Please retain this manual for future reference.
Features
■ Power output
USA & Canadian models:
100 watts per channel, min R.MS, at 8 ohms, both
channels driven from 20 Hz to 20 kHz, with no
more than 0.08% THD.
European models:
2 X 100 watts at 4 ohms, 1 kHz (DIN)
Asian models:
2 X 130 watts at 4 ohms, 1 kHz (EI.4J)
■ Discrete output stage circuits for true high-current,
low-impedance drive
■ Costly, high-quality parts such as large power tran¬
sistors, an oversized isolated transformer and heavy-
duty extruded heat sink makes it possible to accu¬
rately and effortlessly drive 4-ohm speakers (rare for
a receiver)
■ Multiroom Remote System capability (USA models
are compatible with Xantech ™ accessories)
■ 4 Audio and 2 AV inputs
■ A/B Speaker selector and outputs
■ Video and cassette tape dubbing capability
■ Selective tone control
■ 2-Mode APR (Automatic Precision Reception) (local/
DX, auto/mono)
■ 30 FM/.AM random presets
■ Preset scan tuning
■ 3 Station group presets (10 stations per group) with
character naming
■ RDS with PS. PTY, RT, TP (European and some
other models only)
■ Direct access tuning
■ Motor-driven, precision volume control
■ Headphone jack
■ Audio mute, sleep timer (via remote)
■ Battery-free memory backup
■ New non-resonant feet
■ New slip-free rotary volume knob
■ Rl Compatible remote control
XANTECH is a registered trademark of Xantech Corporation.
(USA).
.Memory Preservation
This unit does not require memory preservation batteries. A built-in
memory power back-up system presert'es the contents of the mem¬
ory during power failures and even when the unit is unplugged. The
unit must be plugged in order to charge the back-up system.
The memory preservation period after the unit has been unplugged
varies depending on climate and placement of the unit. On the aver¬
age. memory contents are protected over a period of a few weeks
after the last time the unit has been unplugged. This period is
shorter when the unit is e.xposed to a highly humid climate.
FOR u!s.a. model
Note to C.4TV system installer:
• This reminder is provided to call the CATV system installer's
attention to Section 820-40 of the NTC which provides guide¬
lines for proper grounding and, in particular, specifies tliat the
cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
FjDR CANADJ^N MODEL
POUR LE MODELE CANADIEN
• For models havina a pow'er cord w'ith a polarized plua.
CAUTION: TO PREVENT ELECTRIC SHOCK. MATCH
WIDE BLADE OF PLUG TO WIDE SLOT. FULLY INSERT.
• Sur les modeles dont la fiche est polarisee.
ATTENTION: pour eviter les chocs elec-
TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA
FiCHE DANS LA BORNE CORRESPONDANTE DE LA
PRISE ET POUSSER JUSQU’AU FOND.
FOR EUROPEAN MODEL ",
Declaration of Conformity
We, ONKYO ELTROPE
ELECTRONICS GMBH
INDUSTRIESTRASSE 18/20
82110 GERMERING.
GERMANY
declare in own responsibility, that the ONKYO product described
in this instruction manual is in compliance with the corresponding
technical standards such as EN55013.EN55020,E.N60555-2,
EN60065
GERMERING,GERMANY
H. YAMAZOE
ONKYO EUROPE ELECTRONICS G.MBH
ATTENTION FOR BRmSH MODEL
Replacement and mounting of an AC plug on the poww supply
cord of this unit should be performed only by qualified service
personnel.
I.MPORTANT:
The wires in the mains lead are coloured in accordance with the
following code;
Blue; Neuu-al
Brown; Live
As the colours of the wires in the mains lead of this appliance may
not correspond with the coloured markings identifying the termi¬
nals in your plug, proceed as follows;
The wire which is coloured BLUE must be connected to the termi¬
nal in the plug which is marked with the letter N or coloured
BLACK.
The wire which is coloured BROWN must be connected to the ter¬
minal in the plus which is marked with the lener L or coloured
RED.
IMPORT.ANT
A 5 amp fuse is fitted in this plug. Shoud the fuse need to be
replaced please ensure that the replacement fuse has a rating of 5
amps and that it is approved by ASTA or BSI to BS 1362. Check
for the ASTA mark or the BSI mark on the body of the fuse.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOLIR HOME THEN THE FUSE
SHOULD BE REMOVED .AND THE PLUG CLT OFF AND
DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE
ELECTRIC.AL SHOCK IF THE CUT OFF PLUG IS INSERTED
INTO ANT 13 AMP SOCKET.
If in any doubt please consult a qualified electrician.
