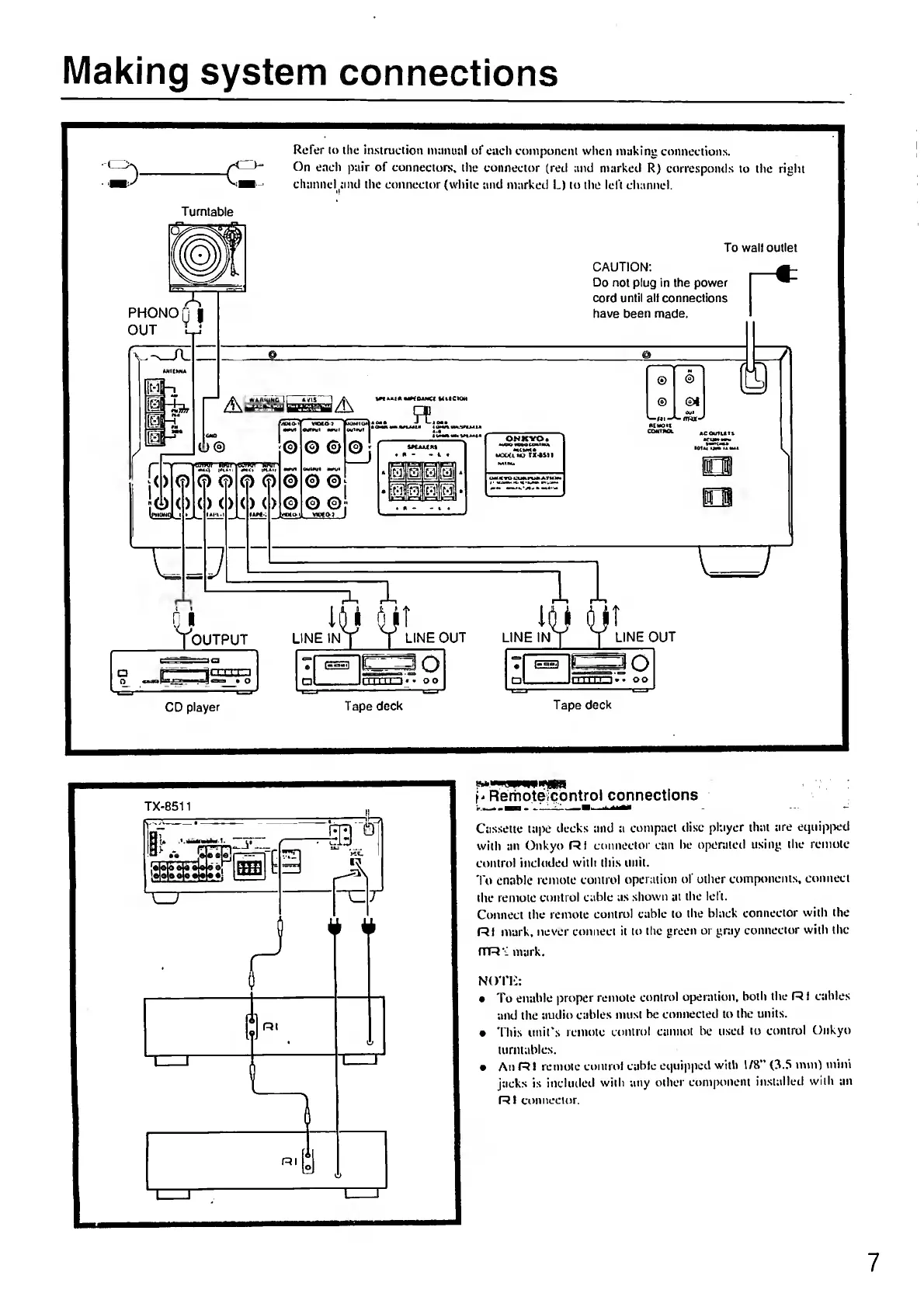

Making system connections
Refer lo ilie insiruciion inunual of each coinponeiii when making conneclions.
On each pair of conneclors. lire connector (red and marked R) corresponds to the right
channel and the connector (white and marked L) to the left channel.
Turntable
i-Rerhoteicontrol connections
Ca.s.setie tape decks and it compact disc player that tire eqiiip|icd
with an Onkyo Rl connector can he operated using the remote
control included with this unit.
To enable remote control operation of other compt>neats. connect
the remote control cable as shown at the lelt.
Connect the remote control cable to the black connector with the
Rl mark, never connect it to the green or gray connector with the
fTR ■ ; mark.
Norii:
• To enable proper remote control operatioti, both the Rl cables
and the audio cables must be connected to the units.
• This unit’s remote control cannot be used to control Onkyo
turntables.
• An RI remote control cable equipped with 1/8” (3.5 mm) mini
jacks is incluiled with any other component installed with an
Rl connector.
