Onkyo TX-8511

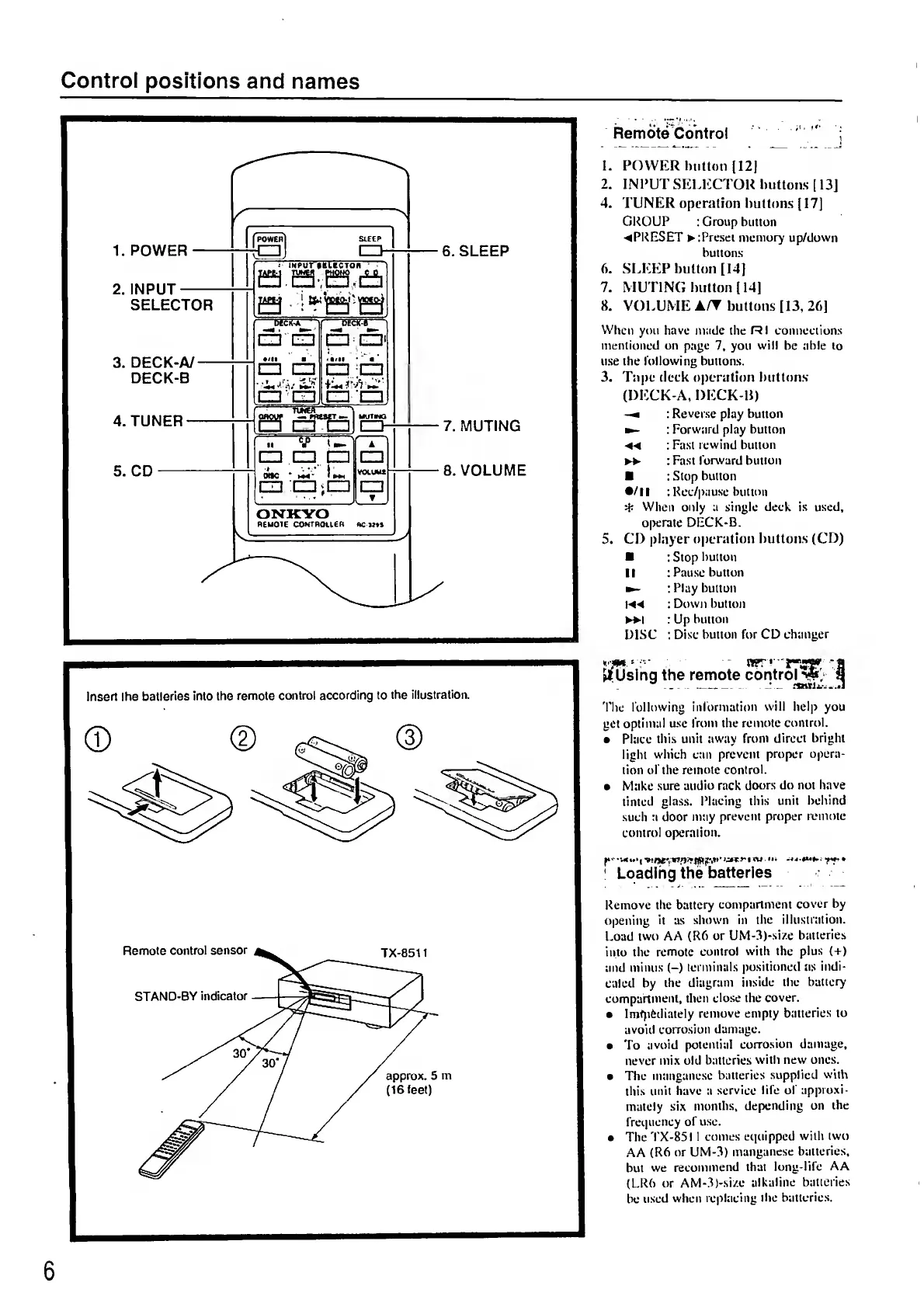

Control positions and names
r
1. POWER
2. INPUT
SELECTOR
3. DECK-A/-
DECK-B
powen
a
Sleep
iii^
4. TUNER-
5. CD
2 iN>ur9BLecTOpi
^APE-j TUWKj pONO 0^
DECK-A
S i±i
•m
□ □ != □
a m
Btapi
P-E'
• trll ' ' • *
fl44
im rzi
KJ
Ml^MG
1 1-
A
CD CD CZ] [=3
one 1 P A4
VOLUUC -
CZI CZI ‘CZ
CZI
T
1 ONKYO
1 REMOTE COKTROllER
RC ms
6. SLEEP
7. MUTING
8. VOLUME
Remote Control
1. POWER button [12]
2. INPUT SELECTOR buttons [ 13]
4. TUNER operation buttons [17]
GROUP : Group bulton
•^PRESET ► : P reset memory up/down
buttons
6. SLEEP button [14]
7. MUTING button [14]
8. VOLUME Aff buttons [13, 26]
When you have made the Rl comieetions
mentioned on page 7, you will be able to
use the Ibllowing buttons.
3. Tape deck operation buttons
(DECK-A, DECK-B)
: Reverse play button
fc- : Forward play button
: Fast rewind button
►► : Fast forward button
■ : Stop button
•/II ; Rec/pause button
When only a single deck is used,
o|>erate DECK-B.
5. CD player operatioti buttons (CD)
■ : Slop button
11 : Pau.se button
: Play button
; Down button
»l ; Up bulton
DISC ; Disc button for CD changer
- nr-f'fxisy ■ -«
>1 Using the remote controls, a
..... .. . _1 _
'I'be following information will help you
gel optimal use from the remote control.
• Place this unit iiway from direct bright
light which c:m prevent proper opera¬
tion of the remote control.
• Make sure audio rack doors do not have
tinted glass. Placing this unit behind
such :i door tntty prevent proper remote
control operation.
Loading the batteries
Remove the battery compartment cover by
opening it as shown in the illustration.
Load two AA (R6 or UM-3)-size batteries
into the remote control with the plus (+)
and mitius (-) terminals positioned as indi¬
cated by the diagram inside the battery
compartment, theti clo.se the cover.
• lmt|i6diately remove empty batteries to
avoid corrosioit damage.
• To avoid potential corrosion damage,
never mix old batteries with new ones.
• The manganese batteries supplied with
this unit have a service life of approxi¬
mately six months, depending on the
frequency of u.se.
• The TX-8511 comes equipped with two
AA (R6 or UM-3) manganese batteries,
but we recommend that long-life AA
(LR() or AM-3)-.size alkaline batteries
be used when replacing the batteries.
6
