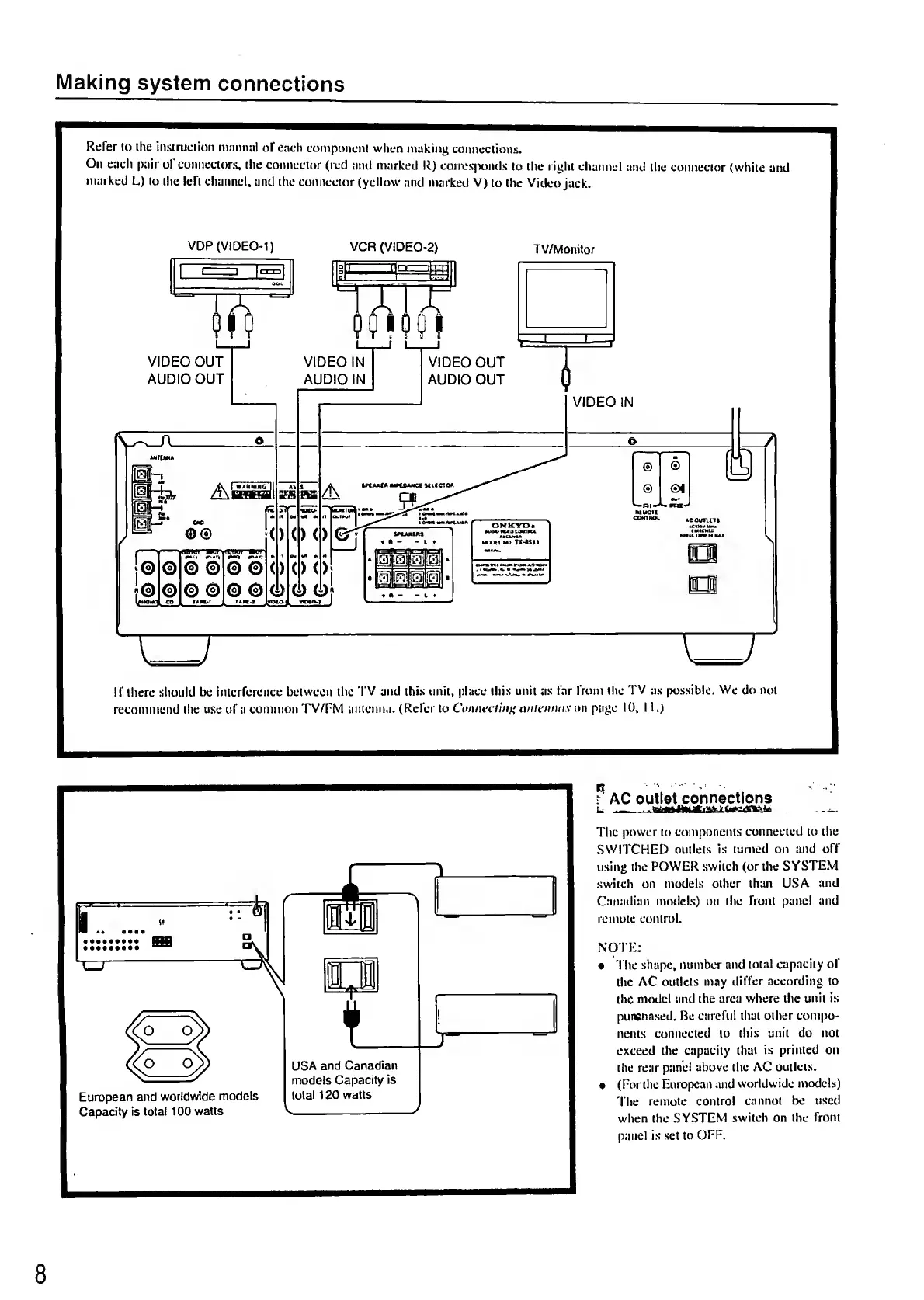

Making
system
connections
Refer
to
the
instruction
niunuul
of
each
coniponeni
when
inakinj;
connections.
On
each
pair
of
connectors,
the
connector
(red
and
marked
R)
corresponds
to
the
right
channel
and
the
connector
(white
and
marked
L)
to
the
lelt
channel,
and
the
connector
(yellow
and
marked
V)
to
the
Video
jack.
VDP(VIDEO-I)
VCR
(VIDEO-2)
TV/Monitor
If
there
should
be
interference
between
the
'fV
and
this
unit,
place
this
unit
as
far
from
the
TV
as
possible.
We
do
not
recommend
the
use
of
a
common
TV/FM
antenna.
(Refer
to
Coniwcim^
imimiuis
on
page
10,
II.)
r’
AC
outlet
connections
The
power
to
components
connected
to
the
■
SWITCHED
outlets
is
turned
on
and
off
using
the
POWER
switch
(or
the
SYSTEM
switch
on
models
other
than
USA
and
Canadian
models)
on
the
front
panel
and
remote
control.
NOTE;
•
The
shape,
number
and
total
capacity
of
the
AC
outlets
may
differ
according
to
the
model
tmd
the
area
where
the
unit
is
punBhased.
Be
careful
that
other
compo¬
nents
connected
to
this
unit
do
not
exceed
the
capacity
that
is
printed
on
the
rear
panel
above
the
AC
outlets.
•
(For
the
Europtean
and
worldwide
models)
The
remote
control
cannot
be
used
when
the
SYSTEM
switch
on
the
front
panel
is
set
to
OFF.
8
