Onkyo TX-RZ3400

72
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫

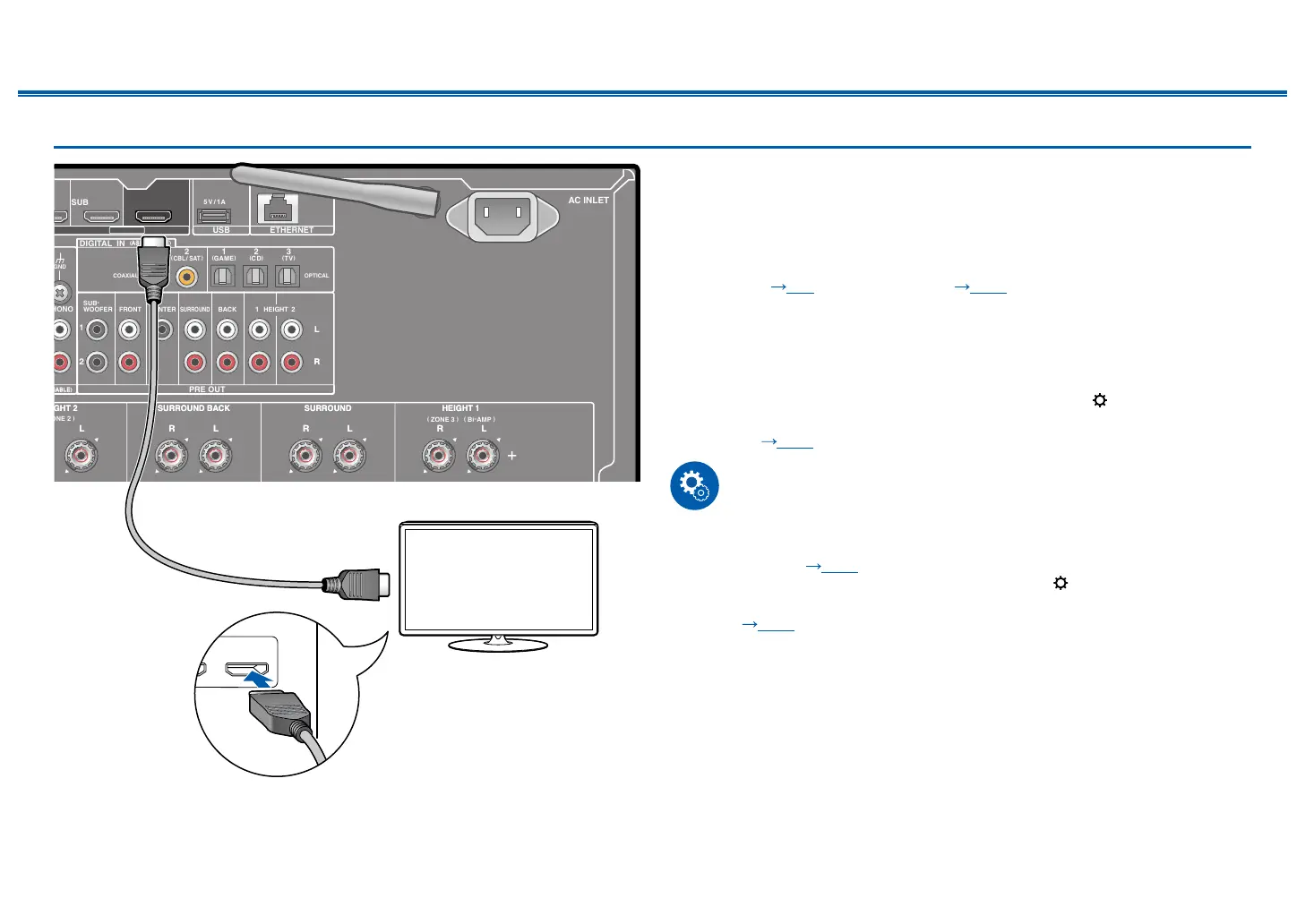

To ARC/eARC TV
If the TV supports the ARC (Audio Return Channel) function (*), use only the
HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of the
TV for connection. You connect the HDMI cable to the port labeled OUT on the
receiver side.
• Another TV or projector can be connected to the HDMI OUT SUB jack. Switch
between MAIN and SUB using the HDMI MAIN/SUB button on the remote
controller ( p15) or "Quick Menu" ( p180). Note that this jack is not
ARC-compatible.
• If devices with different resolutions are connected to HDMI OUT MAIN jack
and SUB jack, images are output with the lower resolution.
• If a 4K high-quality video is played, use a Premium High Speed HDMI Cable
or Premium High Speed HDMI Cable with Ethernet whose package has
a "PREMIUM Certied Cable" label. Furthermore, press on the remote
controller, and set "1.Input/Output Assign" - "TV Out/OSD" - "HDMI 4K Signal
Format" ( p154) to "Enhanced".
Setup
• Settings are required to use the ARC function. Select "Yes" for "4. ARC Setup"
in Initial Setup ( p184). If "No, Skip" is selected, settings are required in the
Setup menu after Initial Setup is completed. Press on the remote controller,
and set "5. Hardware" - "HDMI" - "Audio Return Channel (eARC supported)" to
"On". ( p171)
• For detailed settings for TV connection, CEC function and audio output, refer
to the instruction manual of the TV.
(*) ARC function: Transmits the audio signals of the TV via an HDMI cable, and
plays the audio of the TV on this unit. Connection to an ARC-compatible TV is
complete with one HDMI cable. To check if the TV supports the ARC function,
refer to the instruction manual of the TV, etc.
AC INLET
ETHERNETUSB
PHONO
FRONT CENTER
2
(
CD
)
3
(
TV
)
1
(
GAME
)
1 2
BACK HEIGHT
OPTICALCOAXIAL
DIGITAL IN
LL
RR
GND
1
SUB MAIN
e ARC
ARC
HDMI OUT
4
K HDR
5 V / 1 A
(
ASSIGNABLE
)
1 2
(
BD/ DVD
) (
CBL / SAT
)
ASSIGNABL
E
)
2
SUB
-
WOOFER
SURROUND
PRE OUT
SURROUND BACKSURROUND BACK
RR LL RR LL
SURROUNDSURROUND
HEIGHT 1 HEIGHT 1
HEIG
HT 2
HEIG
HT 2
LL RR LL
(
ZONE 3
) (
Bi
-
AMP
)
ZON
E 2
)
IN(ARC)
a
TV
a HDMI cable
