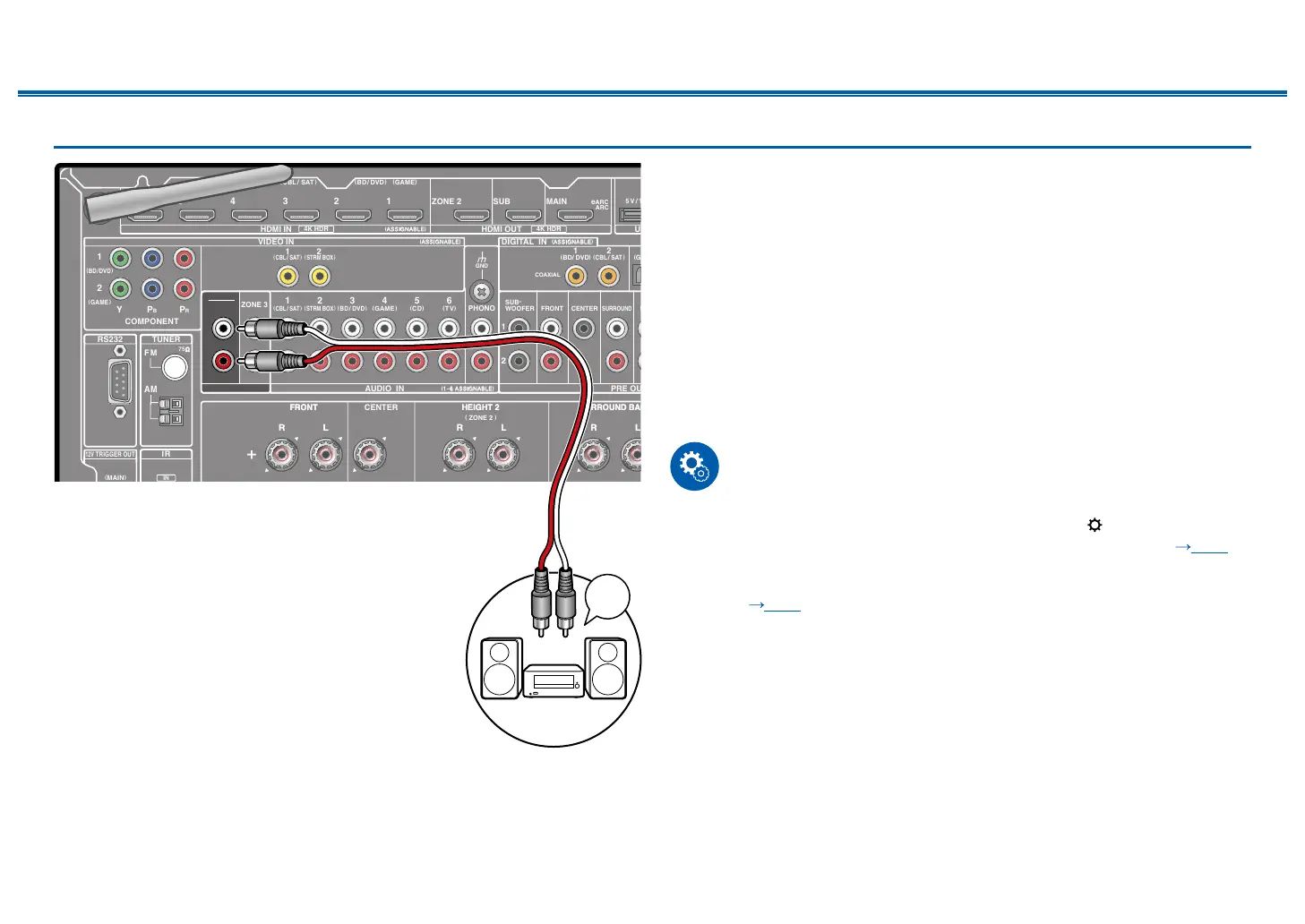

Connecting a Pre-main Amplier (ZONE 2)
You can enjoy 2-ch audio in the separate room (ZONE 2) while performing
playback in the main room (where this unit is located). Use an analog audio cable
to connect the ZONE 2 PRE/LINE OUT jack of this unit and the LINE IN jack of
the pre-main amplier in the separate room. The same source can be played
back in the main room and ZONE 2 simultaneously. Also, different sources can
be played back in both rooms.
• To output audio from an externally connected AV component to ZONE 2,
connect it to any of HDMI IN1 to IN3 jacks. If the AV component is not
equipped with an HDMI jack, use a digital coaxial cable, digital optical cable or
analog audio cable. Also, the audio from externally connected AV components
can be output to ZONE 2 only when the audio is analog or 2ch PCM signal.
When the AV component is connected to this unit with a digital coaxial cable or
digital optical cable, change the audio output of the AV component to the PCM
output.
Setup
• Settings are required to output audio to ZONE 2. Press on the remote
controller, and set "2. Speaker" - "Conguration" - "Zone 2 Preout" (
p159)
to "Zone 2".
• When connecting the power amplier, set "6. Multi Zone" - "Zone 2" - "Output
Level" ( p176) to "Variable" on the Setup menu. If it is not set, a large
volume is output and the power amplier, speakers, etc. may be damaged.
USB
(
CBL / SAT
) (
STRM BOX
)
1
2
1 2 3 4 5 6
(
BD / DVD
)
(
BD /DVD
(
GAME
) (
T V
)
PHONO
FRONT CENTER
(
CD
)
(
GAME
ZONE 3
ZONE B
(
LINE OUT
)
BACK
COAXIAL
DIGITAL IN
(
GAME
)
TUNER
AM
LL
RR
GND
(
BD / DVD
)(
CBL / SAT
) (
GAME
)
3456 2 1
(
STRM BOX
)
(
STRM BOX
)
(
PC
)
1
RS 232
IN
12V TRIGGER OUT
SUBZONE 2 MAIN
e ARC
ARC
HDMI IN
4 K HDR
HDMI OUT
4
K HDR
(
ASSIGNABLE
)
5 V /
1 A
COMPONENT
(
ASSIGNABLE
)
F M
75Ω
1 2
(
CBL / SAT
)
1 2
(
BD/ DVD
) (
CBL / SAT
)
(
1
~
6 ASSIGNABLE
)
2
SUB
-
WOOFER
SURROUND
PRE O
UT
(
MAIN
)
(
ASSIGNABLE
)
PRE/LINE OUT
Y P B P R
VIDEO IN
AUDIO IN
(
ASSIGNABLE
)
FRONTFRONT CENTER
RR LL
SURROUND B
ACK
SURROUND B
ACK
RR
LL
SPEAKERS
HEIGHT 2 HEIGHT 2
RR LL
(
ZONE 2
)
ZONE 2
100 mA
12 V
MAX
IR
)
LINE
IN
a
Premain Amp.
a Analog audio cable
