Onkyo TX-RZ3400

74
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
Connecting Playback Devices
Connecting an AV Component with HDMI Jack Mounted

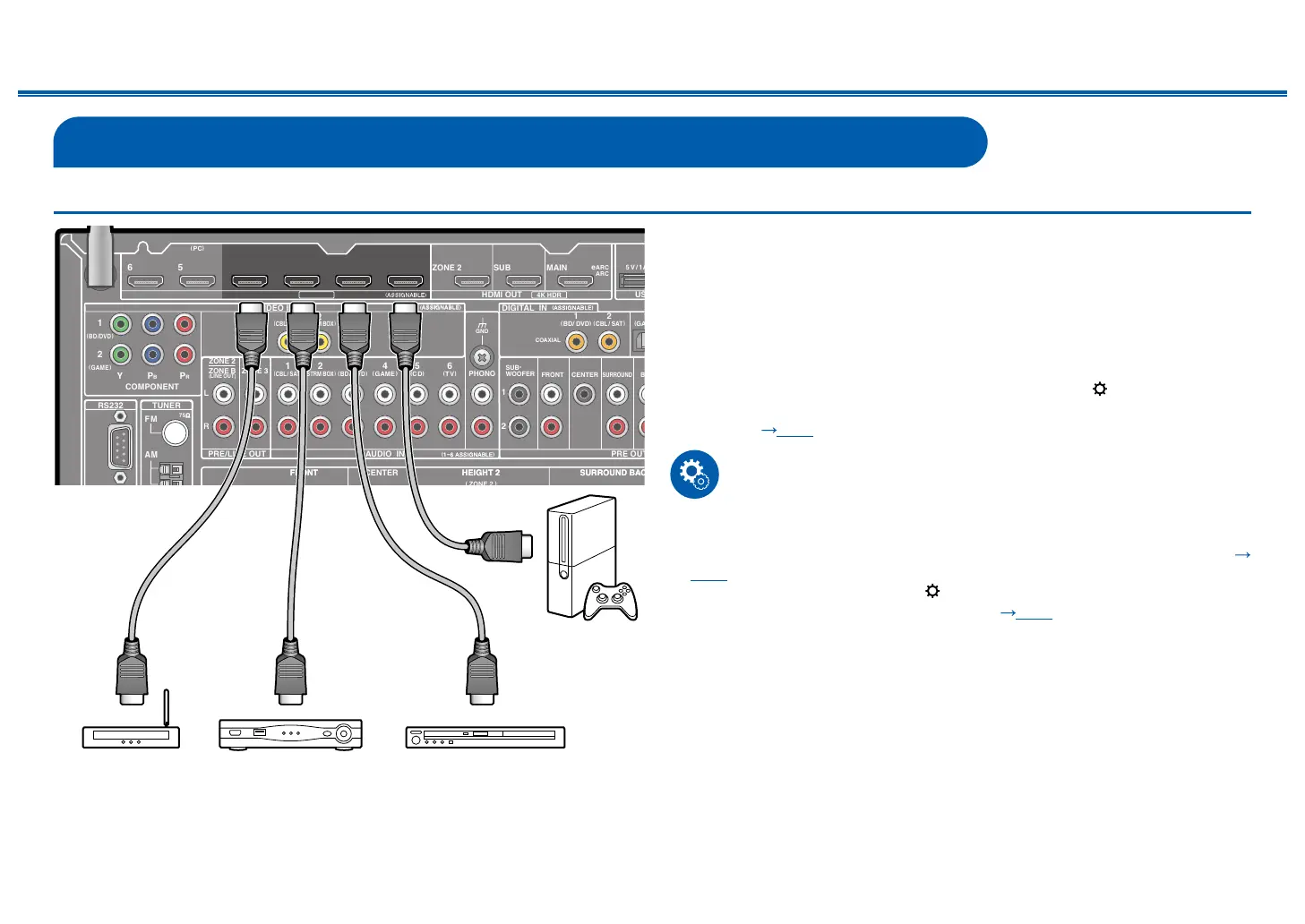

This is a connection example of an AV component equipped with an HDMI jack.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the HDMI CEC function (*) that
enables linking with input selectors, etc. and the HDMI Standby Through function
that can transmit video and audio signals of the AV component to the TV even if
this unit is in standby mode.
• If a 4K high-quality video is played, use a Premium High Speed HDMI Cable
or Premium High Speed HDMI Cable with Ethernet whose package has
a "PREMIUM Certied Cable" label. Furthermore, press on the remote
controller, and set "1.Input/Output Assign" - "TV Out/OSD" - "HDMI 4K Signal
Format" ( p154) to "Enhanced".
Setup
• The HDMI CEC function and HDMI Standby Through function are
automatically enabled if you select "Yes" for "4. ARC Setup" in Initial Setup (
p184). If "No, Skip" is selected, settings are required in the Setup menu after
Initial Setup is completed. Press on the remote controller, and select "5.
Hardware" - "HDMI" to make the settings. ( p170)
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
(*)The HDMI CEC function: This function enables various linking operations
with CEC-compliant devices, such as switching input selectors interlocking with
a CEC-compliant player, switching audio output between TV and this unit or
adjusting the volume using the remote controller of a CEC-compliant TV, and
automatically switching this unit to standby when the TV is turned off.
USB
(
CBL / SAT
) (
STRM BOX
)
1
2
1 2 3 4 5 6
(
BD / DVD
)
(
BD /DVD
(
GAME
) (
T V
)
PHONO
FRONT CENTER
(
CD
)
1
(
G
AME
ZONE 3
ZONE B
(
LINE OUT
)
BACK
COAXIAL
DIGITAL IN
(
GAME
)
TUNER
AM
LL
RR
GND
(
BD / DVD
)(
CBL / SAT
) (
GAME
)
3456 2 1
(
STRM BOX
)
(
STRM BOX
)
(
PC
)
1
RS 232
SUBZONE 2 MAIN
e ARC
ARC
HDMI IN
4 K HDR
HDMI OUT
4
K HDR
(
ASSIGNABLE
)
5 V / 1
A
COMPONENT
(
ASSIGNABLE
)
F M
75Ω
1 2
(
CBL / SAT
)
1 2
(
BD/ DVD
) (
CBL / SAT
)
(
1
~
6 ASSIGNABLE
)
2
SUB
-
WOOFER
SURROUND
PRE OU
T
PRE/LINE OUT
Y P B P R
VIDEO IN
AUDIO IN
(
ASSIGNABLE
)
FRONTFRONT CENTER
SURROUND BA
CK
SURROUND BA
CK
HEIGHT 2 HEIGHT 2
(
ZONE 2
)
ZONE 2
)
a
Streaming media
player
GAME
BD/DVDCable/Satellite
set-top box
a HDMI cable
