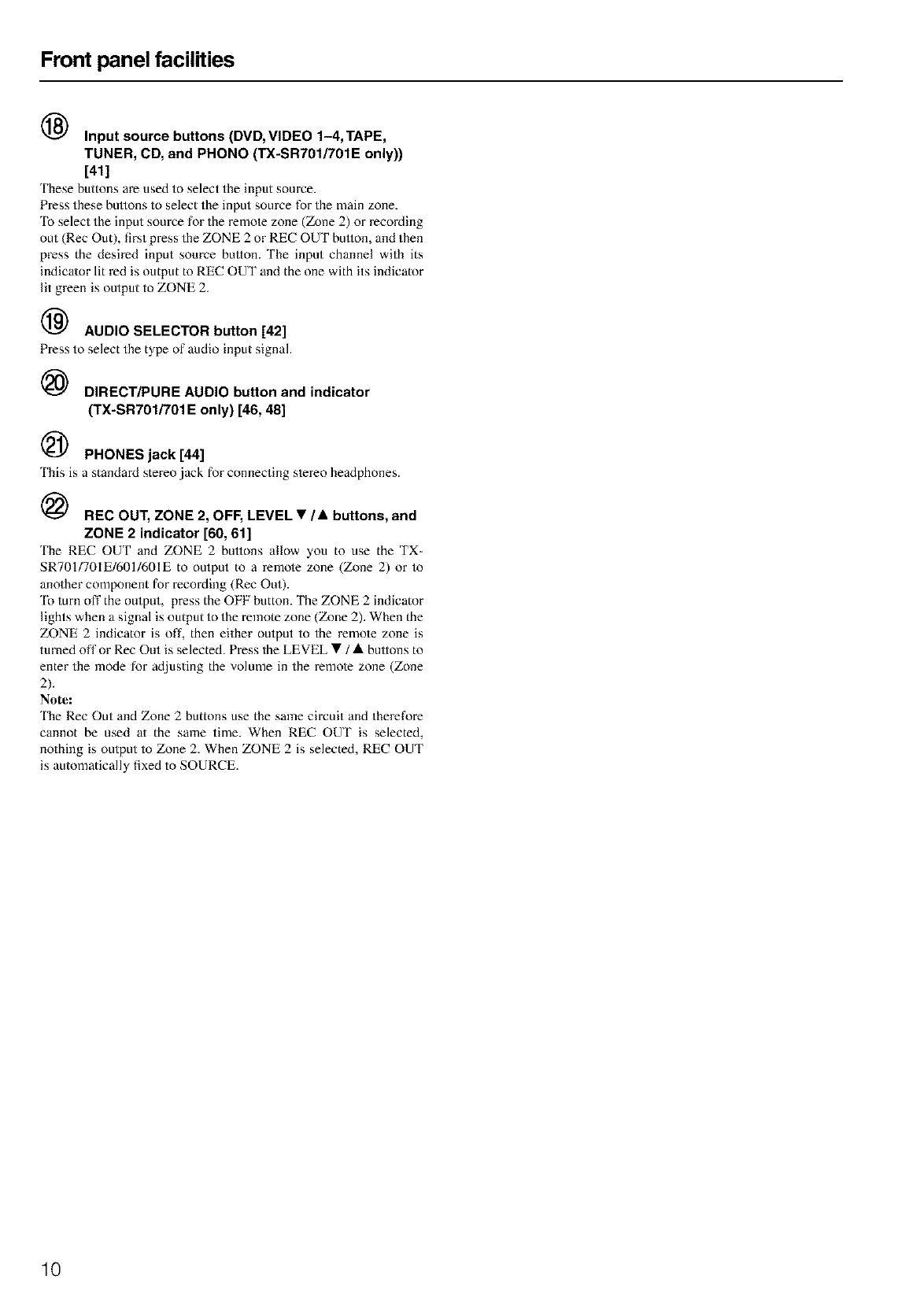

Front panel facilities
Input source buttons (DVD, VIDEO 1-4,TAPE,
TUNER, CD, and PHONO (TX-SR701/701E only))
[41]
'Ihese buttons are used to select the input source.
Press these bullons to select the input source for the main zone.
To select the input source for the remole zone (Zone 2) or recording
out (Rec Out), first press the ZONE 2 or REC OUT bullon, and then
press the desired input source bulton. The input channel with its
indica/or lit red is output to REC OUT and the one with its indicator
lit green is output to ZONE 2.
(_ AUDIO SELECTOR button [42]
Press to select the type of audit} input signal.
(_ DIRECT/PURE AUDIO button and indicator
(TX-SR701/701E only) [46, 48]
(_ PHONES jack [441
'Ihis is a standaM stereo,jack for connecting stereo headphones.
_) REC OUT, ZONE 2, OFF, LEVEL •/• buttons, and
ZONE 2 indicator [60, 61]
'Ihe REC OUT and ZONE 2 bullons allow you to use the TX-
SR701/701E/601/601E to output to a mmole zone (Zone 2) or to
another component for recording (Rec Out).
To turn off the output, press the OFF button. The ZONE 2 indicator
lights when a signal is output to the remote zone (2kme 2). When the
ZONE 2 indicator is off, then either output to the remole zone is
turned off or Rec Out is selected. Press the LEVEE • / • bultons to
enter the mode for adjusting the volume in the remote zone (Zone
2).
Note:
'Ihe Rec Out and Zone 2 buttons use the same circuit and therefore
cannot be used at the same time. When REC OUT is selected,
nothing is output to Zone 2. When ZONE 2 is selected, REC OUT
is automatically fixed to SOURCE.
