3.5.5 Drip pan

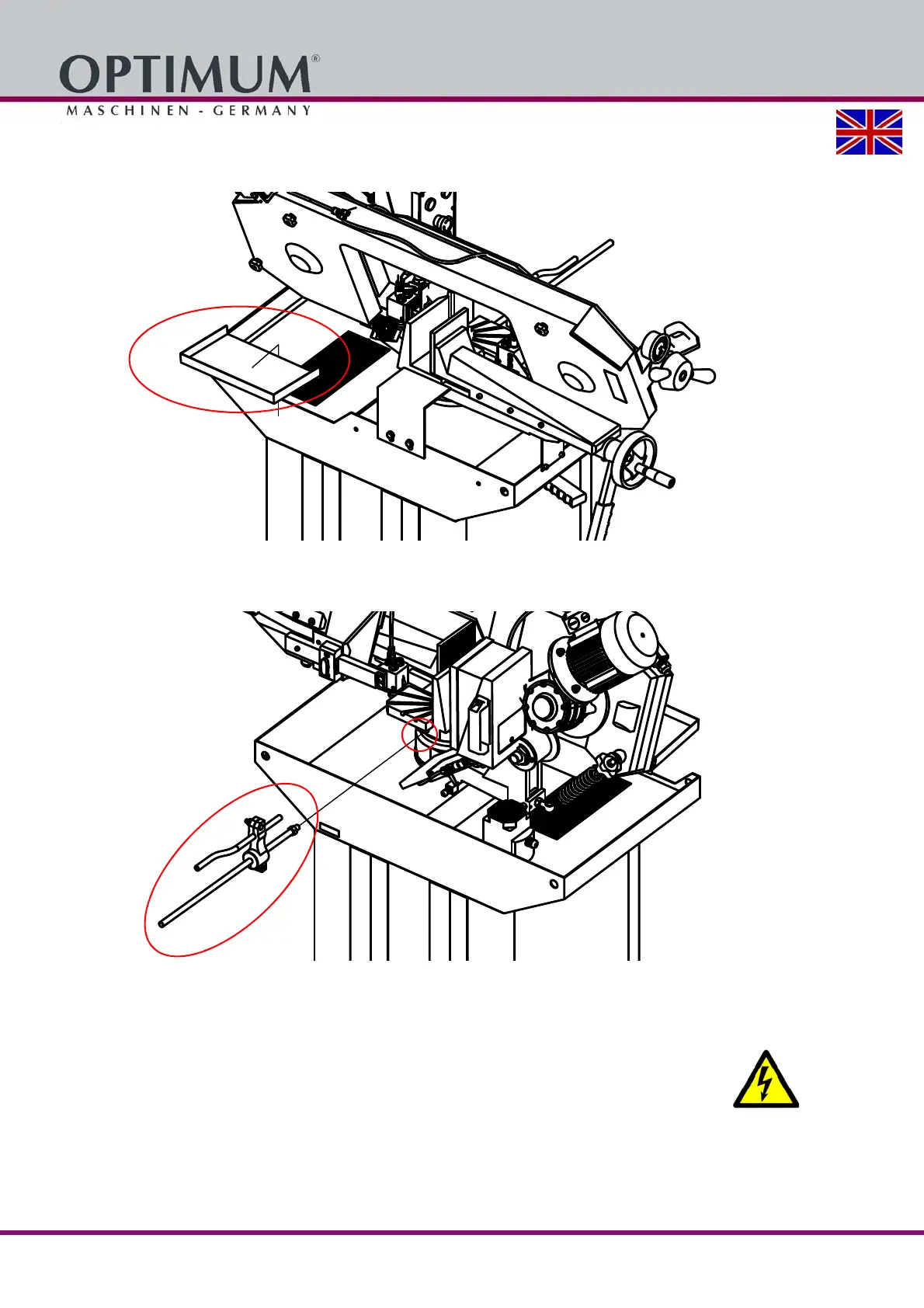

 Attach the collecting tray on the chip tray.
3.5.6 Material stop
 Turn the stop bar into the threaded hole and clamp the stop bar with the nut.
3.6 Electrical connection
3.6.1 Electrical connection S275N
WARNING!
The three-phase electrical connection of the S275N may only be performed by an
electrician or under the guidance and supervision of an electrician.
 Qualification of personnel on page 9
 Schaltplan - Wiring diagram 400V - S275N - Einkanalig - Single channel on page 55
 Schaltplan - Wiring diagram 400V - S275N - Zweikanalig - Double channel on page 56
