Operation
Version 1.2.4 - 2022-10-2628 Translation of original instruction
S275N | S275NV
EN
S275N_S275NV_GB_4.fm
4.2 Safety
Use the metal band saw only under the following conditions:
The metal band saw is in proper working order.
The metal band saw is used as prescribed.
The operating manual is followed.
All safety devices are installed and activated.
Eliminate or have all malfunctions rectified promptly. Stop the machine immediately in the event
of any abnormality in operation and make sure it cannot be started-up accidentally or without
authorisation. Notify the person responsible immediately of any modification.
Safety during operation on page 13

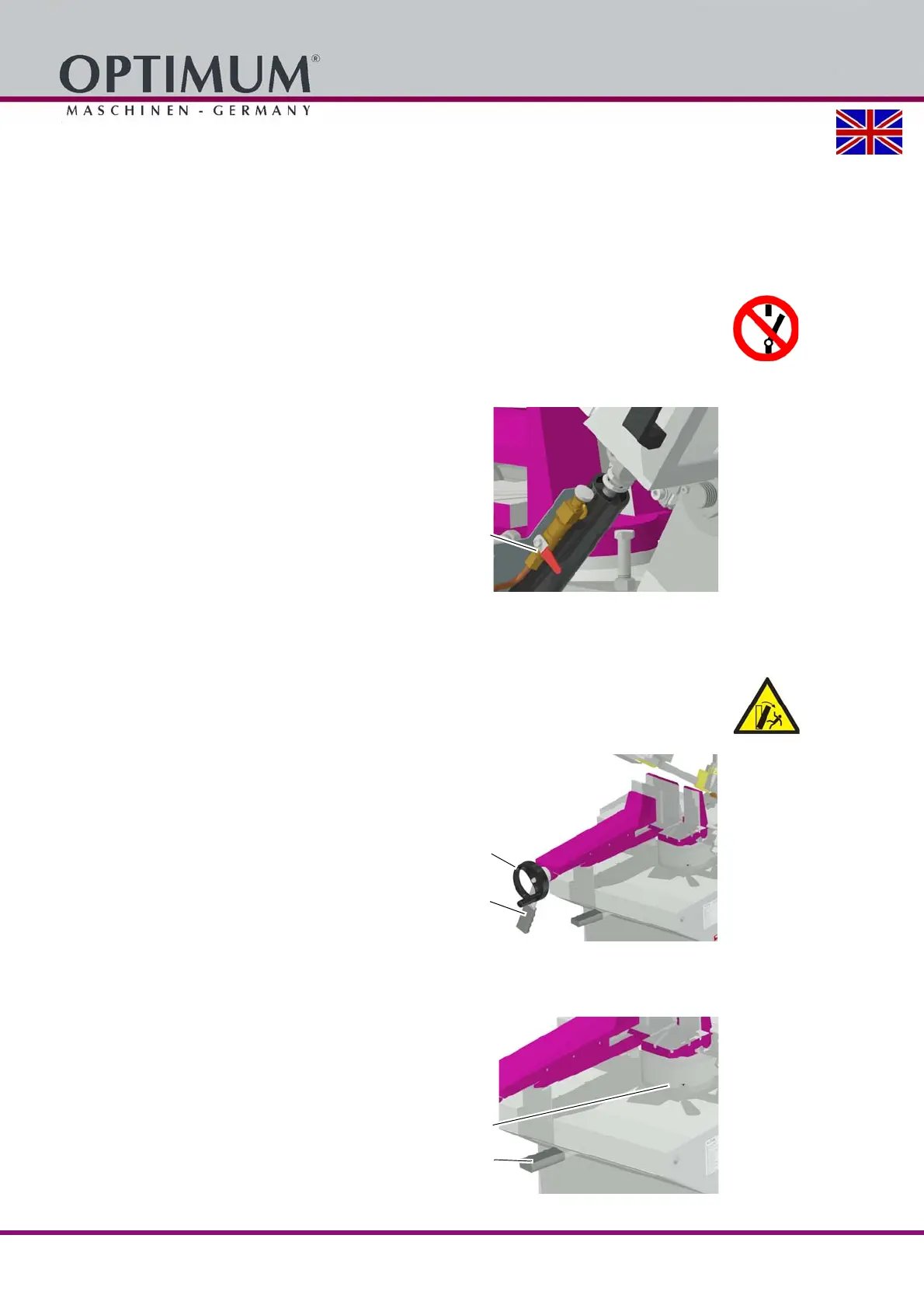

4.3 Inserting the workpiece
Raise the saw arch.
Close the stop cock to secure the arch
in a given position.
Img.4-1: Hydraulic feed
Place the piece to be cut in the workholder vice.
CAUTION!
Danger of tilting. Support long work pieces before pushing the piece to be cut into the
work-holder vice.
The saw arch can be regulated with continuous advance for angular cuts.
Position the clamp approximately 4
mm in front of the piece by turning the
hand wheel.
Secure the piece using the tightening
lever.
Img.4-2: Hand wheel and tightening lever
4.4 Setting of angle cut
To adjust angular cuts, place the locking
bar of the saw arch in the left-hand
position.
Turn the saw arch to the required cutting
position.
The scale which you need to adjust the
angle is on the bearing support.
Img.4-3: Locking lever
Hand wheel
Tightening lever
