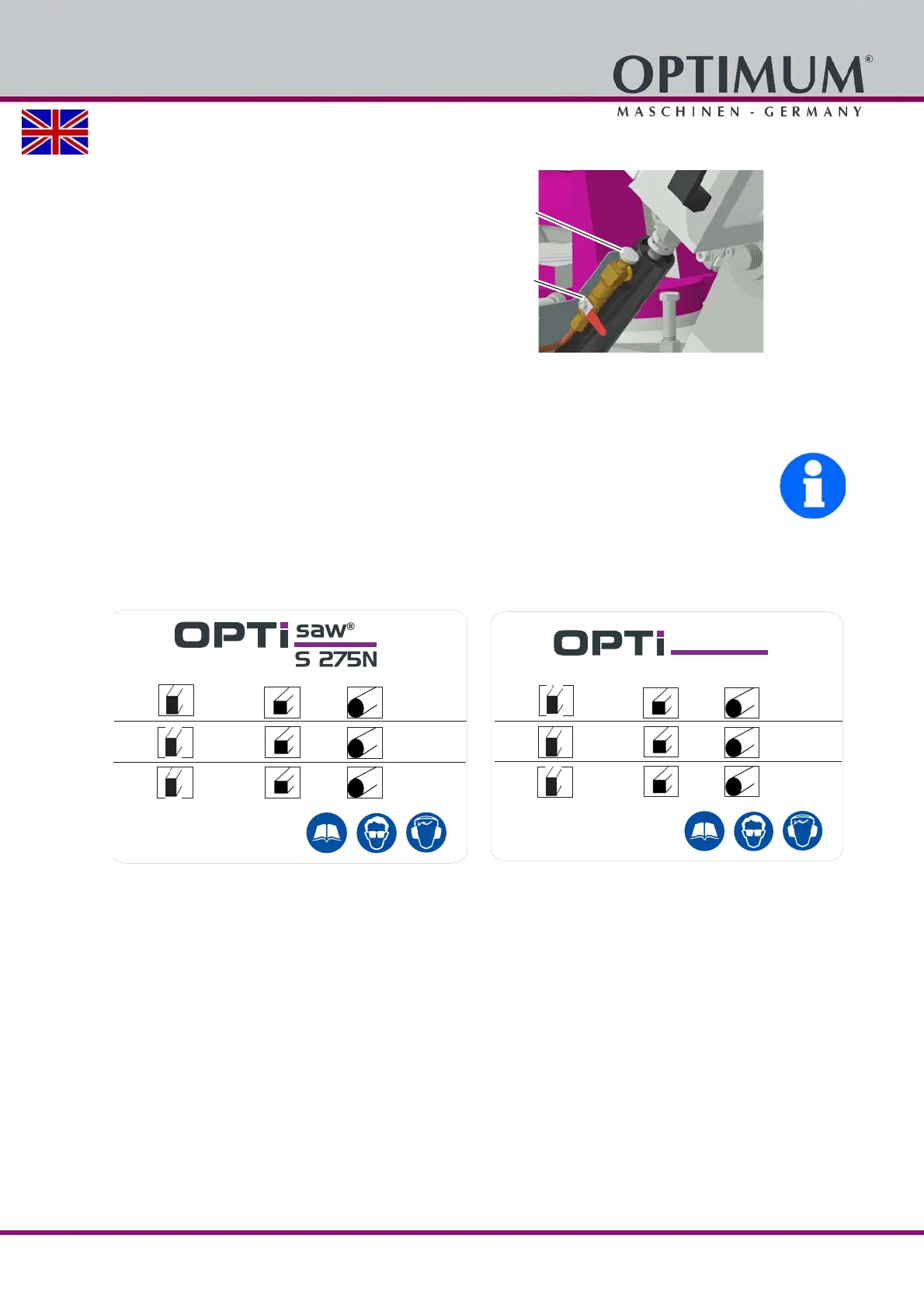

Optimum 3300260 - Hydraulic Feed; Cutting Area

Operation
Version 1.2.4 - 2022-10-26 31Translation of original instruction
S275N | S275NV EN
S275N_S275NV_GB_4.fm
4.12 Hydraulic feed
 Adjust the down speed of the saw arch
with the feed regulation valve.
 Open the stop cock.
Img.4-5: Hydraulic feed
The belt saw automatically switch off when you reach your end position.
Follow the same steps in reverse order to remove the work piece from the vice.
EMPIRICAL RULE !
The finer the tooth spacing and/or the thinner or smaller the work piece, the lower the feed
should be.
4.13 Cutting area
Possible cutting areas S275N and S275NV
Feed regulation
valve
Stop cock
Master Labels
60°
0°
245 x 150 mm
Ø 225 mm
45°
180 x 145 mm
Ø 145 mm
170 mm
90 x 120 mm
Ø 90 mm
90 mm
145 mm
5 - 8 TPI
6 - 10 TPI
10 - 14 TPI
Master Labels
60°
0°
245 x 150 mm
Ø 225 mm
45°
180 x 145 mm
Ø 145 mm
170 mm
90 x 120 mm
Ø 90 mm
90 mm
145 mm
saw
®
S 275NV
