31
DX17V
DE | GB

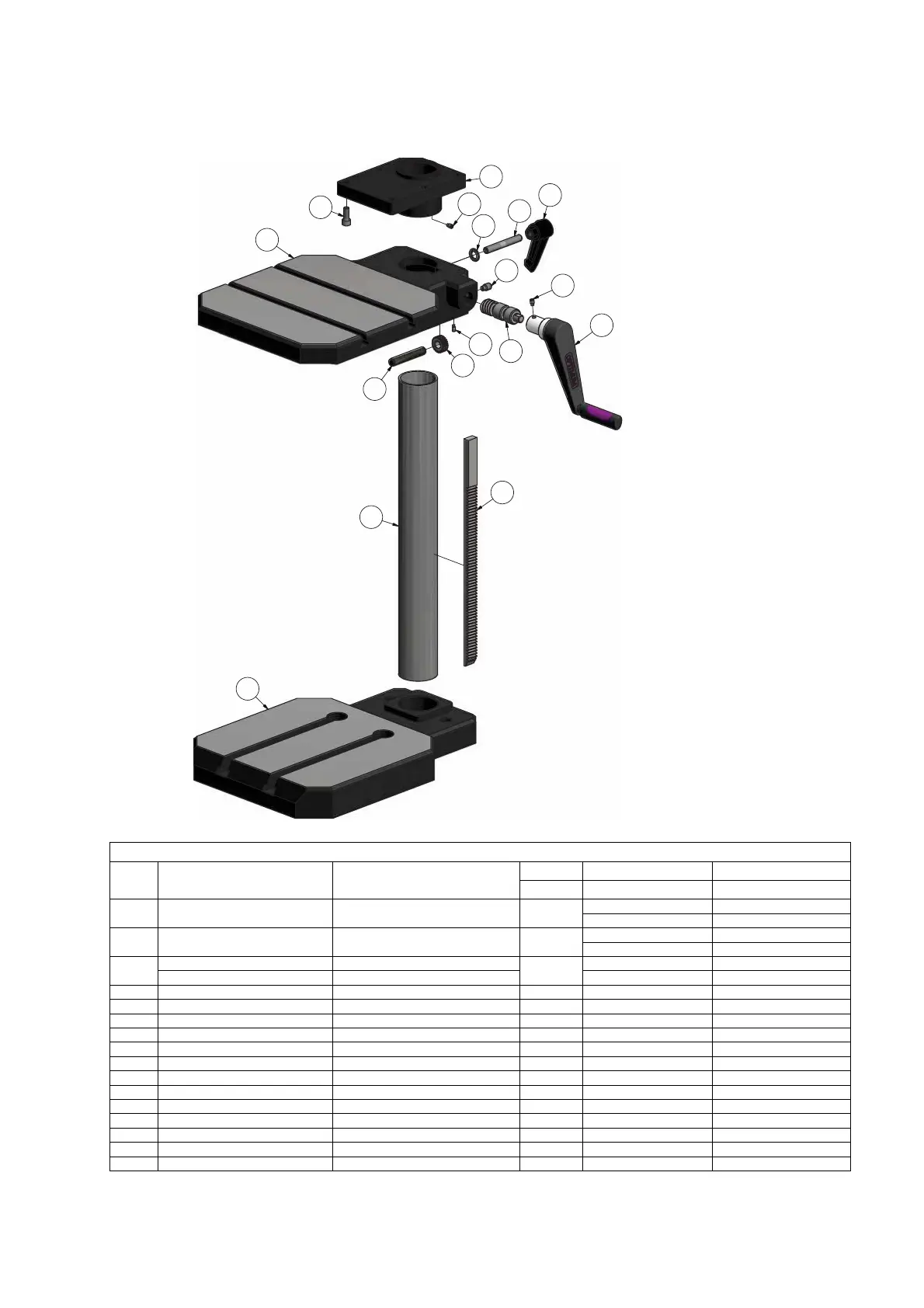

5.3 Säule und Bohrtisch - Column and drilling table
61
60
62
55
59
58
57
5
13
32
55
53
56
33
17
40
44
Ersatzteilliste Säule, Bohrtisch - Spare part list column, drilling table
Pos.
Bezeichnung Designation
Menge Grösse Artikelnummer
Qty. Size Item no.
5 Säule Column 1
bis Baujahr 09/2015 03020170051
ab Baujahr 09/2015 03020170052
13 Zahnstange Rack 1
bis Baujahr 09/2015 03020170131
ab Baujahr 09/2015 03020170132
17
Flansch, quadratisch Flange, square
1
alt/old 0302017017
Flansch Flange neu/new 03020170171
32 Maschinenfuss Machine foot 1 0302017032
33 Bohrtisch Drill table 1 0302017033
40 Innensechskantschraube Socket head screw 4 ISO 4762 - M8 x 20
44 Kurbel Crank 2 0302017044
53 Schnecke Worm 1 0302017053
55 Gewindestift Grub screw 3 ISO 4028 - M6 x 10
56 Gewindestift Grub screw 3 ISO 4028 - M10 x 16
57 Zylinderstift Cylindrical pin 1 ISO 8734 - 12 x 70 - A
58 Schneckenrad Worm wheel 1 0302017058
59 Gewindestift Grub screw 1 ISO 4028 - M5 x 10
60 Bolzen Bolt 1 0302017060
61 Klemmhebel Clamping lever 1 0302017061
62 Scheibe Washer 1 0302017062
