Version 1.0 dated 2019-01-08 Page 45Translation of the original instructions
B13 basic | B14 basic | B16 basic GB
B13-B14-B16_basic_GB.fm
OPTIMUM
MASCHINEN - GERMANY
®
3.3 Installation and assembly
3.3.1 Installation site requirements
Organize the working area around the drilling machine according to the local safety regulations.
WARNING!
The drilling machine must be connected to the substructure.
INFORMATION
In order to attain good functionality and a high processing accuracy as well as a long service life
of the machine, the place of installation should fulfil certain criteria.
Please observe the following points:
The device must only be installed and operated in a dry and well-ventilated place.
Avoid places close to machines which cause chips or dust.
The installation site must be vibration-free, i.e. located away from presses, planing
machines, etc.
The substructure must be suitable for the bench drill. Pay attention also to the load-bearing
capacity and evenness of the floor.
Provide for sufficient backlight (Minimum value: 500 Lux, measured at the tool tip). In the
event of a lower level of lighting, additional illumination must be provided, e.g. by means of
a separate workplace light.
CAUTION!
Arrange the machine's connection cable in such a way that it will not cause a tripping
hazard.
INFORMATION
The power plug of the bench drill must be readily accessible.
3.4 Assembly
WARNING!
Danger of crushing when assembling and installing the machine components.
3.4.1 Mounting of base and drill column
INFORMATION
To mount the bench drill, you will need a 17 mm hexagonal wrench and the hexagonal screws
supplied.
Put the stand on the floor and fix the drill column to the stand. Hexagon bolts are provided
to fix it.

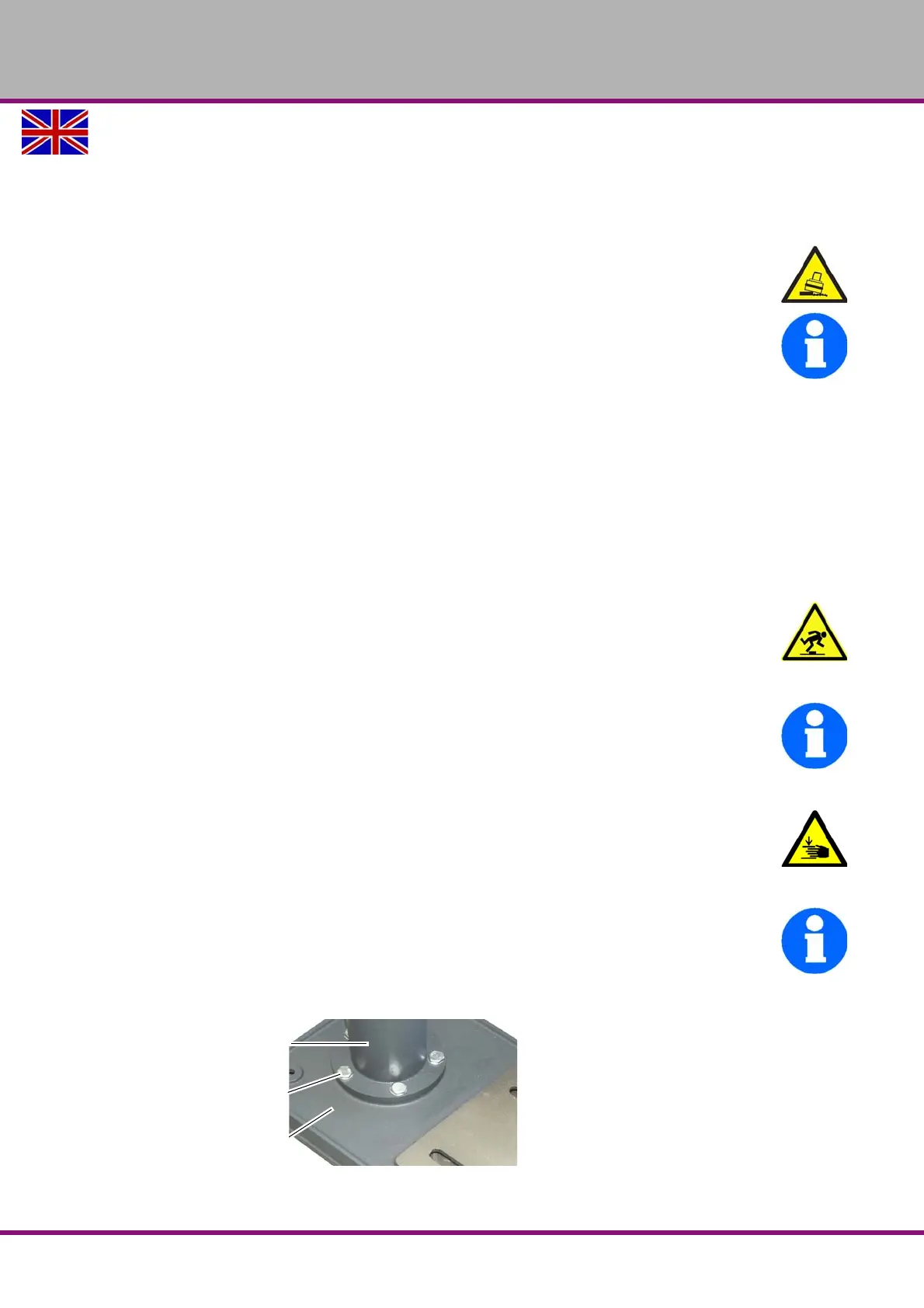

Img.3-1: Stand
Drilling column
Hexagon screws
Base
