Version 1.0 dated 2019-01-08Page 48 Translation of the original instructions
B13 basic | B14 basic | B16 basicGB
B13-B14-B16_basic_GB.fm
OPTIMUM
MASCHINEN - GERMANY
®
4 Operation

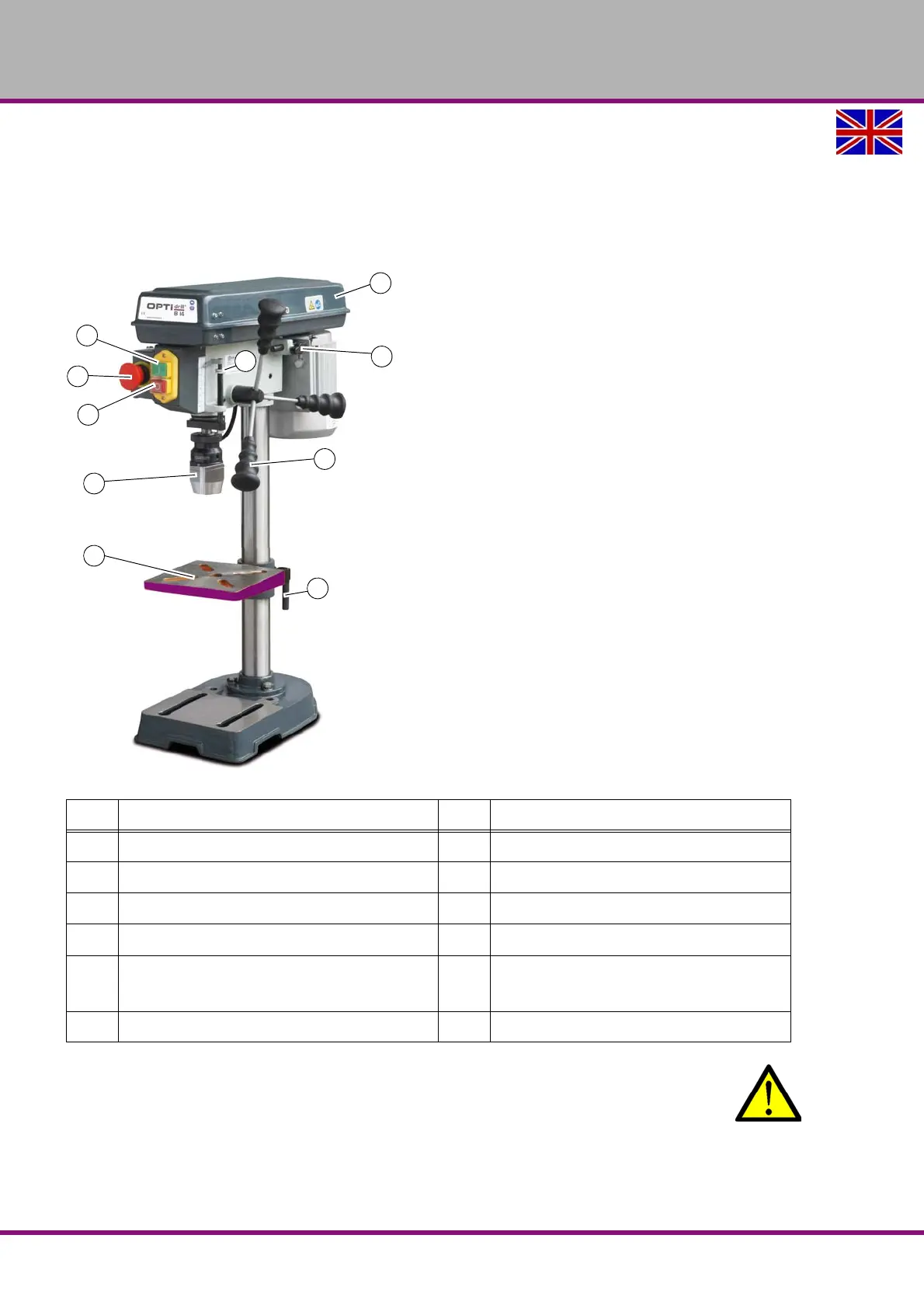

4.1 Control and indicating elements
CAUTION!
The EMERGENCY OFF switch may only be operated in an emergency. An operational
shutdown of the machine with the EMERGENCY OFF switch is not intended.
Otherwise the service life of the EMERGENCY OFF switch will be considerably reduced.
Pos. Designation Pos. Designation
1
On
7
Clamping screw for belt tension
2
Emergency stop switch
8
Lever for spindle sleeve feed
3
Off
9
Drilling table
4
Drill depth stop
10
Table height adjustment
5
Drill chuck ( B14, B16 )
B13 - Gear rim drill chuck
11
Adjustment for the inclination of the table
6
Belt drive with housing
12
Clamping lever
