Handling
Version 2.1.1 - 2020-07-27 31Translation of original instruction
B40 GSP EN
B40GSP_GB_4.fm
Select the speed of the spindle
sleeve feed actuating the
selector rotary switch:
- 0.10 mm / turn
- 0.20 mm / turn

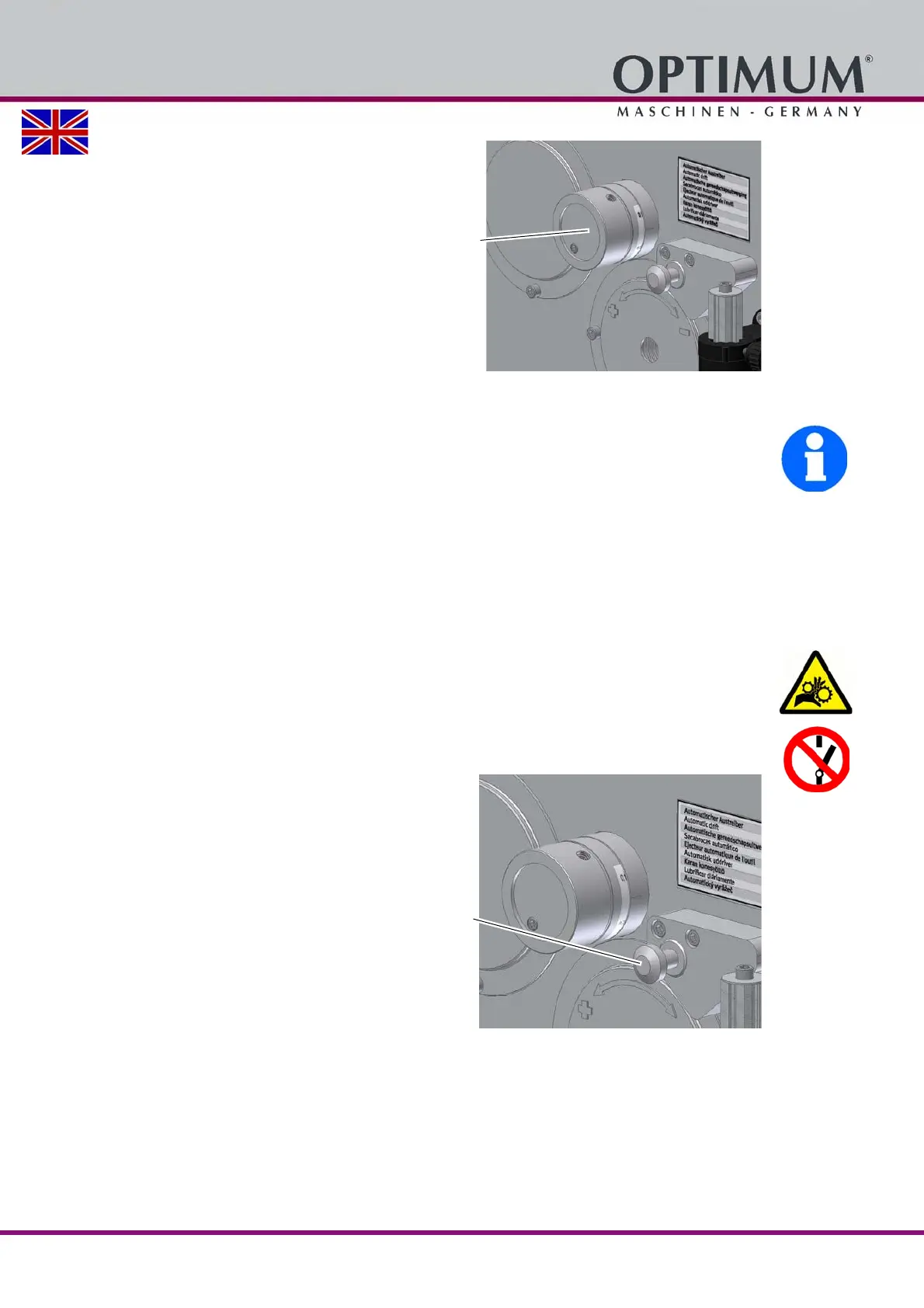

Img.4-5: Selector rotary switch for the speed of the spindle feed
INFORMATION
The higher the preset number of revolutions, the greater the feed speed in the sleeve. Adjust
the correct speed depending on the used material and on the drill diameter.
Adjust the depth stop Drill depth stop on page 30.
Press the feed lever upward. This way the sleeve feed is activated.
When the preset depth is reached, the drill depth stop pushes the feed lever mechanically
down and disables the automatic drill feed. The drilling sleeve returns to the top position by
spring force.
4.5 Tool holder
4.5.1 Unfitting the drill chuck
WARNING!
Perform the following work only when you have switched off and locked the main switch.
Disassembly with separate drill drift
Move the sleeve downwards
until you can introduce the
locking pin completely.
Turn the drilling spindle until
the openings of the sleeve
and of the drilling spindle are
superimposed. Switch the
gear selector to a higher
speed level in order to facili-
tate the turning of the sleeve.
Img.4-6: Locking pin
