4.12 Swivelling the drill-mill head
The drill-mill head may be swivelled 45° to the right and to the left. Four screwings need to be
loosened.

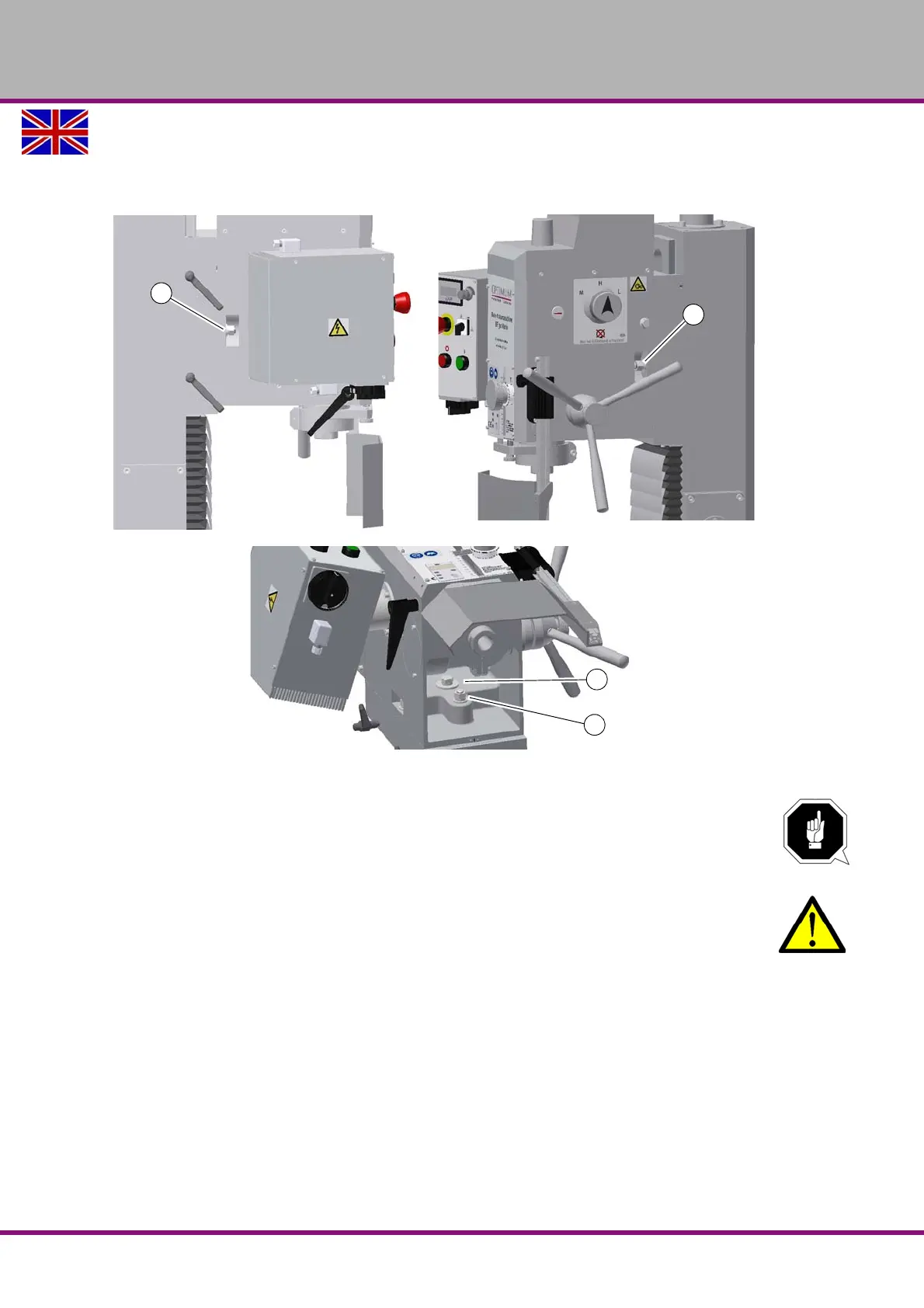

Img.4-6: Clamping screws
ATTENTION!
The drill-mill head can be rotated much further. When slewing it further on gear oil might
escape.
CAUTION!
If the screws are completely unfastened, the drilling-milling head might fall down.
When slewing the working head, only unfasten the screws as far as necessary to be able
to perform the settings. After having set the slewing angle, retighten the fixing screws.
