Optoma HD21 - EDID Setup Procedure; DDC Key-In Procedure

HD20/HD200X/HD2200/HD20LV/HD21/HD23
Condential
6-3
6-4 DDC Key-In Procedure
(VGA, HDMI 1, HDMI 2
Interface)
1. Plug VGA cable in VGA port and DVI-HDMI in
HDMI1 port.
2. Click on "EDID.exe" to execute EDID program.

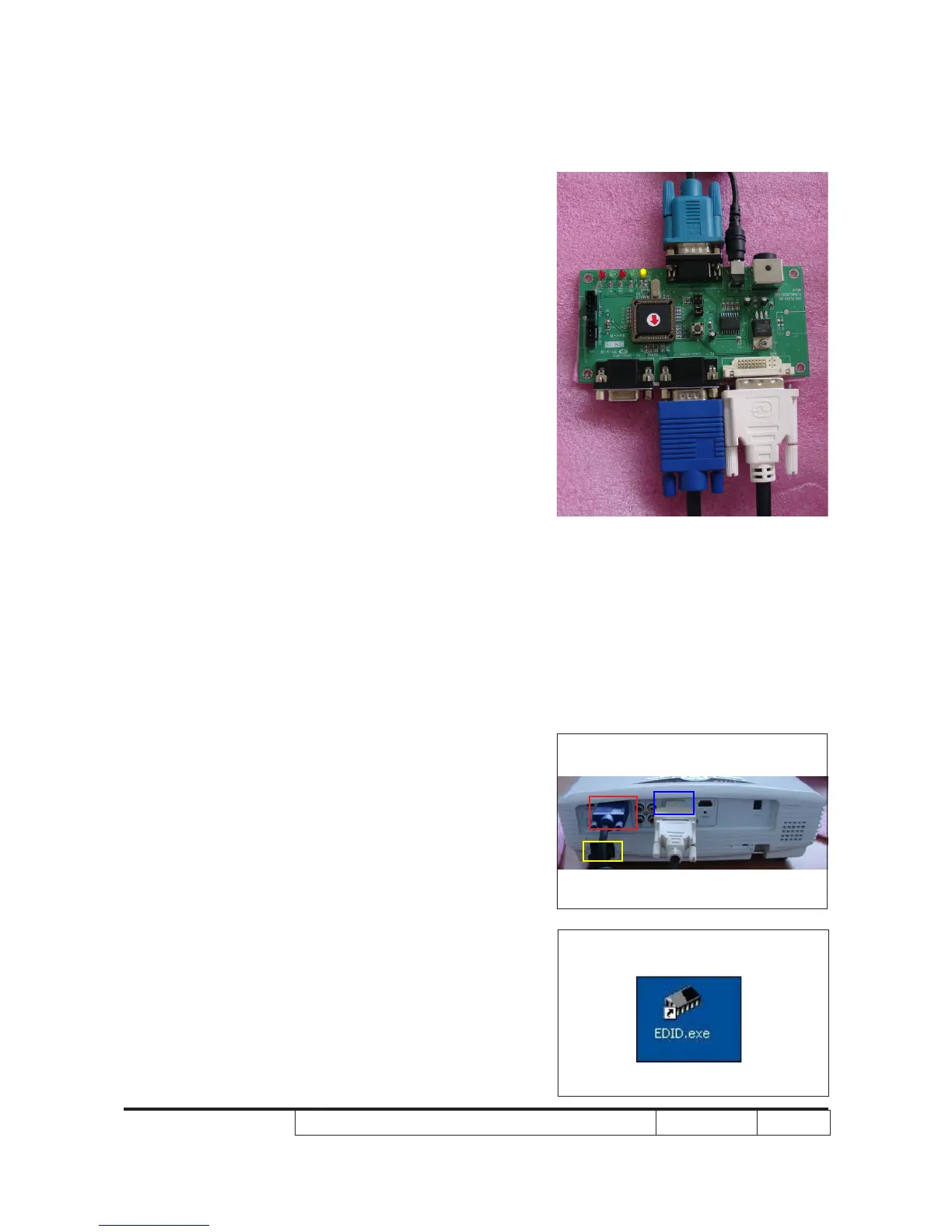

6-3 Setup Procedure
1.
Connect all ports
- Power adapter to xture JP2
- Fixture P1 to PC COM Port
- Fixture P2 to Projector VGA
- Fixture P3 to Projector HDMI
- Power on xture
- Plug in power cord to unit
Note: Conrm JP3 is in “Close” status.
VGA
HDMI1
Power
JP2
Adapter
RS232 Cable
P1
P3
DVI-DVI Cable
VGA-VGA Cable
P2
