S310e/X312
Condential 2-2

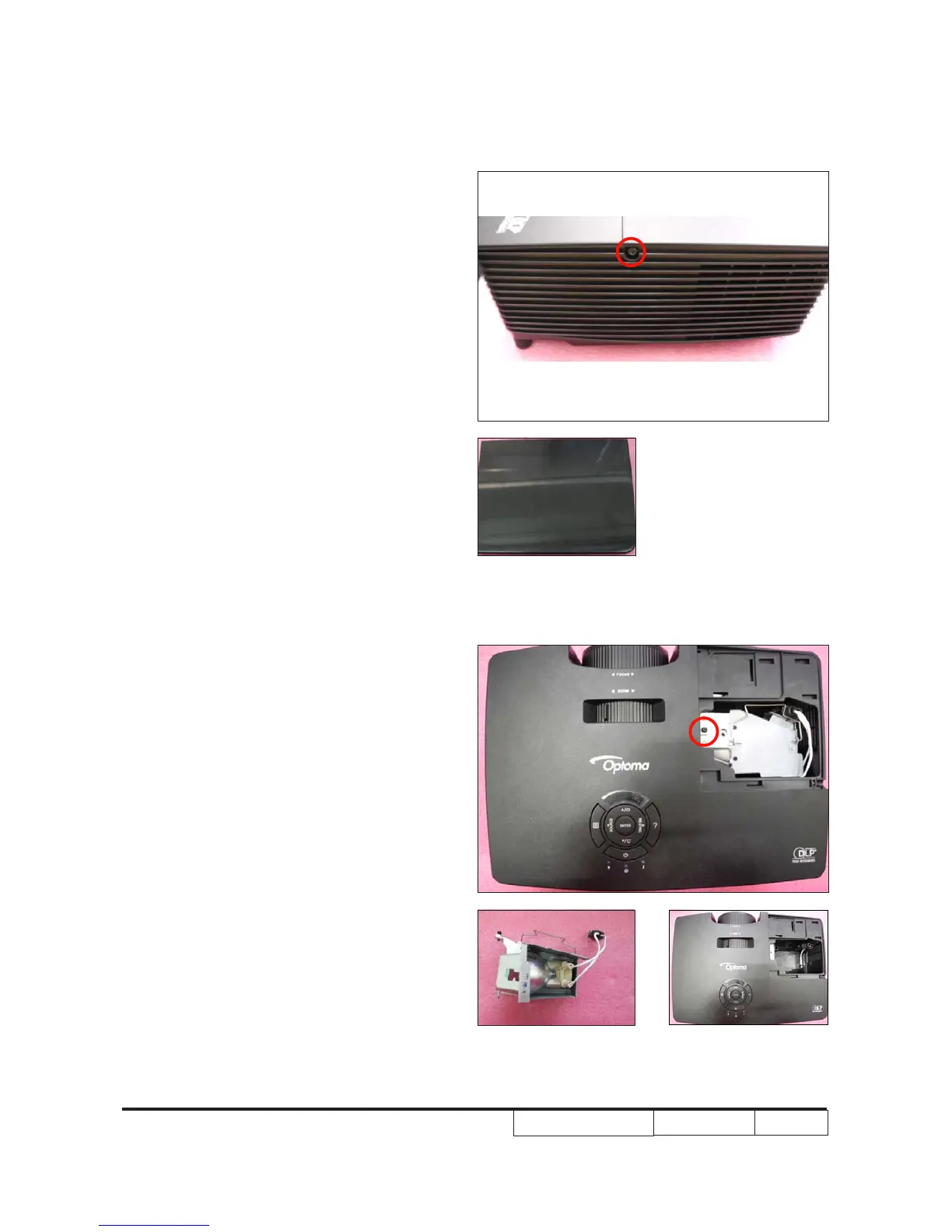

2-2 Disassemble Lamp
Cover Module
1. Loosen 1 M3*8.5 screw (as red circle) on
the lamp cover.
2. Disassemble the lamp cover module.
Lamp Cover
2-3 Disassemble Lamp
Module
1. Loosen 1 M3.5*8.5 screw (as red circle)
on the lamp module.
2. Take off the lamp module.
