Optoma S310e - EDID Key-In Procedure (HDMI)

S310e/X312
Condential
6-6
6-5 Setup Procedure
(HDMI)(Only for X312)

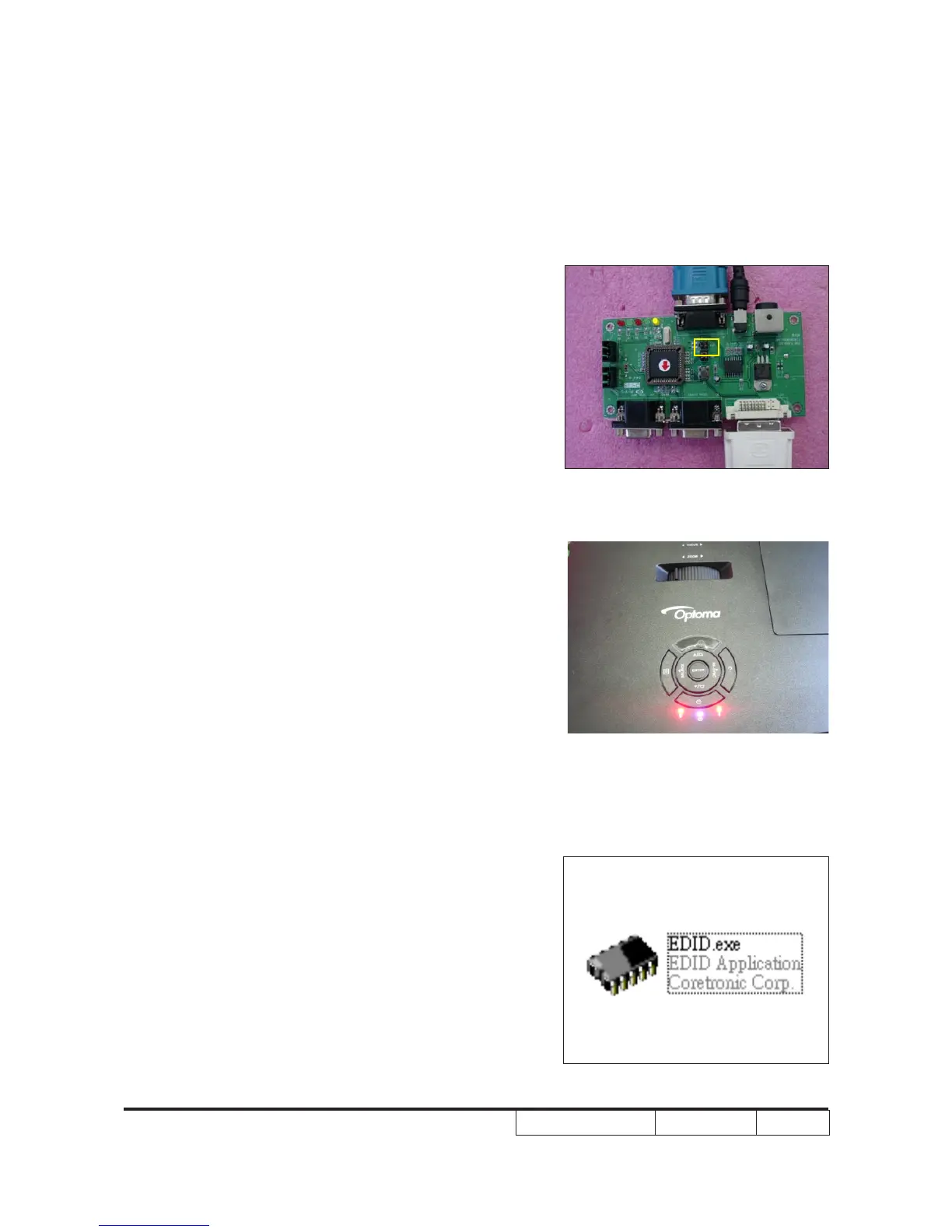

1. Connect all ports
(1) Connect P1 of xture with COM Port of
PC/Laptop by RS232 Cable.
(2) Connect P2 of the xture with HDMI(M)
to DVI(F)Adapter by DVI Cable.
(3) Plug Power Adapter to JP1 of xture.
(4)Connect HDMI to DVI cable to the projector.
(5) Hold on "power" button and plug in the power
cord, release the “power” button until all LEDs
solid on.(as right picture shows).
6-6 EDID Key-In Procedure
1. Execute EDID Program
- Click "EDID" to execute EDID program.
RS232 Cable
P1
Adapter
JP1
JP3
HDMI to DVI
Cable
P2
