S310e/X312
Condential 2-16
2-13 Disassemble Bottom
Cover Module

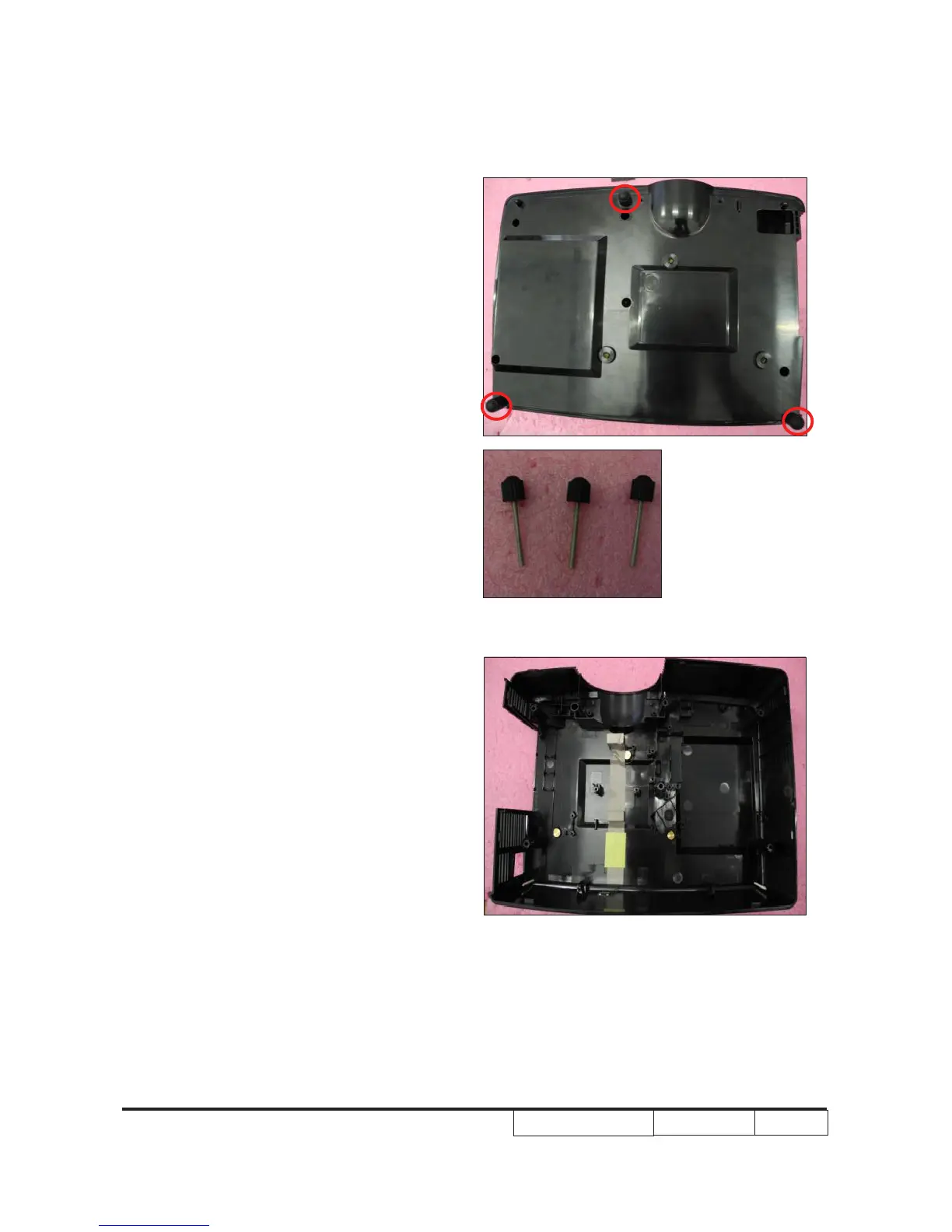

1. Unscrew 3 adjust feet. (as red circle).
2. The remaining is Bottom Cover Module.
3. Disassemble is completed.
Bottom Cover
