Optoma S310e - Disassemble Engine Module and Main Board Module

S310e/X312
Condential 2-8
2-11 Disassemble Engine
Module and Main Board
Module

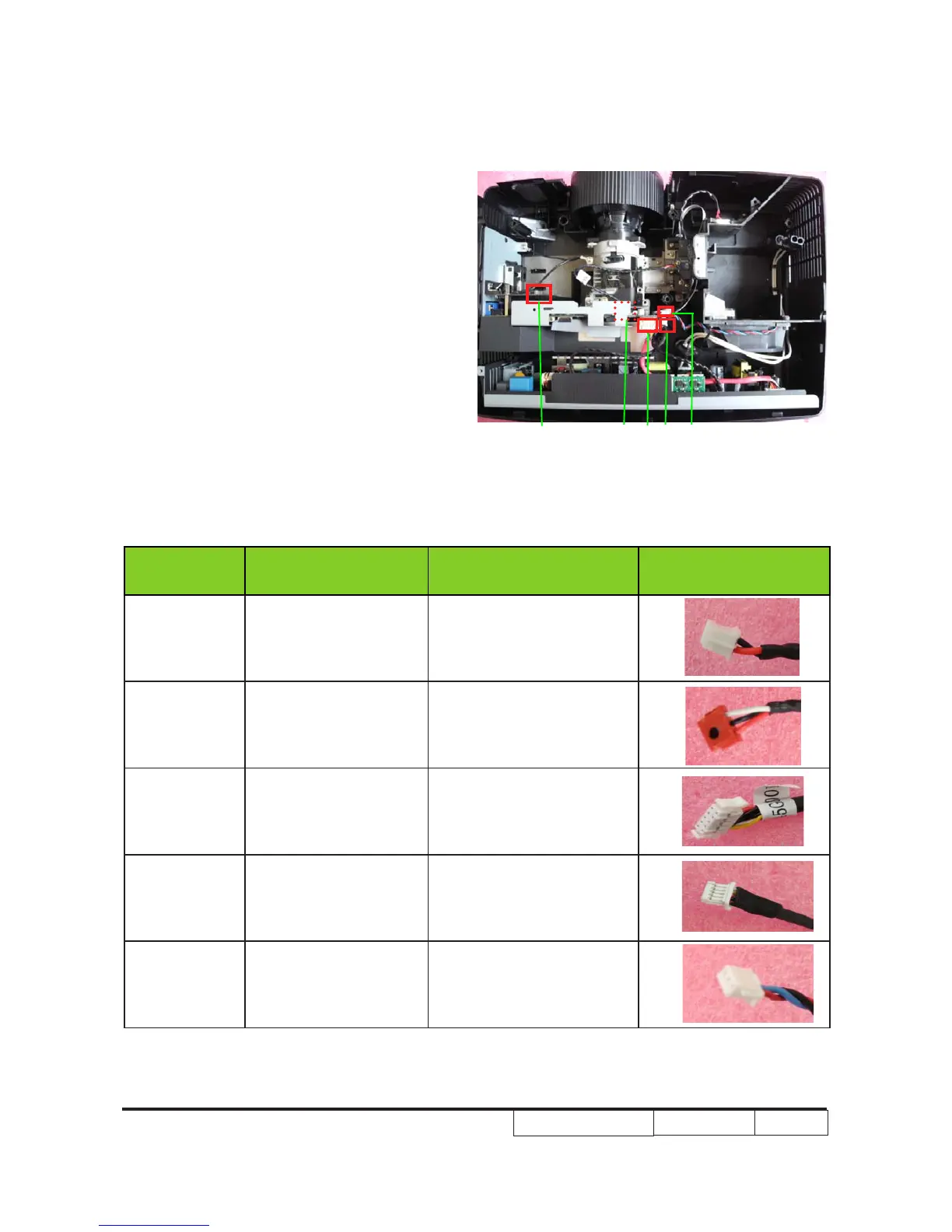

Please refer to the table as below for
details of each connector.
Item
Male Conector on
Main Board
The key feature Figure
A
Speaker
(Only for X312)
Compose of Red/Black
Wire (2 pin)
B Photo Sensor
Compose of Red/White/
Black Wire (3 pin)
C LVPS A Red wire tube (10 pin)
D LVPS B Black wire tube (5 pin)
E Fan
Compose of Red/Blue/
Black Wire (3 pin)
A
D
C
B
E
