Digital Input:

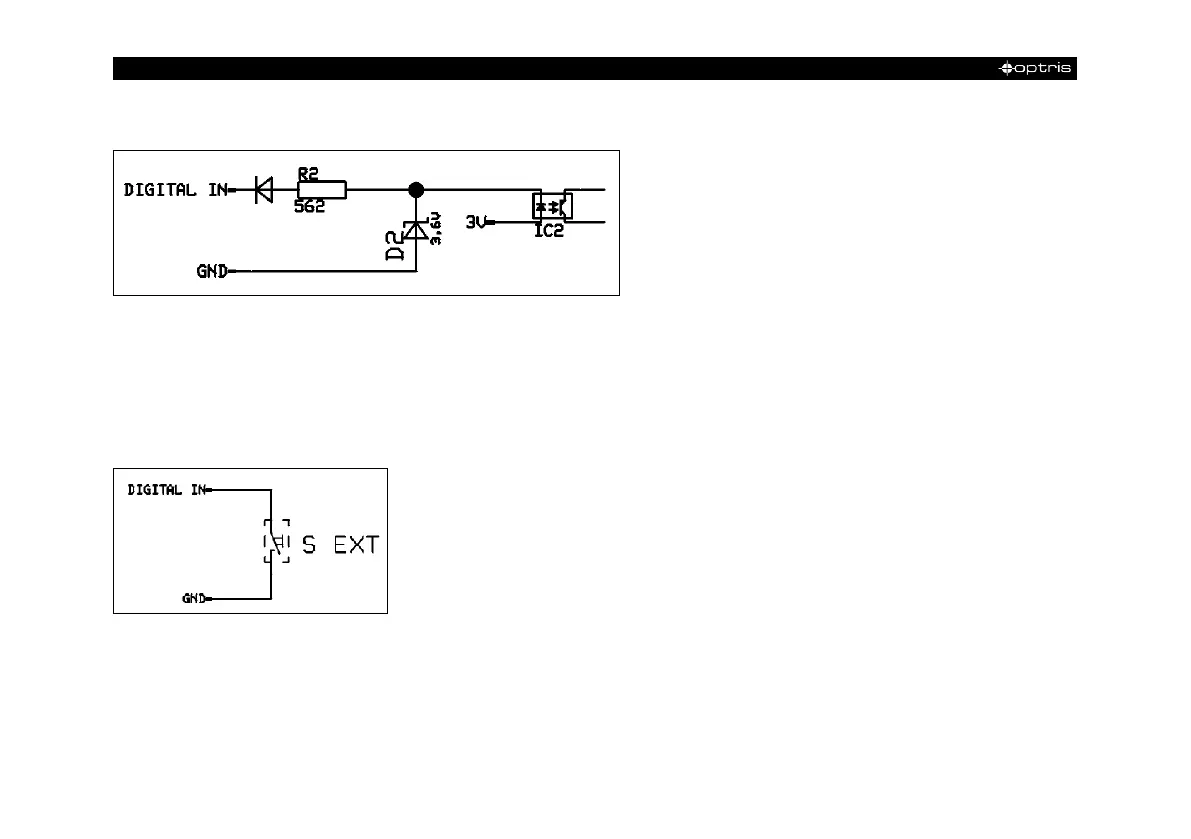

Figure 55: Digital input
The digital input can be activated with a button to the Xi GND-Pin or with a low level CMOS/TTL signal: Low
level 0…0.6 V; High level 2…24 V
Example Button:
Figure 56: Button
