-48 -
4 Electrical Installation
At the back side of the Xi there are the two connector plugs (see Figure 22 and Figure 23).

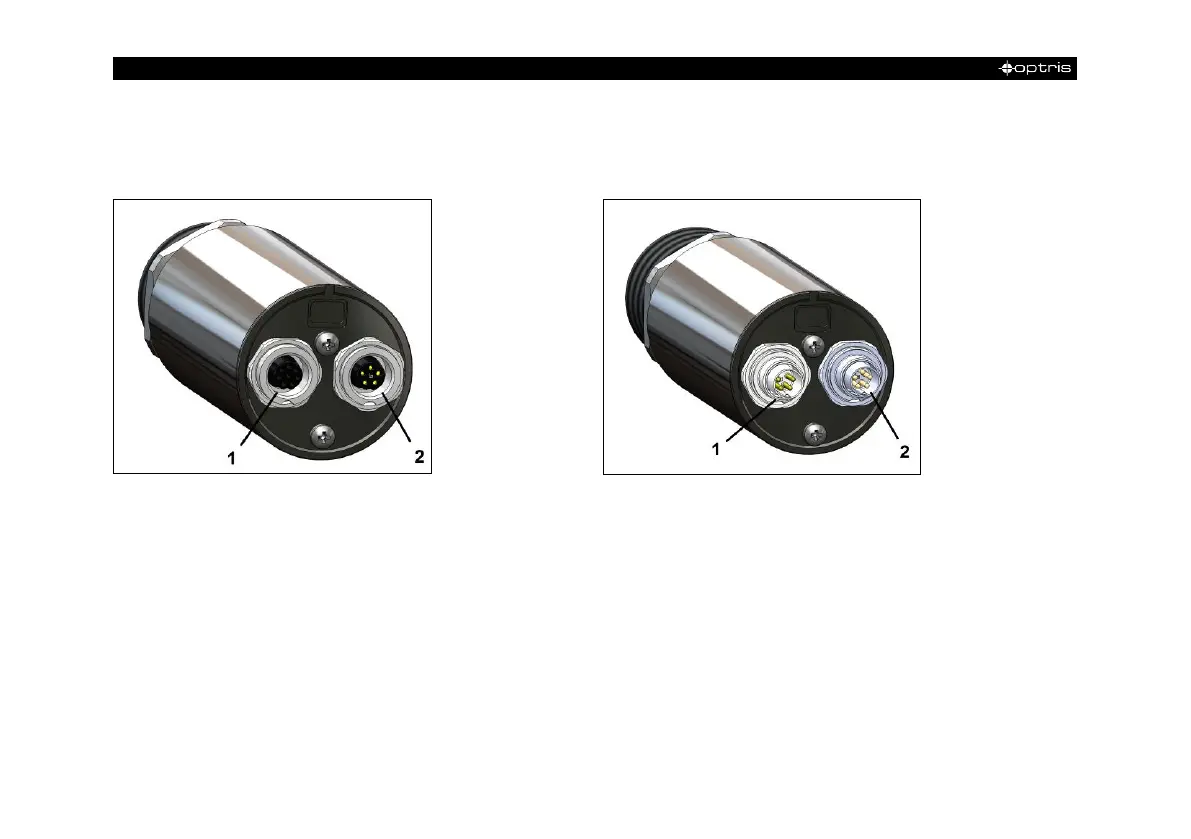

Figure 22: Backside of the Xi 80/410 with connectors
Figure 23: Backside of the Xi 400 with connectors
1
Plug for USB / Ethernet
1)
/ PoE cable
2
Plug for in- and outputs or RS485
1
Plug for USB cable
2
Plug for PIF cable
1)
When using the Ethernet connector, a 5...30 V DC power supply must be ensured via the terminal block
