optris Xi 80 User Manual

-26 -
3 Mechanical Installation
3.1 Dimensions
The Xi is equipped with a metric M30x1 thread and can be installed either directly via the sensor thread or
with help of the supplied mounting nut (standard) and adjustable mounting bracket (standard) to a mounting
device available.

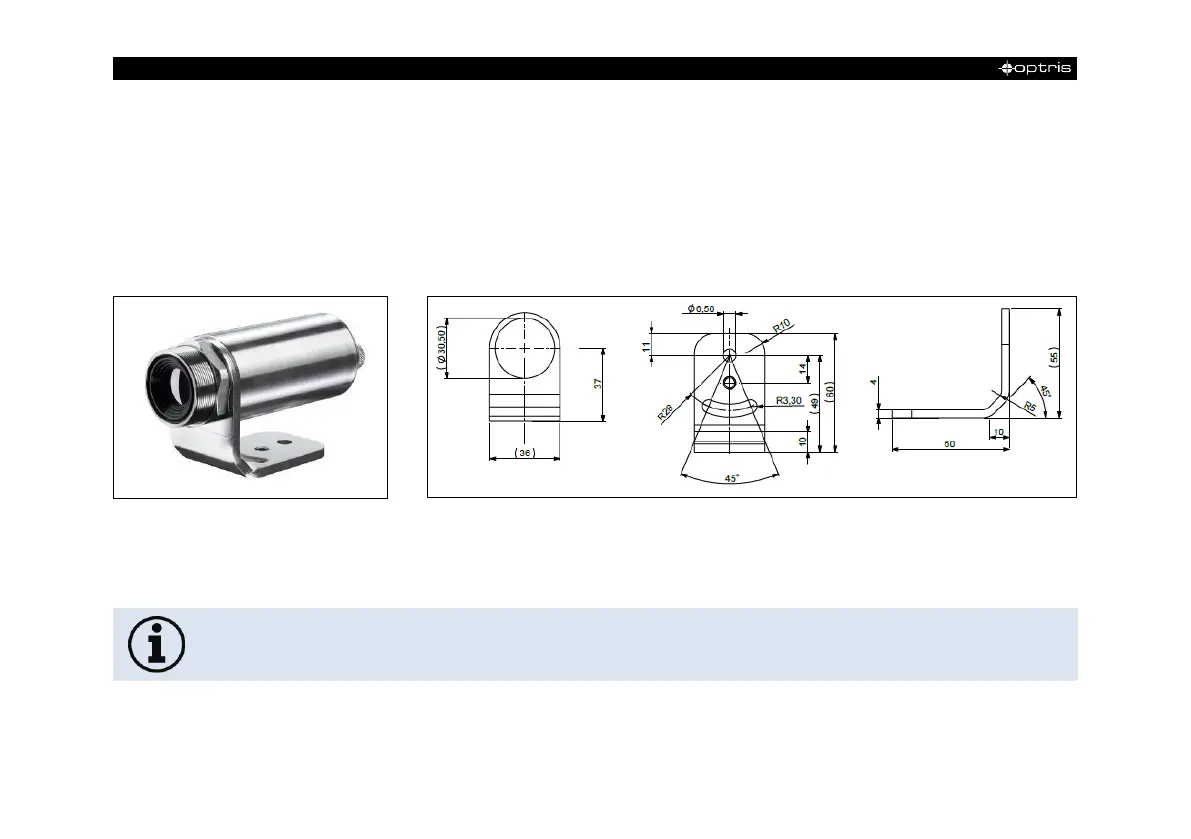

Figure 3: Xi with mounting bracket
Figure 4: Mounting bracket, adjustable in one axis, with tripod thread
[Order No. - ACXIFB] – standard scope of supply
For correct orientation, the USB port must be on the left side and the PIF port on the right side,
see Figure 5 or Figure 6.
