optris Xi 80 User Manual

Electrical Installation 63-
4.1.6 Industrial Process Interface for Xi 400 (optional)
For use in industrial environment the industrial process interface with 500 V ACRMS isolation voltage between
Xi and process is available (connection box with IP65, 5 m, 10 m or 20 m standard or high temperature cable
for camera connection, terminal for process integration). [►Appendix F – Wiring diagrams PIF]
Pin assignment PIF cable (industrial process interface)

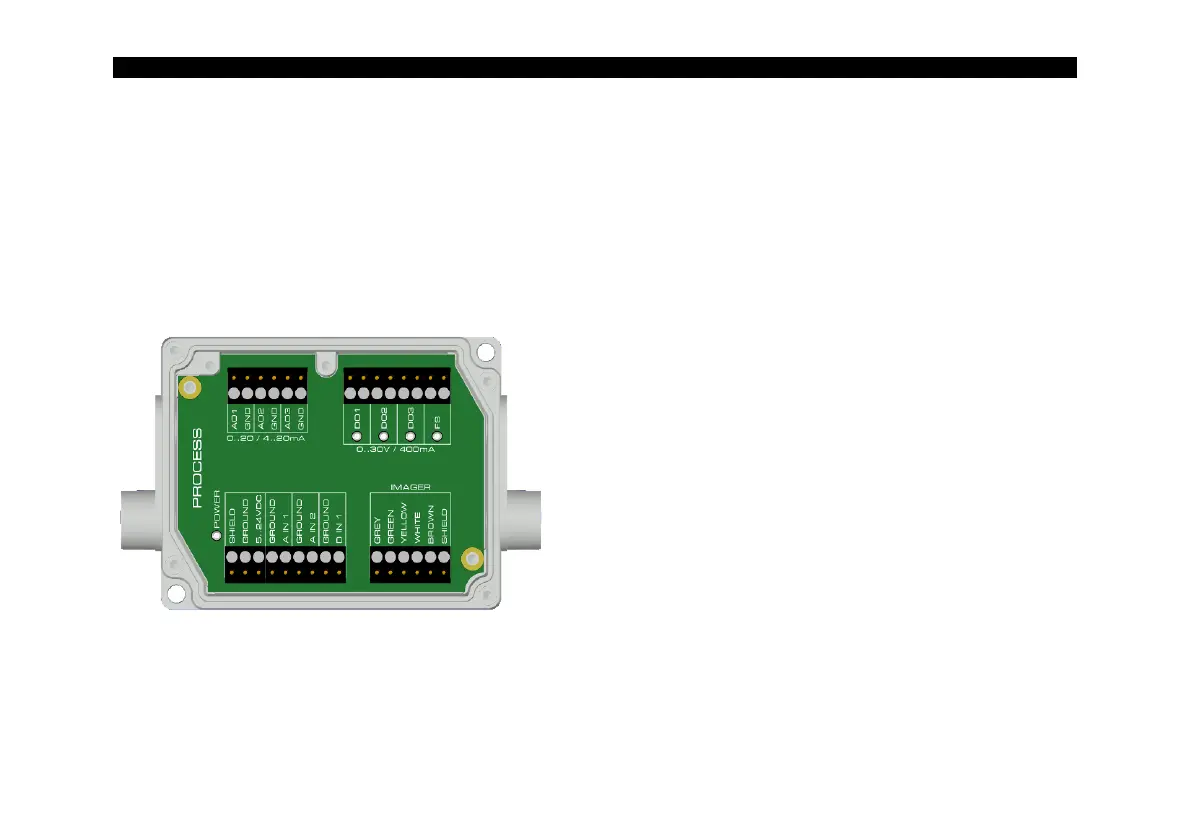

Figure 31: Connections of the industrial Process Interface for Xi 400
GREY
Interrupt
GREEN
SCL (I²C)
YELLOW
SDA (I²C)
WHITE
3.3 V
BROWN
GND
SHIELD
GND
