optris Xi 80 - Page 33

Mechanical Installation 33-

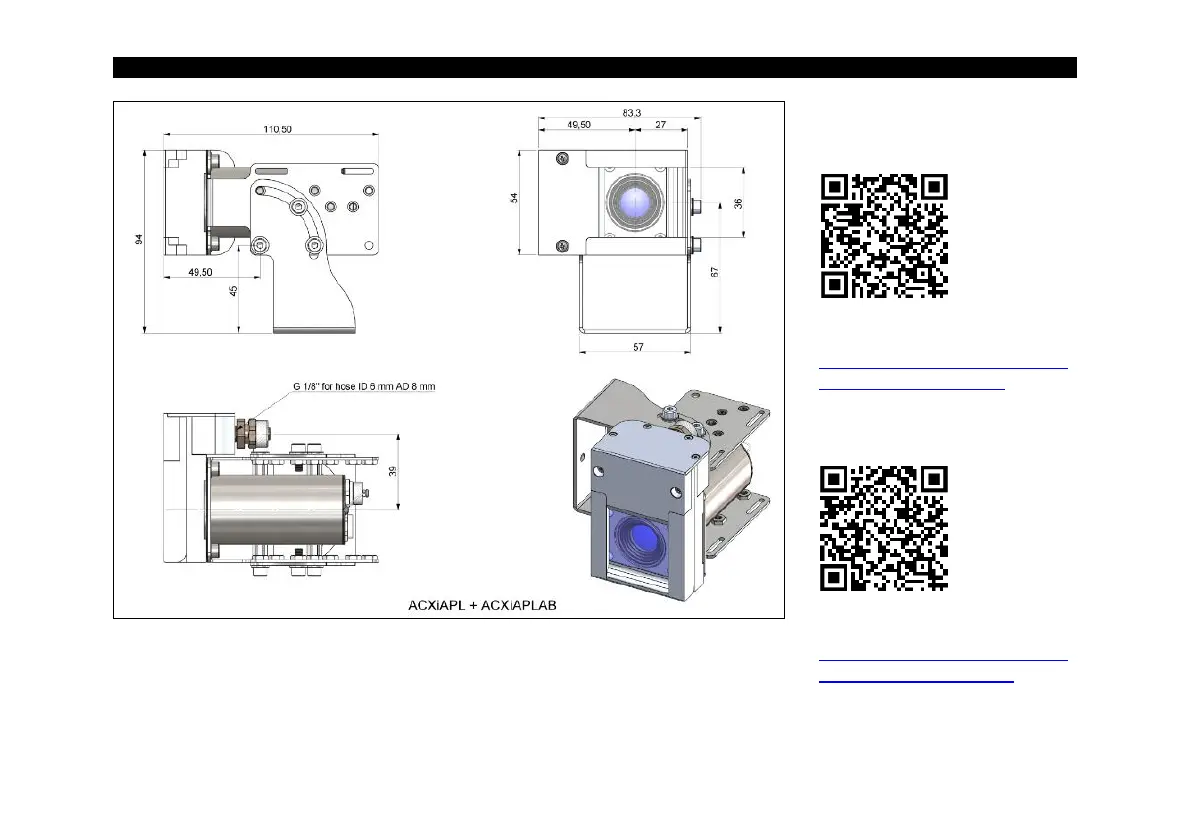

Figure 10: Laminar air purge with Si protective window (ACXIAPL) and mounting
bracket (ACXIAPLAB), dimensions [mm]
How-to video Xi 80
https://www.optris.global/mounting-
the-air-purge-unit-on-xi-80
How-to video Xi 400
https://www.optris.global/mounting-
the-air-purge-unit-on-xi-400
