Electrical Installation 53-

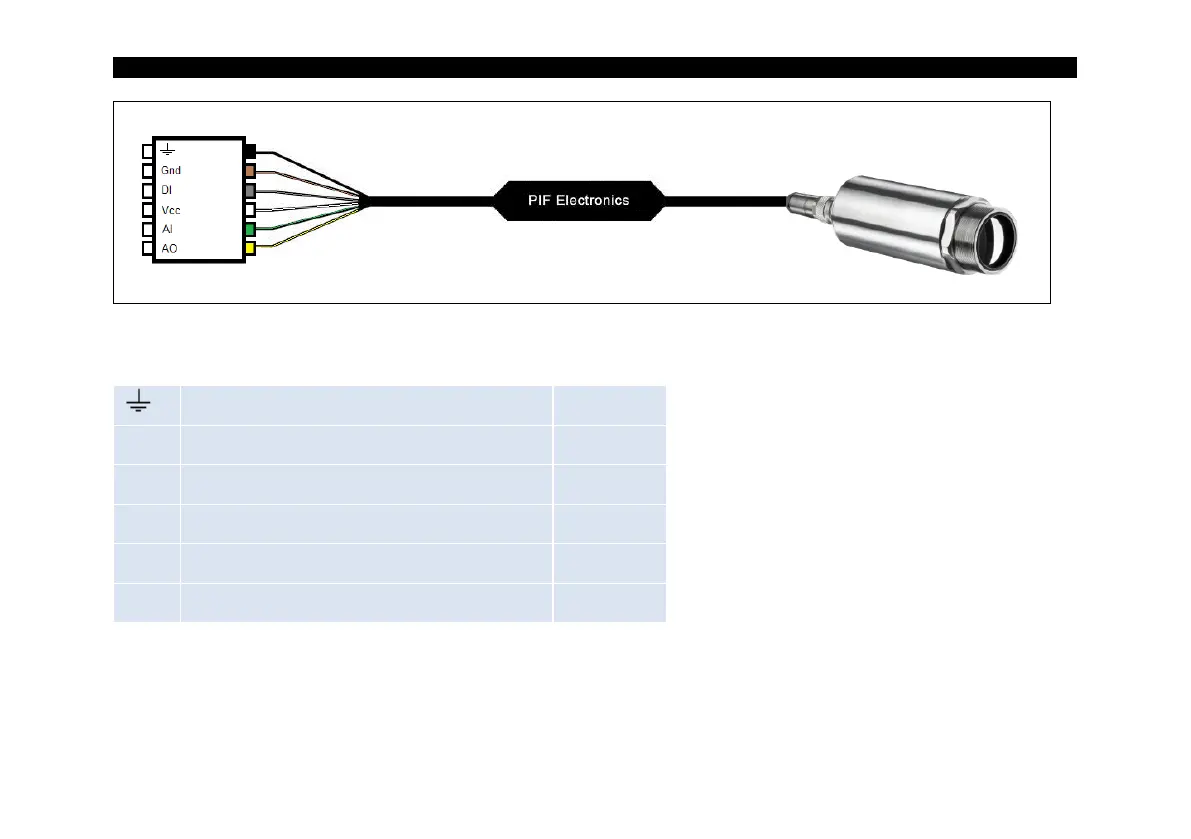

Figure 25: Configuration Standard Process Interface (PIF) Xi 400
Shield
Black
Gnd
Ground
Brown
DI
Digital Input
Gray
Vcc
Power supply, 5…24 V DC
White
AI
Analog Input
Green
AO
Analog Output
Yellow
