• 12V Power USB Header
• IDN Port RS422/RS232
• Series 2 Cash Drawer x2
The Series 2 ports are more compact than the previous generation and feature an
expanded number of pins to accommodate more options on the cash drawer
interface. You can use an adapter cable for backwards compatibility to existing
cash drawers.
• USB 2.0 x2
• High Definition 2nd Display Output Connector
• Customer Display
The Customer Display port supports existing pole displays and the Workstation 6
integrated customer display.
• High Speed USB x2
• 10/100/1G Ethernet
• 24V Power USB (620 and 650 only)
• RJ-45 Powered Serial (0/5/9/12V)
– 2 available on the 610
– 1 available on the 620 and the 650
• RJ-45 Serial
• Microphone In/Headphone Out

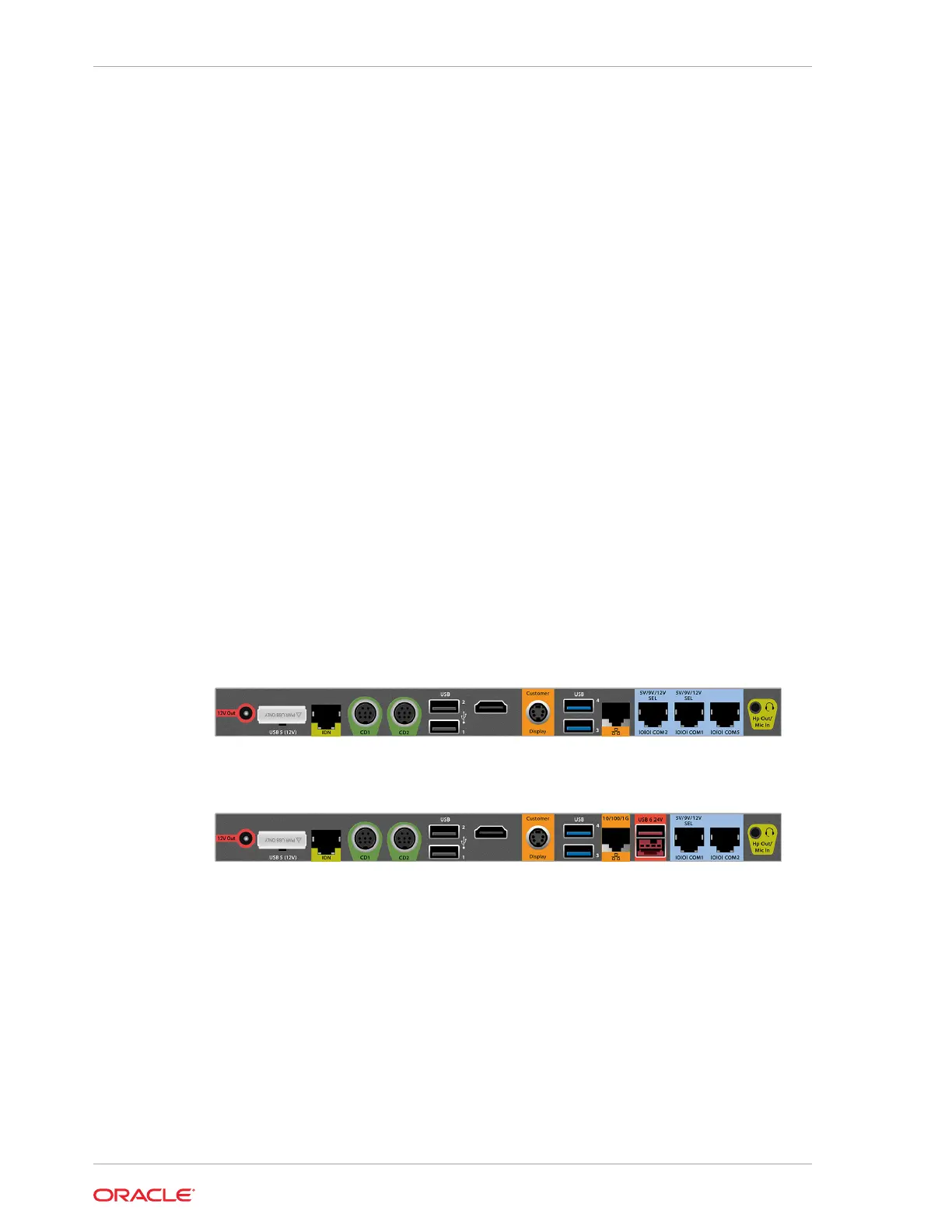

Primary I/O Panel of the MICROS Workstation 610
Primary I/O Panel of the MICROS Workstation 620 and 650
Internal I/O Ports
Each configuration of the Workstation 6 Series has the following ports under the rear
top cover:
• MICROS Expansion Port
The MICROS expansion port provides connectivity to the system through a
number of industry standards, including Serial (UART), SDIO, USB, and PCIe. A
standard connector and dedicated footprint provide future-proofing of devices such
as wireless modules and storage devices.
• Micro USB 2.0 x3
Chapter 2
Internal I/O Ports
2-2
