Securing the I/O Panel Cover
Securing the I/O panel cover is a common procedure used when setting up any
configuration of the Workstation 6 Series
1. Place the workstation in a position that gives you direct access to the I/O panel. If
on the adjustable stand, tilt the workstation back to angle the I/O ports up.
2. Ensure that all applicable cables are securely connected to the I/O panel.
3. Slide the I/O panel cover firmly into place. Make sure the wires are not clamped by
the cover.

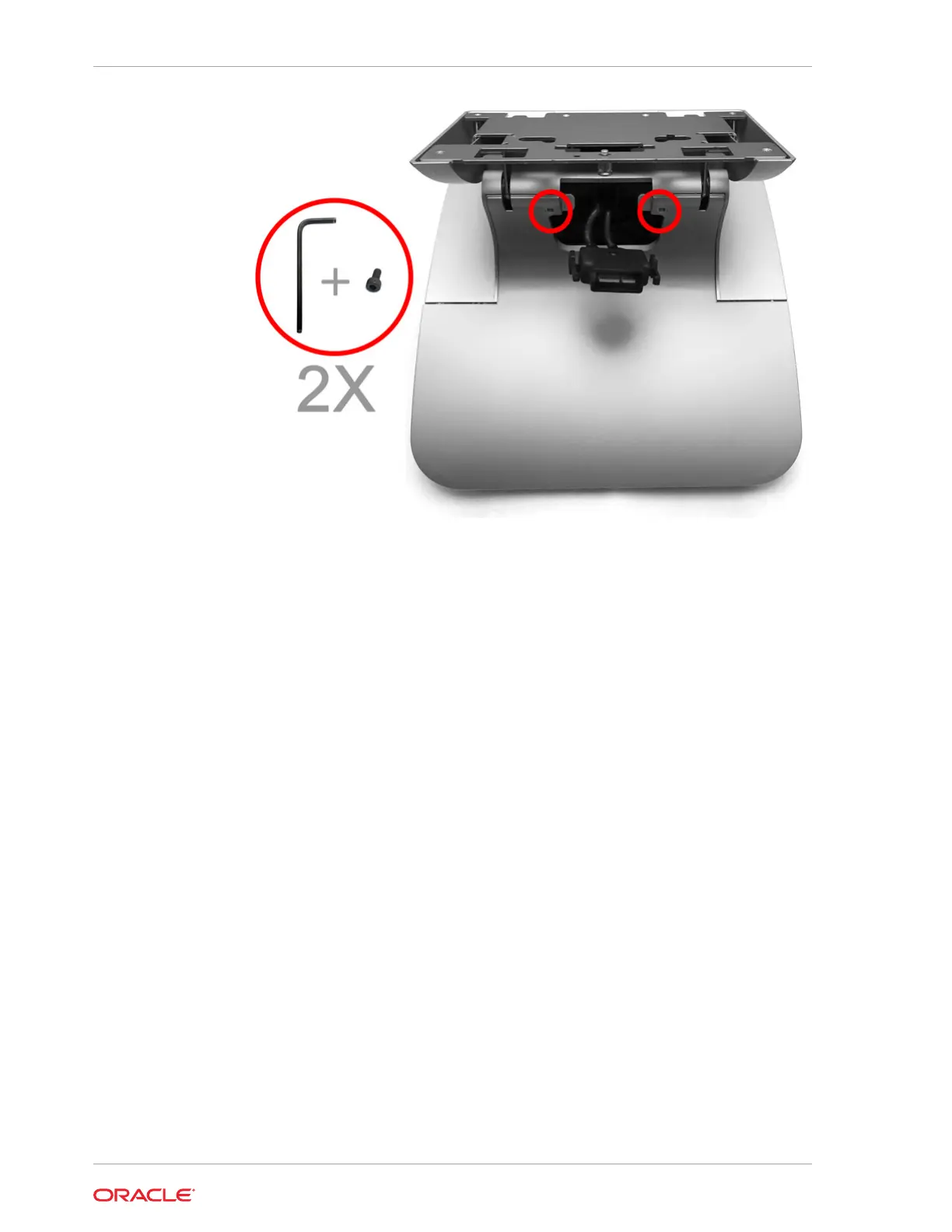

4. Locate and retrieve the hex key and security screw.
5. Use the hex key to tighten the security screw and secure the cover.
Chapter 6
Securing the I/O Panel Cover
6-6
