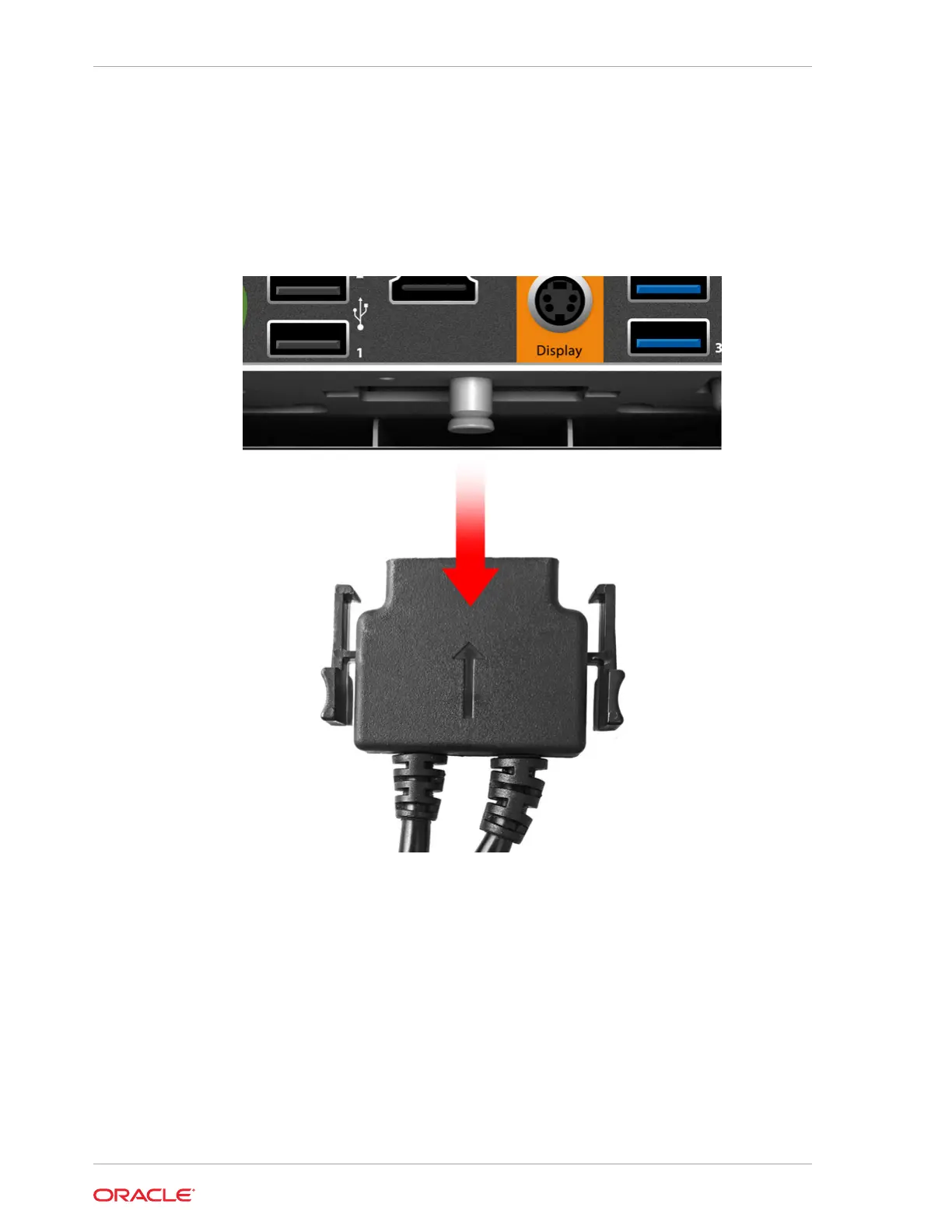

Unmounting the Workstation 6
1.
Disconnect all cables from the I/O ports.
2.
Tilt the workstation head unit back to angle the I/O ports up.
3.
Disconnect the DC power cable.
4.
If you secured the workstation to the adjustable stand using a security screw,
remove the security screw.
Chapter 12
Unmounting the Workstation 6
12-2
81
