Oracle MICROS 6 Series User Manual

11
I/O Panel Connectors and System
Diagrams
This section describes the input/output panel connectors and the system block
diagrams for each configuration of the Workstation 6 Series.
• I/O Panel Connectors
• System Block Diagrams
I/O Panel Connectors
This section depicts the input/output panel connectors.
• IDN RS422/232
• Powered RJ45
• Series 2 Cash Drawer
• Customer Display
IDN RS422/232
You can configure the IDN connector to run in RS422 mode or RS232 mode as shown
in the following table.

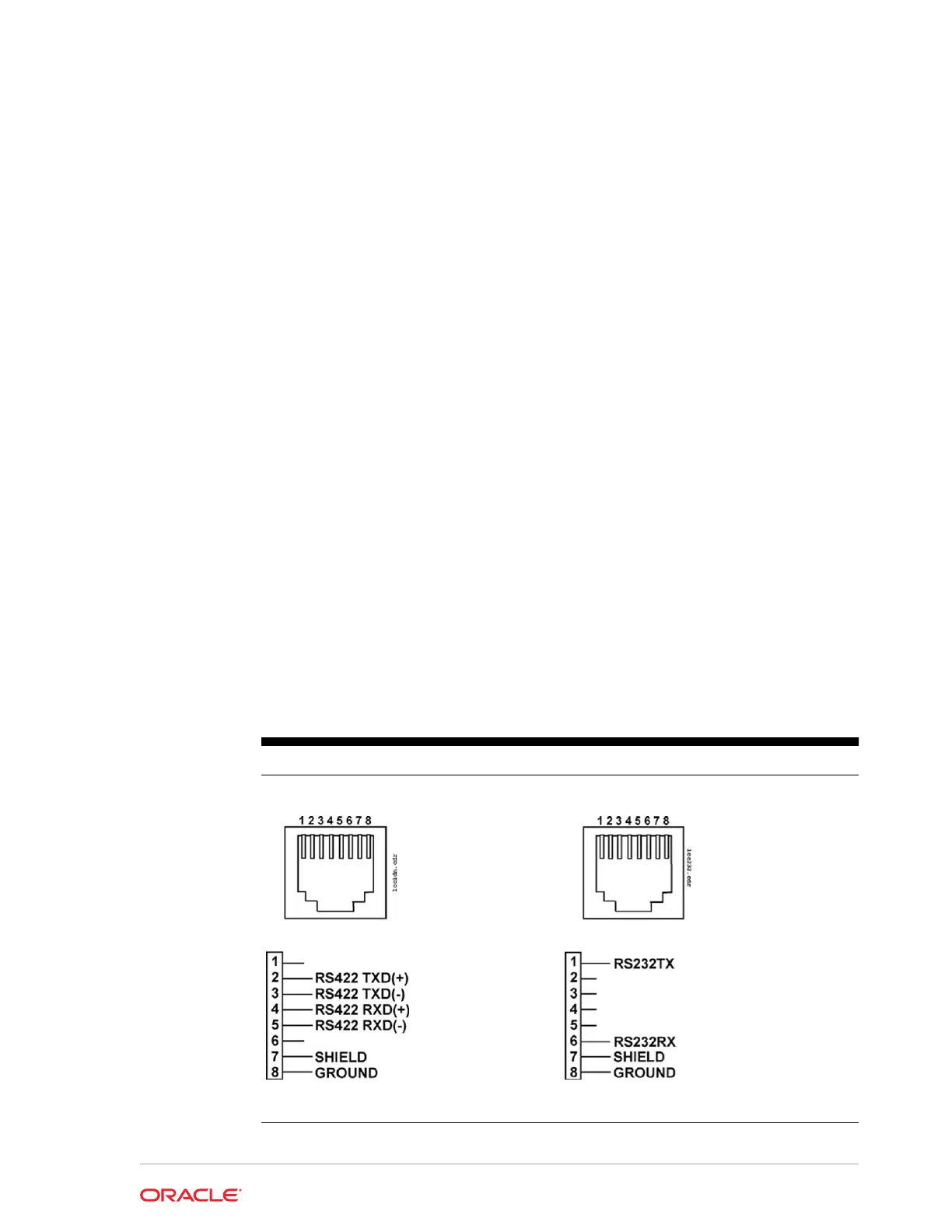

Table 11-1 IDN Pin Reference
RS422 RS232
11-1
