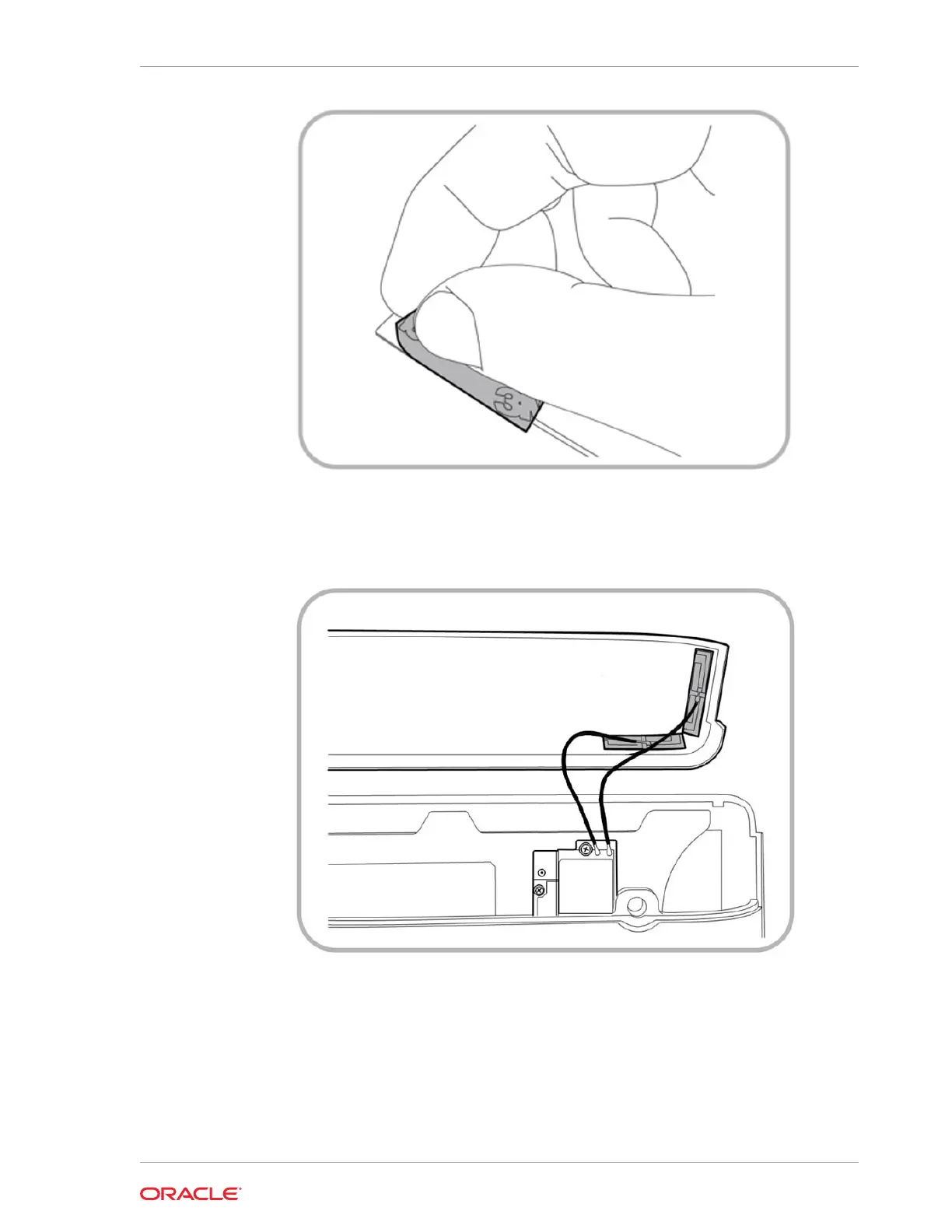

8. Stick the wireless antennas to the top cover positions shown in the following
image, and then connect the wires to the wireless module. The antenna wires can
be oriented as needed.
9. Replace the top cover and use the hex wrench to secure it. Ensure the cover does
not pinch the antenna wires or speaker wires.
Installing the Power USB Module
The Workstation 6 Series supports an optional power USB module. The hex key is
required for installation.
Chapter 6
Installing the Power USB Module
6-27
