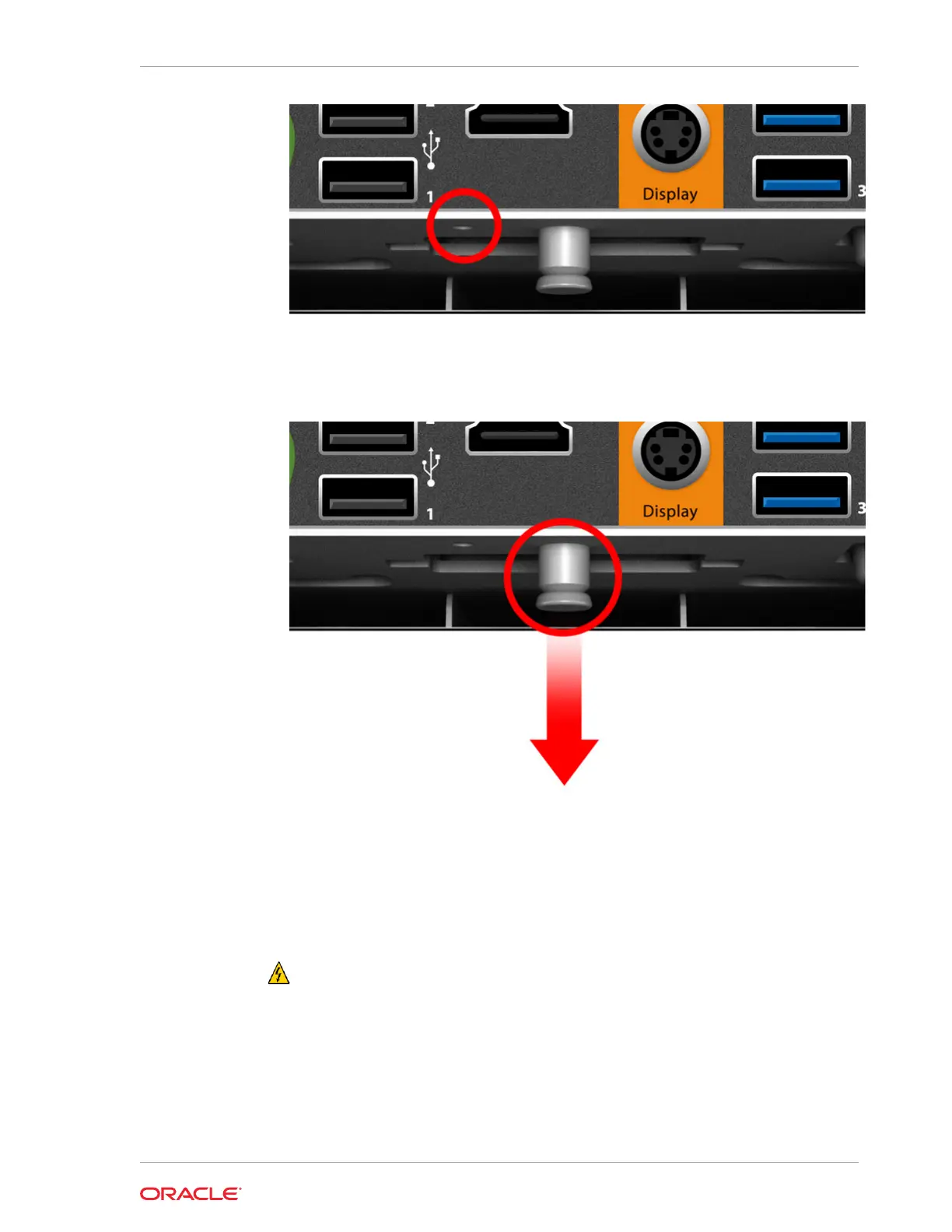

5. Pull down the quick release pin, and then gently push the workstation head unit.
6. Slide the workstation head unit all the way back, and then lift to unmount.
Disassembling the Workstation
Caution: The workstation’s Power Supply Unit (PSU) contains a permanently-
connected fuse in the neutral line. After a fuse operation, parts of the PSU
remain energized and present a shock hazard as long as the AC power cord is
connected. Always disconnect the AC power cord before opening the unit for
service or configuration.
To disassemble the unit to access the system board and peripheral components:
1. Remove all cables from the I/O Panel, including the DC power cable.
Chapter 12
Disassembling the Workstation
12-3
