**Wall mount installation methods include:
• Basic Wall Mounting (shown in steps 1–7): The wall mount bracket is
attached to the surface of the wall. Cables and power supplies are exposed
and can be organized using cable ties and cable casing.
• Recessed/In-Wall Cage with Cable Management and Concealed Power
Supply Storage: A portion of the wall is cut away and a recessed support
cage provides a hidden area for cable organization and power supply storage.
The wall mount bracket is then attached to the wall over the recessed area.
Exposed cables can be organized using cable casing.

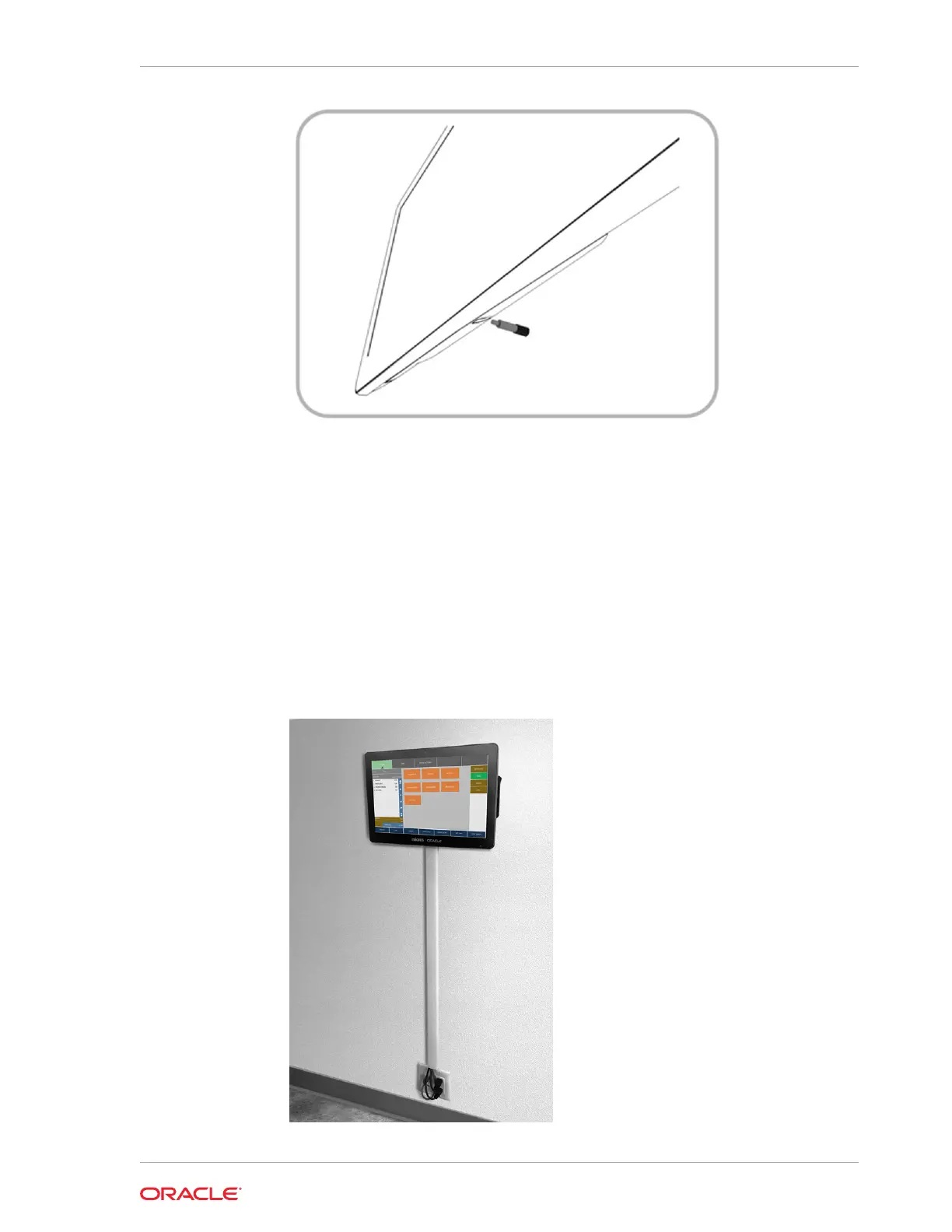

Example Wall-Mounted Workstation (Recessed/In-Wall Cage)
Chapter 6
Securing the Workstation Display to the Wall Mount
6-17
