5.

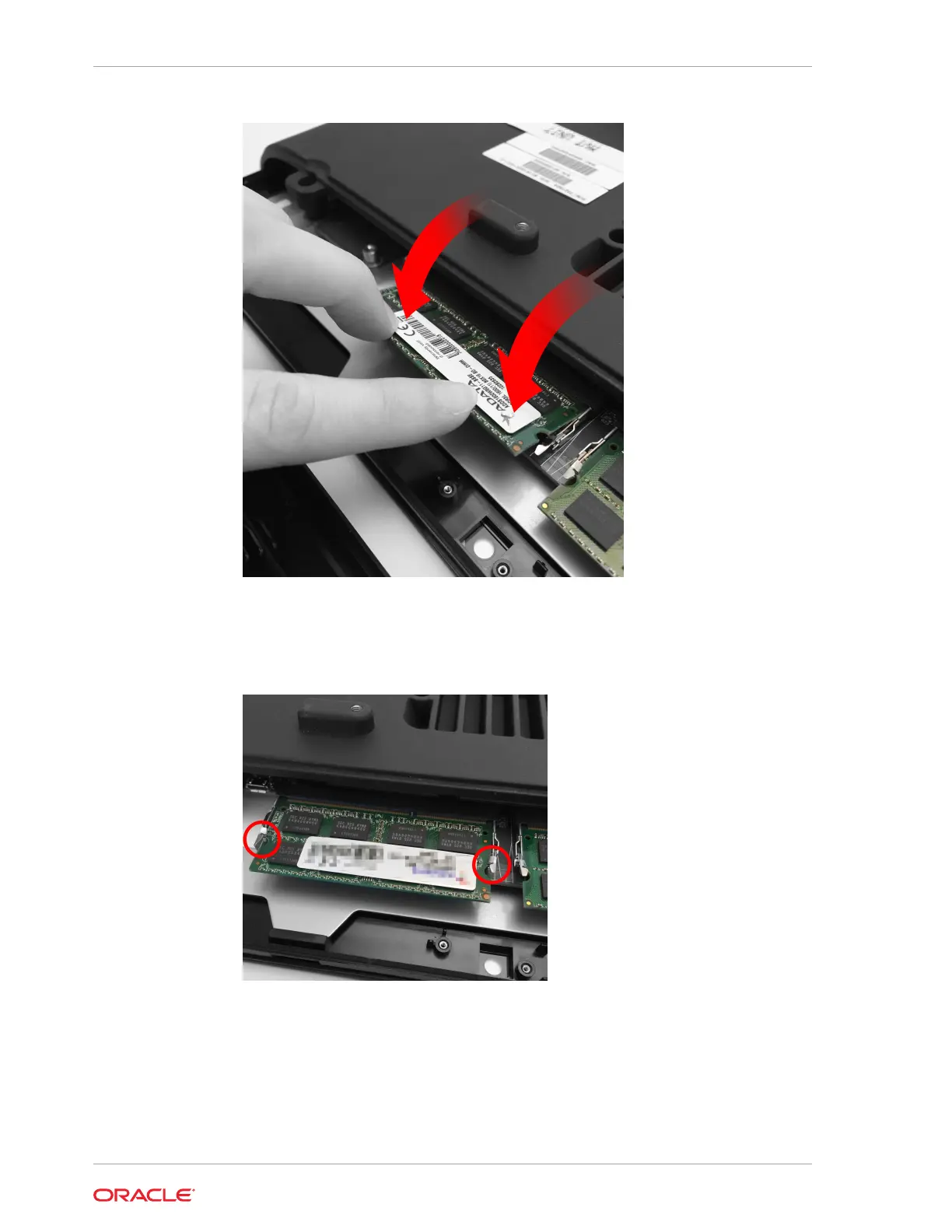

To remove a memory module, simultaneously pull both retaining clips away from
the module to release it, and then pull the module from the expansion slot. The
following image shows the location of the retaining clips.
6.
Reinstall the top cover.
Chapter 6
Installing Memory Modules
6-36
57
59
Table of Contents
Default Chapter
3
Table of Contents
3
Audience
7
Admonitions
7
Customer Support
8
Documentation
8
Revision History
8
2 The Workstation 6 Series
10
Identifying Your Workstation Primary I/O Ports Internal I/O Ports Adjustable Stand
10
Identifying Your Workstation
10
3 Technical Specifications
15
4 Power Management States
18
Power Management State Changes Power Considerations for Peripheral Devices
18
Power Management State Changes
18
5 Software Components
20
Microsoft Windows Embedded 8.1 Industry Pro Retail Operating System
20
Microsoft Windows 10 Iot Enterprise Operating System
20
Oracle Linux for MICROS Operating System
21
Oracle Linux for MICROS Commands
21
Workstation 6 Platform
22
6 Workstation Setup
23
Removing the Adjustable Stand Cover
23
Locating the Hex Key and Security Screws
25
Securing the Adjustable Stand Cover
26
Securing the I/O Panel Cover
28
Securing the Workstation to the Adjustable Stand
29
Attaching the Epson PS-180 Power Supply to the Adjustable Stand
31
Securing the Workstation Display to the Wall Mount
36
Securing the Workstation Display to a VESA Mount
40
Securing the Adjustable Stand to a Counter
40
Installing the High-Mount Customer Display on the Adjustable Stand
42
Installing the 10-Inch Customer Display with High Mount on the Workstation 6 Series Adjustable Stand
43
Installing the 10-Inch Customer Display with Pole Mount
44
Calibrating the Workstation and 10-Inch Customer Display
44
Installing the Wireless Networking Module
45
Installing the Power USB Module
49
Installing the Biometric Fingerprint Module
52
Installing Memory Modules
55
Installing the NIST Label
59
7 Workstation Accessibility Features
60
8 Diagnostics Utility
63
Starting the Workstation 6 Diagnostics Utility
63
Viewing System Information
63
Testing the LCD Display
64
Testing the Integrated Magnetic Stripe Reader
65
Testing the Encrypted Magnetic Stripe Reader
65
Testing the Customer Display
65
Testing the Cash Drawers
65
Performing an RS232 Loopback Test
66
Testing an RS232 Printer
66
Performing an IDN Loopback Test
66
Testing an IDN Printer
66
Viewing Diagnostics Reports for Devices on COM Ports
67
Viewing Hardware Controls
67
Viewing Diagnostics Reports for I2C Devices
67
9 BIOS Configuration
68
Starting the BIOS System Configuration Utility
68
Viewing System Information
68
Configuring System Security Settings
69
Configuring the Boot Priority for Devices
70
Exiting the BIOS Configuration Utility
70
Other Advanced BIOS Configurations
71
10 Equipment Dimensions
73
Dimensions for the Workstation 6 with Adjustable Stand
74
10-Inch Customer Display with Pole Mount Dimensions
75
Wall Mount Dimensions
75
I/O Panel Connectors and System Diagrams
77
I/O Panel Connectors
77
Idn Rs422/232
77
Powered RJ45
78
Customer Display
79
System Block Diagrams
79
620 And 650 Configurations
80
12 Troubleshooting
81
Basic Troubleshooting
81
Disassembling the Workstation Reassembling the Workstation System Recovery
81
Unmounting the Workstation 6
82
Performing a System Recovery for Microsoft Windows 8
89
Performing a System Recovery for Microsoft Windows 10
89
Performing a Factory Reset from BIOS (Oracle Linux for MICROS)
90
Performing a Factory Reset Using the Recovery Button
90
13 Safety and Handling
92
Safety Agency Compliance Statements
92
Safety Precautions
92
Modifications to Equipment
93
Placement of an Oracle Product
93
SELV Compliance
93
Power Cord Connection
93
Battery Warning
94
System Unit Cover
94
Care and Handling
94
Equipment Placement
95
Electromagnetic Interference
95
Cleaning
95
14 Documentation Videos
96
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Oracle MICROS 6 Series and is the answer not in the manual?
Ask a question
Oracle MICROS 6 Series Specifications
General
Brand
Oracle
Model
MICROS 6 Series
Category
Desktop
Language
English
