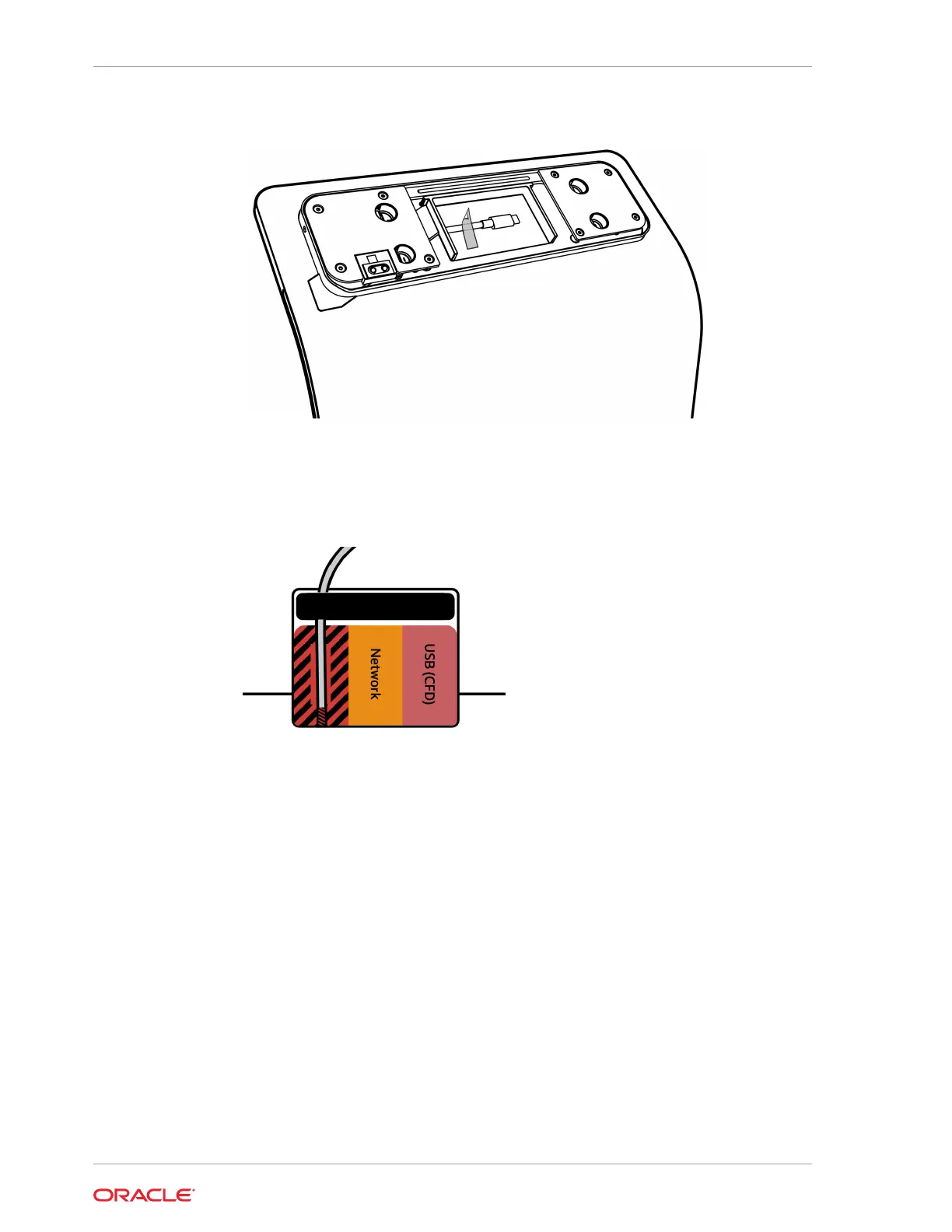

Figure 4-8 Removing tape from the system cable
6. Connect the system cable to the Power In port on the Workstation 820.
Figure 4-9 Connecting the system cable to the Workstation 820 Power In
port
7. Insert the Workstation 820 into the four openings on the Vertical Stand mounting
plate until it clicks into place, and then use the Oracle 2.5mm hex key or
equivalent to lock the assembly(optional).
Chapter 4
Mounting the Workstation 820 on the Vertical Stand
4-6
