Workstation 6 Set Up 21

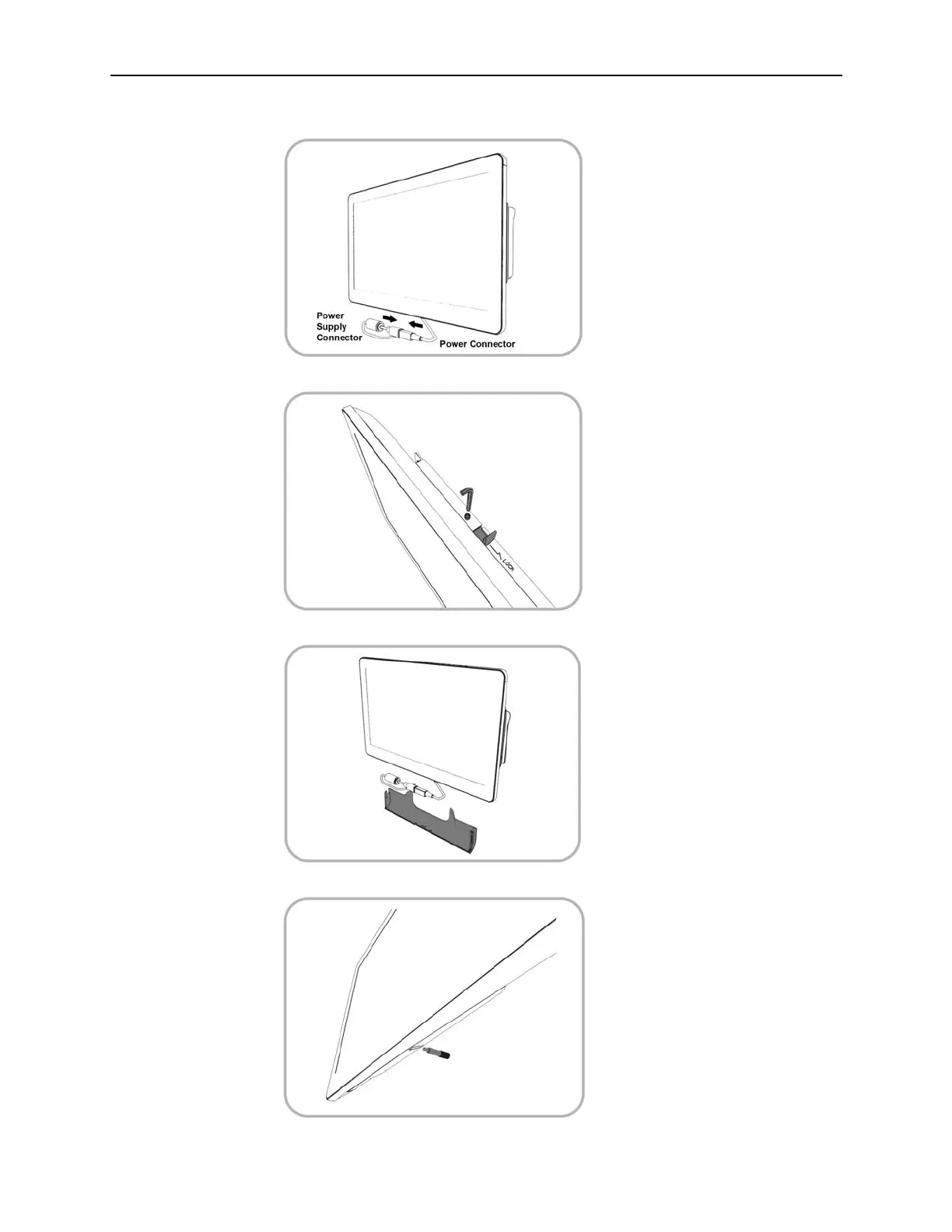

4. Connect the power supply connector to the power connector.

5. Slide the locking level to the right, and then tighten the screw with the hex key.

6. Conceal the cables with the cable casing.

7. Secure the cable cover with the thumb screw provided.
