Troubleshooting 37

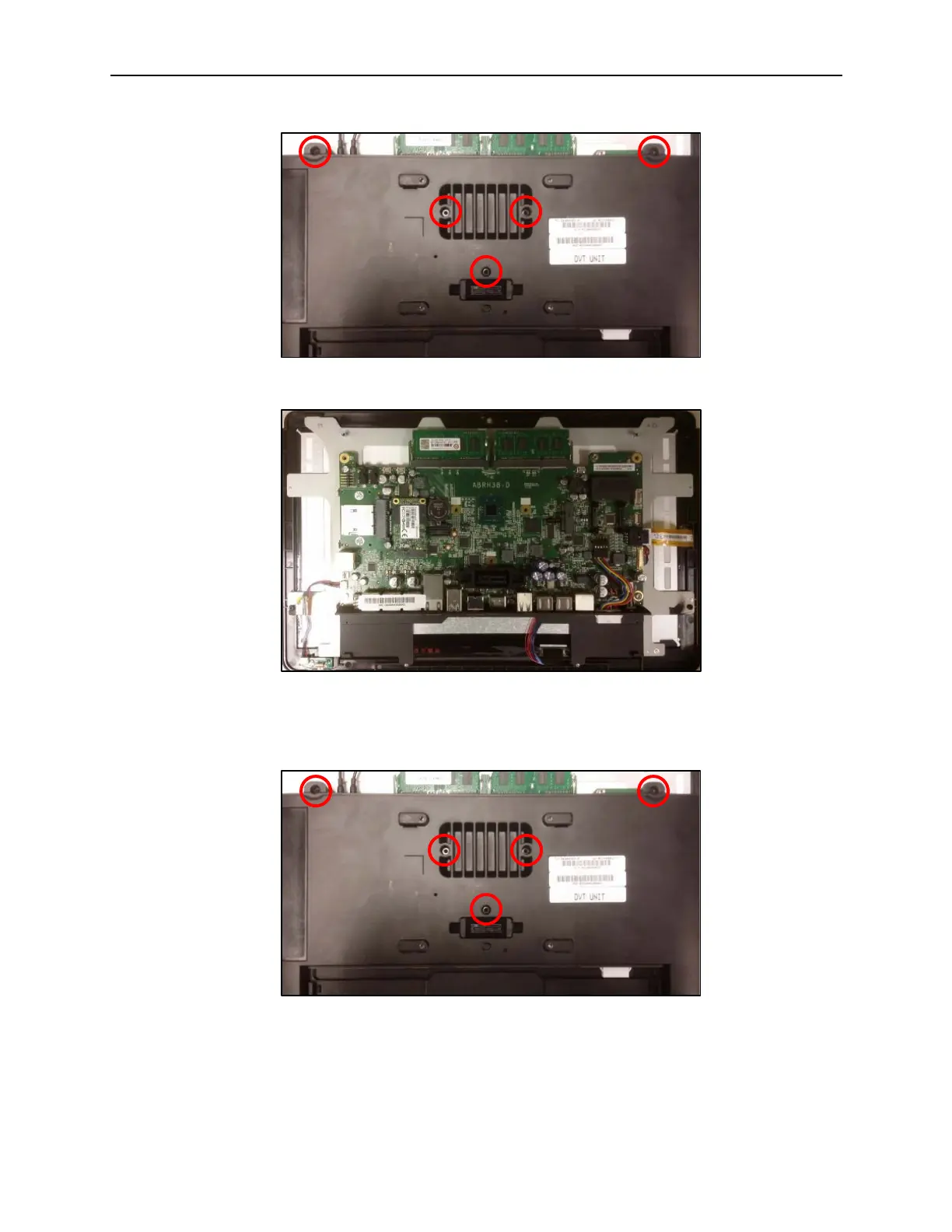

8. Loosen the five captive screws from the back of the unit.
9. Gently push the rear cover away from the power button.
10. Gently lift the rear cover.
Reassembling the Workstation 6
1. Place the rear cover over the system board and slide it toward the power button.
2. Tighten the screws to secure the rear cover.
3. Connect the RFID tag and the 8-pin modular cable for the magnetic stripe reader.
The RFID tag is factory-programmed with information specific to the
