Oracle MICROS Workstation 6 User Manual

Name: Oracle MICROS Workstation 6
Brand: Oracle
Rating: 5 (1 reviews)

52 pages

To Next Page

To Previous Page

30 Technical Information

Technical Information

I/O Panel Connectors

IDN RS422/232

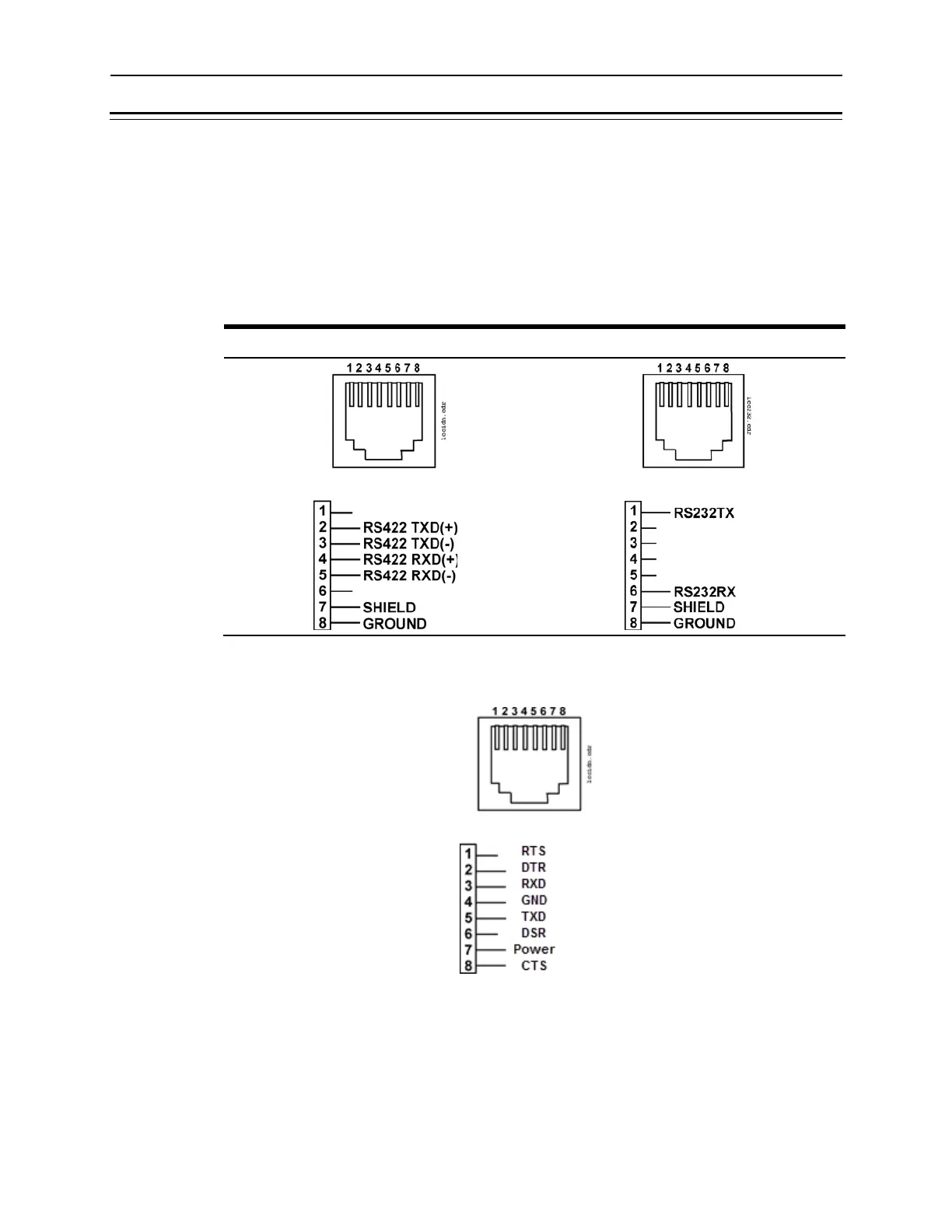

The IDN connector can be configured to run in RS422 mode or RS232 mode as shown in

the following table:

Table 5 - IDN Pin Reference

RS422 RS232

Powered RJ45

The powered RJ45 connector contains the following pins:

Figure 4 - Powered RJ45 Pin Reference
