20 Workstation 6 Set Up

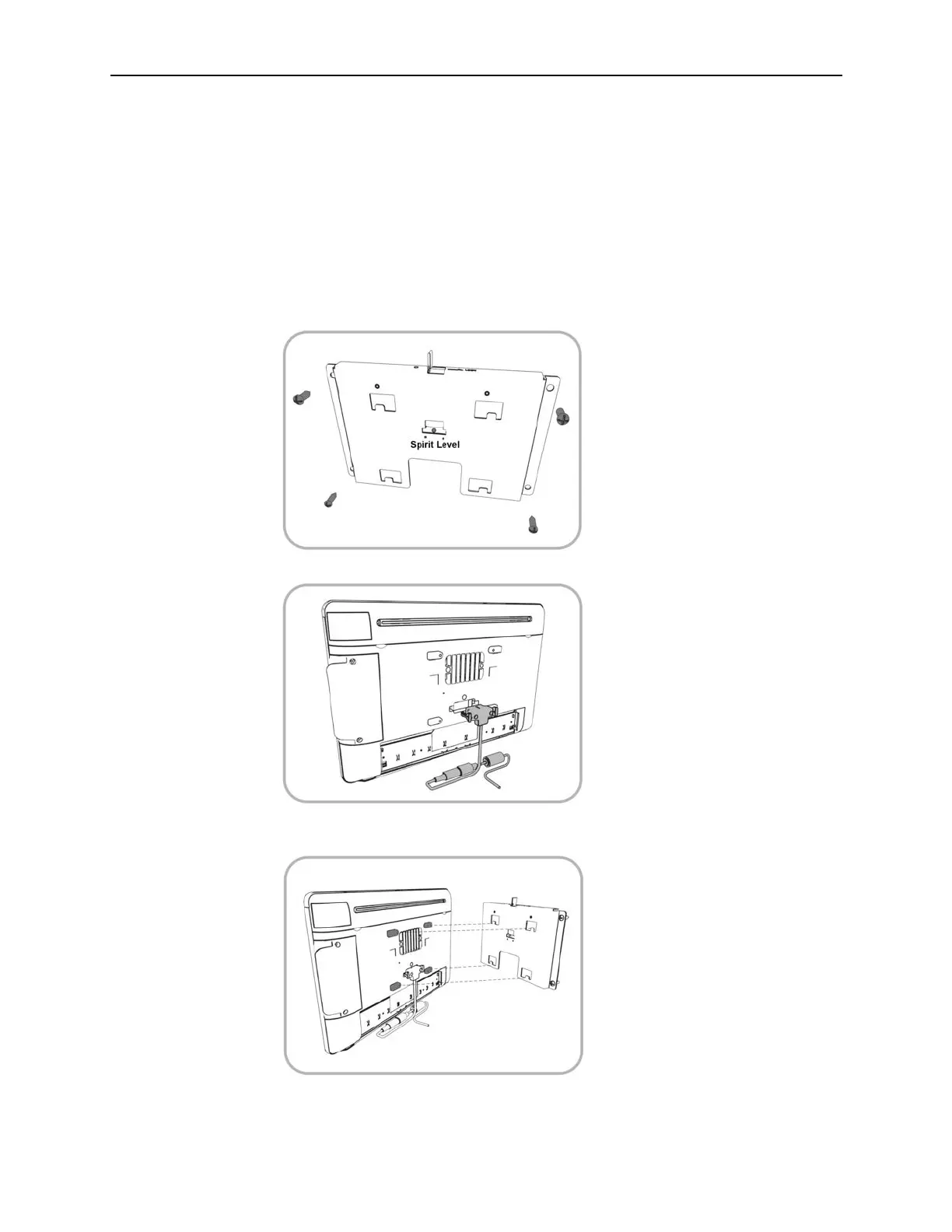

Securing the Workstation Display to the Wall Mount
The Workstation 6 supports an optional wall mounting bracket for the workstation
display.
1. Install the Wall Mount.
a. Ensure that the metal bracket is levelled with the integrated spirit level.
b. Mark the positions of the holes at the 4 corners.
c. Create the holes by drilling into the wall.
d. Secure the metal bracket to the wall with the 4 screws provided with the
mount.
2. Insert the power connector to the back of the Workstation display.
3. Align the back of the workstation display to the metal bracket, and then slide it
down until it stops.
