Technical Inf
ormation
33
System Block
D
iagram
Figure
7 -
System Block Diagram
32
34
Table of Contents
Table of Contents
3
Contents
3
Tables
6
Figures
7
Preface
8
Audience
8
Admonitions
8
Customer Support
8
Documentation
9
Revision History
9
Introduction to the Workstation 6
10
Power Management
10
Power Management State Changes
11
Table 1 - Power Management State Changes
11
I/O Ports
12
Primary I/O Ports
12
Figure 1 - Workstation 6 Primary I/O Panel
12
Option and MICROS Ports
13
Adjustable Stand
13
Printer Power Supply Storage
13
Figure 2 - Option I/O Ports
13
Figure 3 -MICROS Port
13
Expansion Module Location
14
Software Components
14
Microsoft Windows Embedded 8.1 Industry Pro Retail
14
Workstation 6 Platform
14
Workstation 6 Set up
15
Removing the Adjustable Stand Cover
15
Locating the Hex Key and Security Screws
15
Securing the Workstation 6 to the Adjustable Stand
16
Installing the Wireless Networking Module
18
Securing the Workstation Display to the Wall Mount
20
Workstation 6 Utilities and Configurations
22
Diagnostics Utility
22
Starting the Workstation 6 Diagnostics Utility
22
Viewing System Information
22
Table 2 - Diagnostics: System Information
22
Testing the LCD Display
23
Testing the Integrated Magnetic Stripe Reader
23
Testing the Encrypted Magnetic Stripe Reader
23
Testing the Customer Display
24
Testing the Cash Drawers
24
Performing an RS232 Loopback Test
24
Testing an RS232 Printer
24
Performing an IDN Loopback Test
24
Testing an IDN Printer
25
Viewing Diagnostics Reports for Devices on COM Ports
25
Configuring Voltage for USB Ports
25
Viewing Diagnostics Reports for I2C Devices
25
BIOS Configuration
26
Starting the BIOS System Configuration Utility
26
Viewing System Information
26
Configuring System Security Settings
26
Table 3 - BIOS Security Settings
26
Configuring the Boot Priority for Devices
28
Exiting the BIOS Configuration Utility
28
Other Advanced BIOS Configurations
28
Table 4 - Advanced BIOS Security Settings
28
Technical Information
30
I/O Panel Connectors
30
Idn Rs422/232
30
Powered RJ45
30
Table 5 - IDN Pin Reference
30
Figure 4 - Powered RJ45 Pin Reference
30
Series 2 Cash Drawer
31
Customer Display
31
System Board Removable Components
31
Table 6 - Series 2 Cash Drawer Pin and Signal Reference
31
Figure 5 - Series 2 Cash Drawer Pin Reference
31
Figure 6 - Customer Display Pin Reference
31
System Block Diagram
33

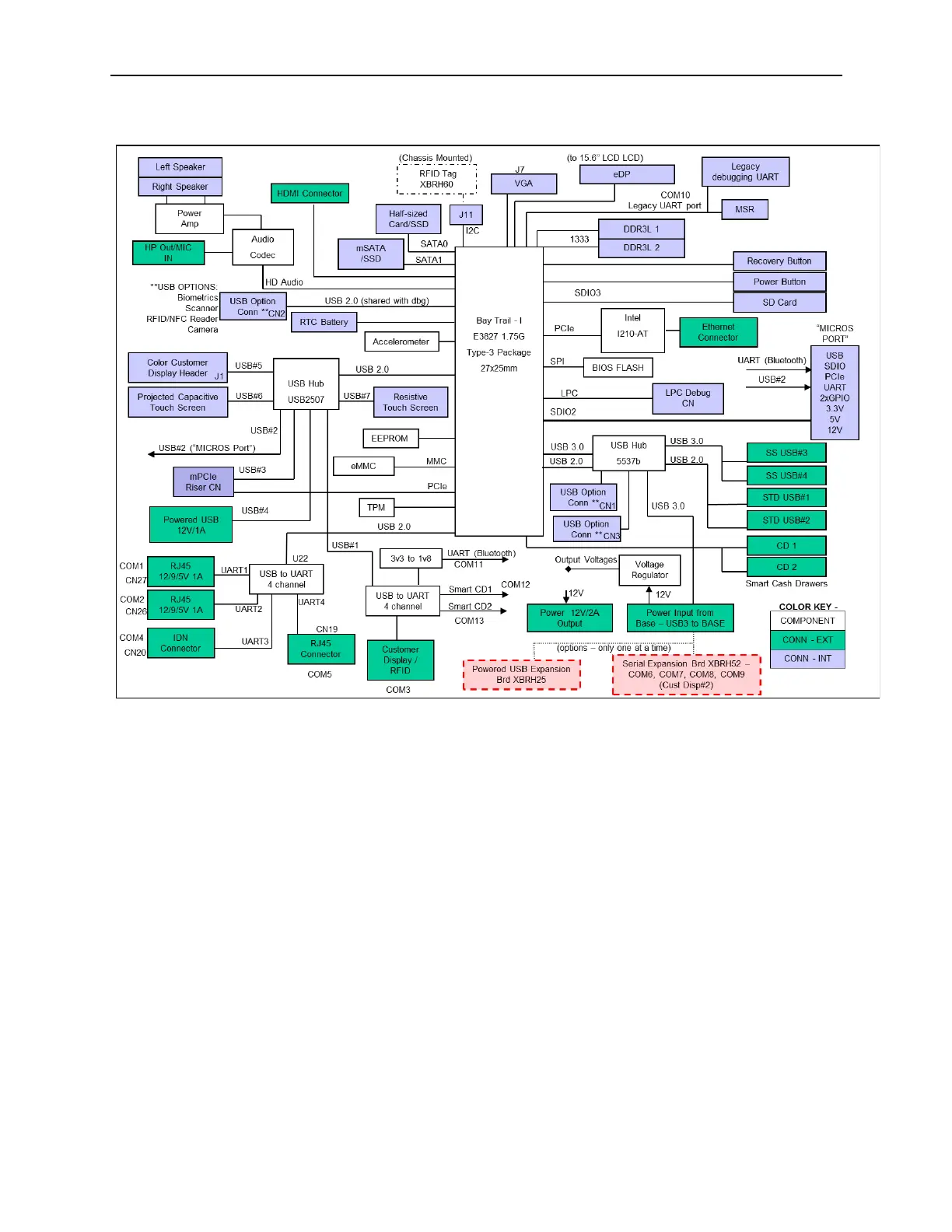

Figure 7 - System Block Diagram
33
Troubleshooting
34
Basic Troubleshooting
34
Table 7 - Basic Troubleshooting
34
Unmounting the Workstation 6
35
Disassembling the Workstation 6
36
Reassembling the Workstation 6
37
System Recovery
39
Microsoft Windows
39
Bios
39
Figure 8 - System Recovery Workflow
39
Recovery Button
40
Product Specifications
41
Technical Specifications
41
Table 8 - Workstation 6 Technical Specifications
41
Equipment Dimensions
43
Figure 9 - Dimensions (Front)
43
Figure 10 - Dimensions (Back)
43
Power Considerations for Peripheral Devices
44
Table 9 - Port Power Specifications
44
Figure 11 - Dimensions (Side)
44
Safety and Handling
45
Safety Agency Compliance Statements
45
Safety Precautions
45
Modifications to Equipment
45
Placement of an Oracle Product
45
SELV Compliance
45
Power Cord Connection
46
Battery Warning
47
System Unit Cover
47
Care and Handling
47
Equipment Placement
47
Electromagnetic Interference
47
Cleaning
48
Certifications
49
Declaration of Conformity
49
Restriction of Hazardous Substances (Rohs)
49
Product Take Back and Recycling
49
Regulatory Compliance Statements
49
FCC Class a Notice
49
FCC Class B Notice
50
ICES-003 Class a Notice - Avis NMB-003, Classe a
50
ICES-003 Class B Notice - Avis NMB-003, Classe B
50
クラス a VCCI 基準について
50
クラス B VCCI 基準について
51
BSMI Class a Notice
51
CCC Class a Notice
51
Korean Class a Notice
51
Korean Class B Notice
51
Shielded Cables
51
Index
52
