3
Removal and Replacement 3-1
3
Remov al and Replacement
Figure 3–1 shows the rear of an SL150 Library where the robot, tape drive(s), power
supplies, and module controller customer replaceable units (CRUs) are located. Most
of the CRU removal activity involves cable disconnection, release of a latch or
loosening of captive screws, and the extraction of the CRU. Certain CRU removal and
replacement activity must be performed when the library is powered down (see
"Other CRUs" on
page 3-11).

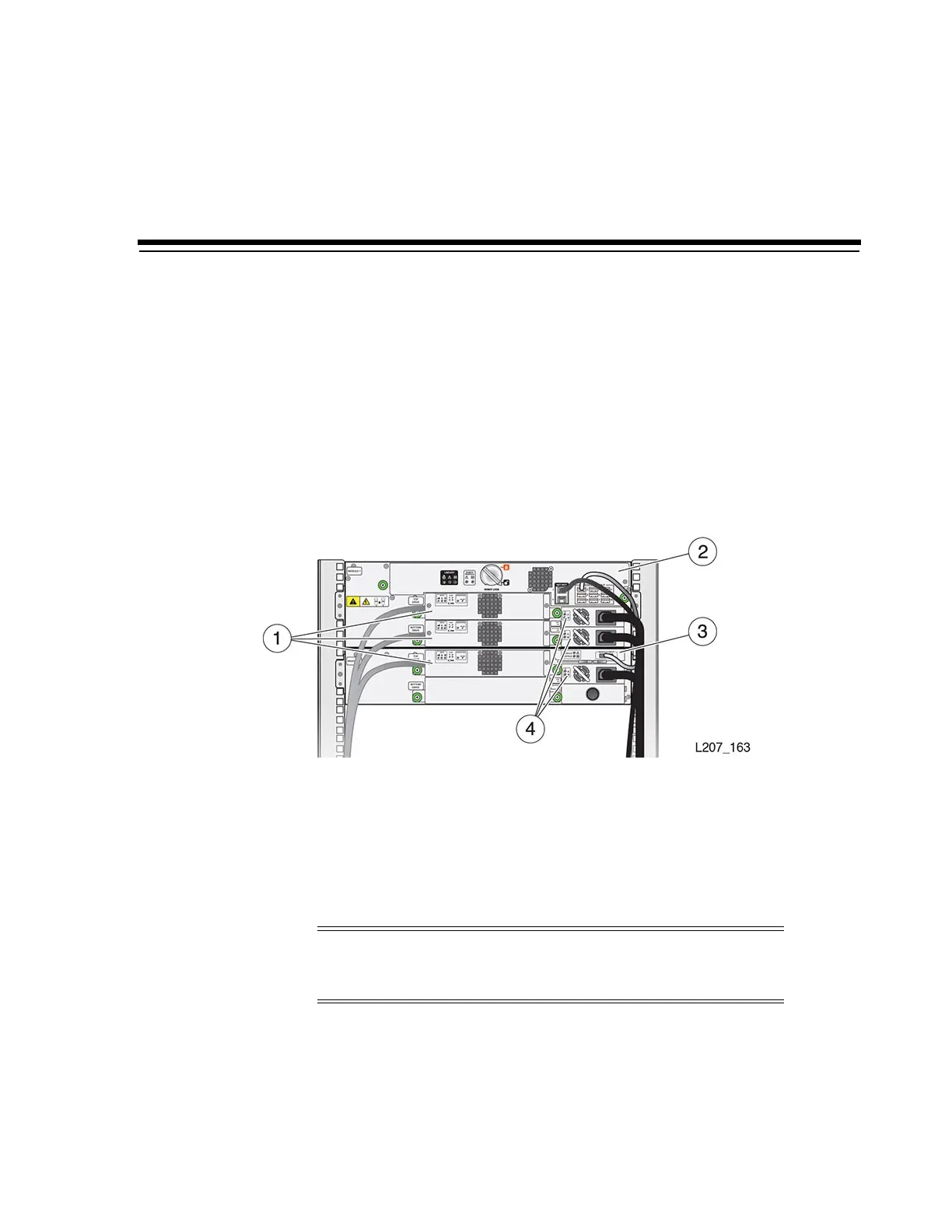

Figure 3–1 CRU Locations (Rear View of SL150 Base and Expansion Module)
Illustration Legend:
1 - Tape Drive Tray
2 - Robot (in the Base Module)
3 - Module Controller (in the Expansion Module)
4 - Power Supply
Warning: Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
Problem Determination
This guide assumes that you have isolated the library problem and have the
replacement part available. However, if you have not determined the problem; use the
troubleshooting information in the user’s guide (
http://docs.oracle.com
)orthe
remote management interface Help (see Figure 2–1).
