Other CRUs
Removal and Replacement 3-27

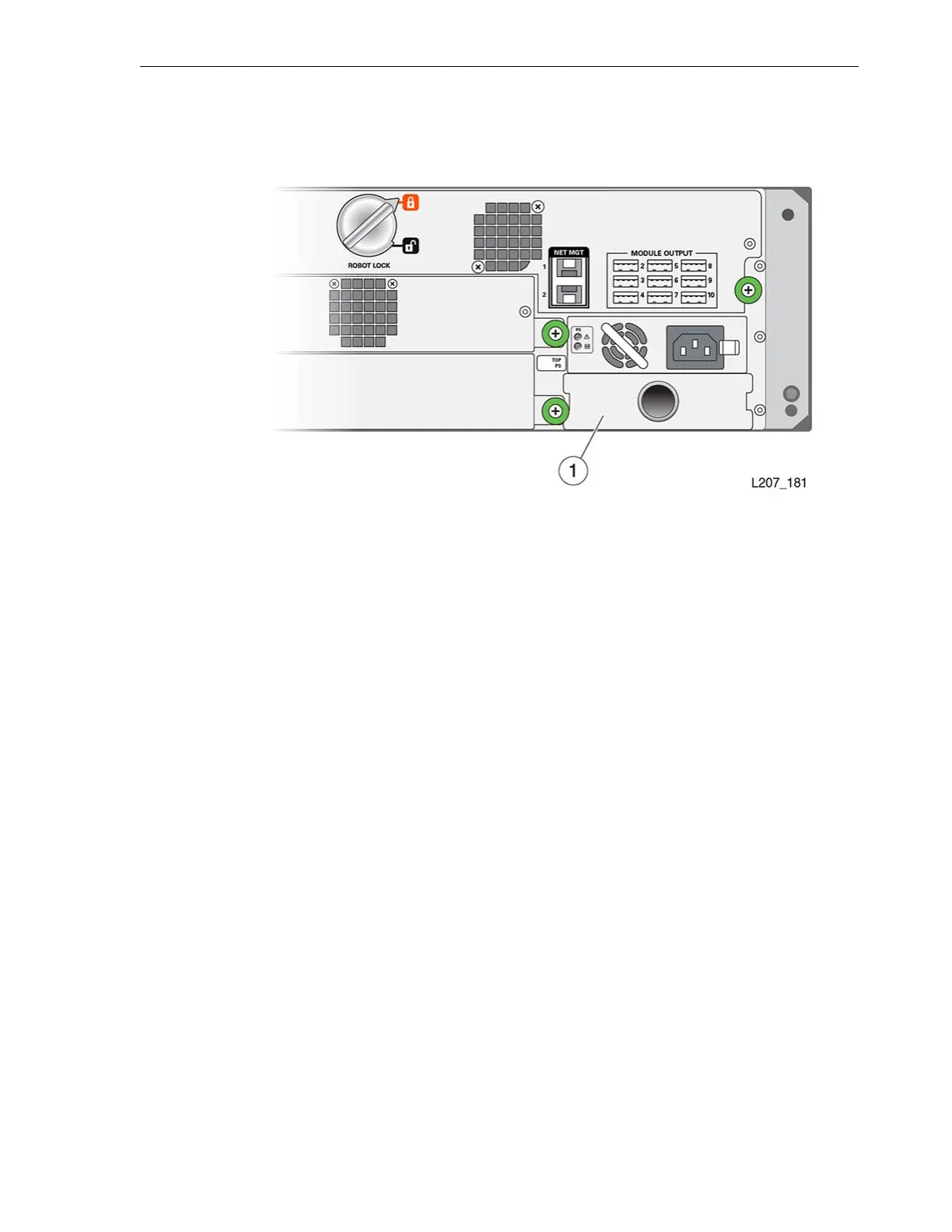

Figure 3–26 Power Supply Filler
Illustration Legend:
1 - Power Supply Filler
To Prepare the Expansion CRU for Replacement
1. Grasp the expansion module chassis by the sides and remove it from the shipping
carton.
2. Determine if the CRU is the bottom library module. If it is not the bottom module,
continue with "To Replace the Expansion CRU Chassis" on page 3-29.
To Install the Floor
1. Turn the module over.
2. Orient the floor so the floor finger holds face the inside of the cartridge magazine
slot.
3. Insert the rear edge of the floor into the grooves at the bottom of the module.
4. Push the floor into the module and engage the rear floor tab with the module slot
(see Figure 3–27).
5. Push the floor fully into the module to seat the floor clip in each magazine slot (see
Figure 3–28).
6. Turn the module over and verify the floor clips properly engage the chassis.
7. Continue with the appropriate procedure: "To Replace the Expansion CRU
Chassis" on page 3-29 or "To Replace the Base Module Chassis" on page 3-33.
